ID no.: CA97555-001 Date: 04/2018
4.5

Effective EMC installation

4.5.1

Interference immunity of Servo Drives

NOTE
This is a restricted availability product in accordance with IEC/EN 61800-3.
This product may cause radio interference in domestic environments; in such
cases the operator may need to take appropriate countermeasures.
External radio frequency interference suppression filters (CB09937-001 to CB09940
001, CB09942-00, for C5 provisional CA71185-001) are available for the Servo Drives.
With the measurement method specified and the exte nal mains filte , these Servo
Drives conform to the EMC product standard IEC/EN 61800-3 for "First environment"
(residential C2) and "Second environment" (industrial C3).
4.5.2

Specimen setup

The specimen setup presented on the following pages is intended to illustrate the key
measures necessary to ensure an effective EMC installation.
NOTE
The specimen setup merely presents a recommendation, and does not
automatically guarantee compliance with applicable EMC directives.
The installer/operator of a machine and/or system must provide proof of
compliance with the protection targets stipulated in the standard.
Overview
Figure 4.5 presents an overview of the minimum components required:
A. Backing plate with cable ducts
B. MSD Single-Axis Servo Drive Compact
Mains filter
C.
D. Mains choke
E. Distributor rail for AC power supply and control supply (+24 V DC)
The layout and cabling are based on the requirements in section 4.1 The numbered red
arrows refer to four very important detailed notes presented on the following pages.
MSD Single-Axis Servo Drive Compact Operation Manual
A
B
C
D
E

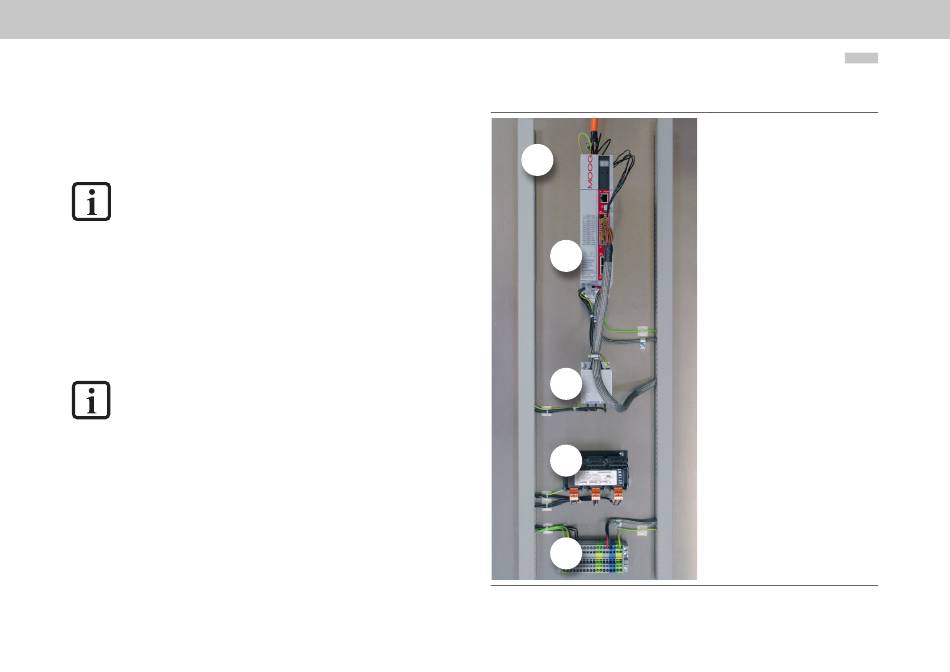

Figure 4.5 Specimen setup - Overview
22
Detail 1
Detail 2
Detail 3
Detail 4
