ID no.: CA97555-001 Date: 04/2018
CAUTION! Damage to the device due to incorrect operation!
• Carelessness may result in damage.
Before the next step "Enable start" you must specify a plausible setpoint, because the pre-set
setpoint is transferred to the drive directly after the motor control has started.
D1 D2 Action
"Start" enabled
Table 5.5 D1/D2 indication during activation of motor
Details for optimising the drive on your application can be found in the Moog
D A help and in the MSD Servo Drive Device Help.
rive DministrAtor
5.3

Serial commissioning

An existing parameter data set can be transferred to other MSD Single-Axis Servo
Drive Compact using Moog D A
rive DministrAtor
Moog D A help.
rive DministrAtor
Reaction Explanation
Motor energised,
Technology ready
control active
5. Details can be found in the
MSD Single-Axis Servo Drive Compact Operation Manual
5.4

Integrated control unit

The built-in control unit permits diagnostics on the MSD Single-Axis Servo Drive
Compact. The control unit comprises the following elements, all located on the front of
the device:
y 2-digit 7-segment display (D1, D2)
y 2 buttons (T1, T2)

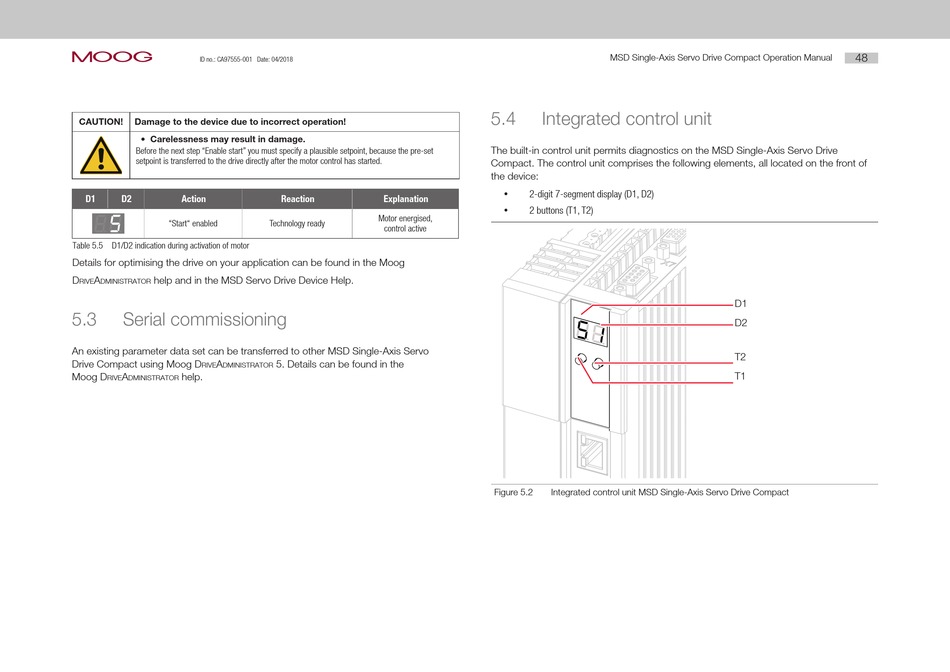

Figure 5.2 Integrated control unit MSD Single-Axis Servo Drive Compact
48
D1
D2
T2
T1
