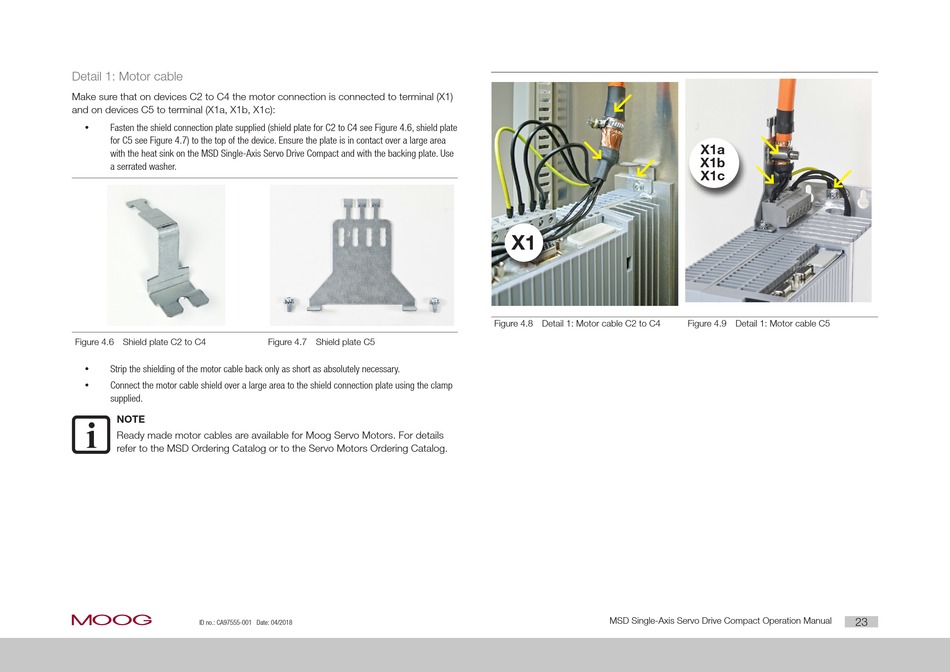

Detail 1: Motor cable
Make sure that on devices C2 to C4 the motor connection is connected to terminal (X1)
and on devices C5 to terminal (X1a, X1b, X1c):
y Fasten the shield connection plate supplied (shield plate for C2 to C4 see Figure 4.6, shield plate
for C5 see Figure 4.7) to the top of the device. Ensure the plate is in contact over a large area
with the heat sink on the MSD Single-Axis Servo Drive Compact and with the backing plate. Use
a serrated washer.
Figure 4.6 Shield plate C2 to C4
y Strip the shielding of the motor cable back only as short as absolutely necessary.
y Connect the motor cable shield over a large area to the shield connection plate using the clamp
supplied.
NOTE
Ready made motor cables are available for Moog Servo Motors. For details
refer to the MSD Ordering Catalog or to the Servo Motors Ordering Catalog.
moog
ID no.: CA97555-001 Date: 04/2018
Figure 4.7 Shield plate C5
X1
Figure 4.8 Detail 1: Motor cable C2 to C4
MSD Single-Axis Servo Drive Compact Operation Manual
X1a
X1b
X1c
Figure 4.9 Detail 1: Motor cable C5
