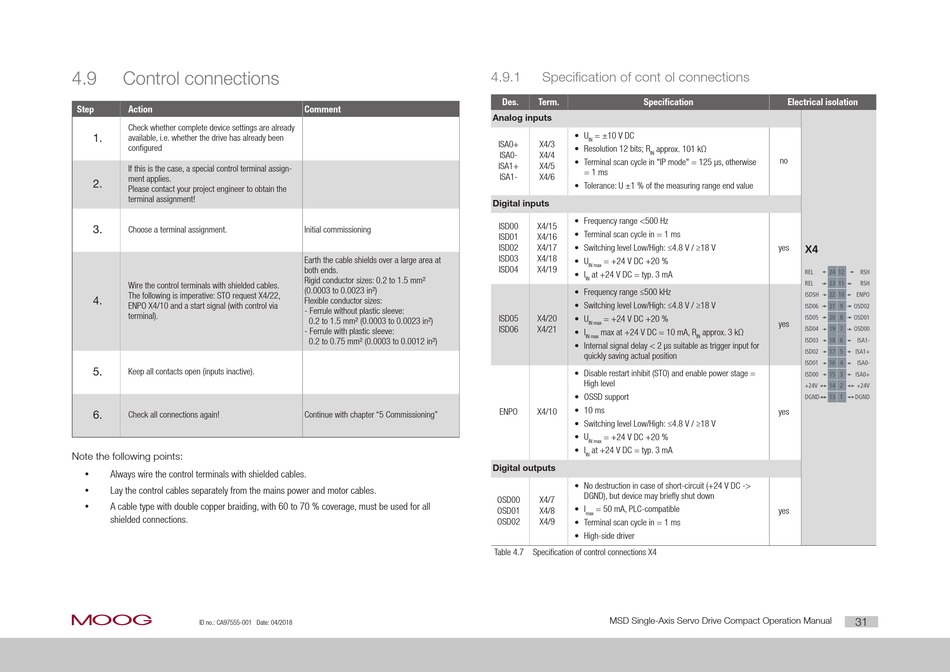

4.9

Control connections

Step
Action
Check whether complete device settings are already
1.
available, i.e. whether the drive has already been
configured
If this is the case, a special control terminal assign-
ment applies.
2.
Please contact your project engineer to obtain the
terminal assignment!
3.
Choose a terminal assignment.
Wire the control terminals with shielded cables.
The following is imperative: STO request X4/22,
4.
ENPO X4/10 and a start signal (with control via
terminal).
5.
Keep all contacts open (inputs inactive).
6.
Check all connections again!
Note the following points:
y
Always wire the control terminals with shielded cables.
y
Lay the control cables separately from the mains power and motor cables.
y
A cable type with double copper braiding, with 60 to 70 % coverage, must be used for all
shielded connections.
moog
ID no.: CA97555-001 Date: 04/2018
Comment
Initial commissioning
Earth the cable shields over a large area at
both ends.
Rigid conductor sizes: 0.2 to 1.5 mm²
(0.0003 to 0.0023 in²)
Flexible conductor sizes:
- Ferrule without plastic sleeve:
0.2 to 1.5 mm² (0.0003 to 0.0023 in²)
- Ferrule with plastic sleeve:
0.2 to 0.75 mm² (0.0003 to 0.0012 in²)
Continue with chapter "5 Commissioning"
4.9.1
Specification of cont ol connections
Des.
Term.
Specification
Analog inputs
• U
= ±10 V DC
IN
ISA0+
X4/3
• Resolution 12 bits; R
approx. 101 kΩ
ISA0-
X4/4
IN
• Terminal scan cycle in "IP mode" = 125 µs, otherwise
ISA1+
X4/5
= 1 ms
ISA1-
X4/6
• Tolerance: U ±1 % of the measuring range end value
Digital inputs
• Frequency range <500 Hz
ISD00
X4/15
• Terminal scan cycle in = 1 ms
ISD01
X4/16
ISD02
X4/17
• Switching level Low/High: ≤4.8 V / ≥18 V
ISD03
X4/18
• U
= +24 V DC +20 %
IN max
ISD04
X4/19
• I
at +24 V DC = typ. 3 mA
IN
• Frequency range ≤500 kHz
• Switching level Low/High: ≤4.8 V / ≥18 V
ISD05
X4/20
• U
= +24 V DC +20 %
IN max
ISD06
X4/21
• I
max at +24 V DC = 10 mA, R
IN max
• Internal signal delay < 2 µs suitable as trigger input for
quickly saving actual position
• Disable restart inhibit (STO) and enable power stage =
High level
• OSSD support
• 10 ms
ENPO
X4/10
• Switching level Low/High: ≤4.8 V / ≥18 V
• U
= +24 V DC +20 %
IN max
• I
at +24 V DC = typ. 3 mA
IN
Digital outputs
• No destruction in case of short-circuit (+24 V DC ->
DGND), but device may briefly shut down
OSD00
X4/7
• I
= 50 mA, PLC-compatible
OSD01
X4/8
max
OSD02
X4/9
• Terminal scan cycle in = 1 ms
• High-side driver
Table 4.7 Specification of control connections X4
MSD Single-Axis Servo Drive Compact Operation Manual
Electrical isolation
no
yes
X4
REL
24
12
RSH
REL
23
11
RSH
ISDSH
22
10
ENPO
ISD06
21
9
OSD02
ISD05
20
8
OSD01
yes
ISD04
19
7
OSD00
approx. 3 kΩ
IN
ISD03
18
6
ISA1-
ISD02
17
5
ISA1+
ISD01
16
4
ISA0-
ISD00
15
3
ISA0+
+24V
14
2
+24V
DGND
13
1
DGND
yes
yes
31
