Moog MSD C2 Operation Manual page 30

moog
ID no.: CA97555-001 Date: 04/2018
Mains supply for C4 devices
NOTE
Before commissioning, the value of the connected mains voltage must be
set on the servo drive (factory setting = 3 x 230 V AC / 3 x 400 V AC).
C4
X2
Mains
3-phase
L3
L2
L1
F1 K1
Mains Mains
X3
choke ÿlter

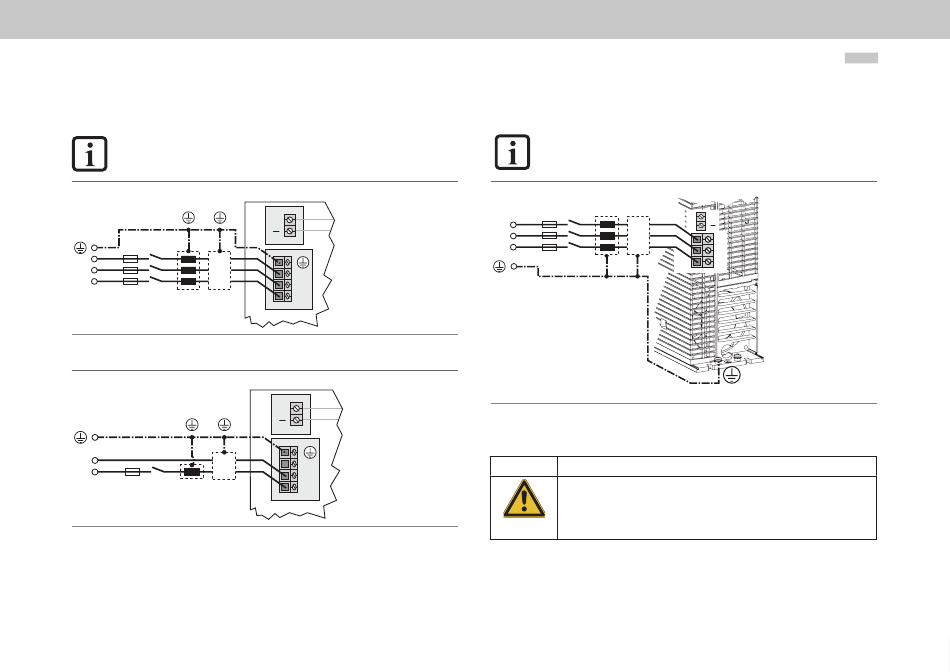

Figure 4.18 Connection of C4 to mains supply 3 x 230 V (G394-080) or 3 x 400 V (G394-065)
depending on device design
C4
Mains
1-phase
N
L1
F1 K1 Mains Mains
choke ÿlter
Figure 4.19 Connection of C4 to mains supply 1 x 230 V (G394-080)
+
L3
L2
L1
X2
+
L3
L2
L1
X3
MSD Single-Axis Servo Drive Compact Operation Manual
Mains supply for C5 devices
NOTE:
Before commissioning, the value of the connected mains voltage must be
set on the servo drive (factory setting = 3 x 400 V AC).
Mains
Mains Mains
3-phase F1 K1
choke ÿlter
L3
L2
L1
Figure 4.20 Connection of C5 to mains supply 3 x 400 V (G394-120, G394-160) depending on
device design
CAUTION! Shutdown of the pre-charging!
To protect the servo drive from thermal overload, make sure that the pre-charging of the DC
link is not switched on for more than 2 minutes without the main contactor is active.
The pre-charging of the DC link is not designed for high power consumption during the
operation.
Ignoring of this rule may destroy the device!
+
X2
L3
L2
L1
X3
