Operating Instructions
Attachments for Battery Reamer/Drill II
Instrument
530.705 Battery Reamer/Drill II
Precaution: To prevent injuries, the mode switch of
the drive unit should always be in the "OFF" posi-
tion when inserting or removing attachments and
cutting tools.
Please observe the safety instructions and warnings
stated in the instructions when working with attach-
ments. Only use original Synthes attachments.
Damage resulting from the use of attachments from
other manufacturers is not covered by the warranty.

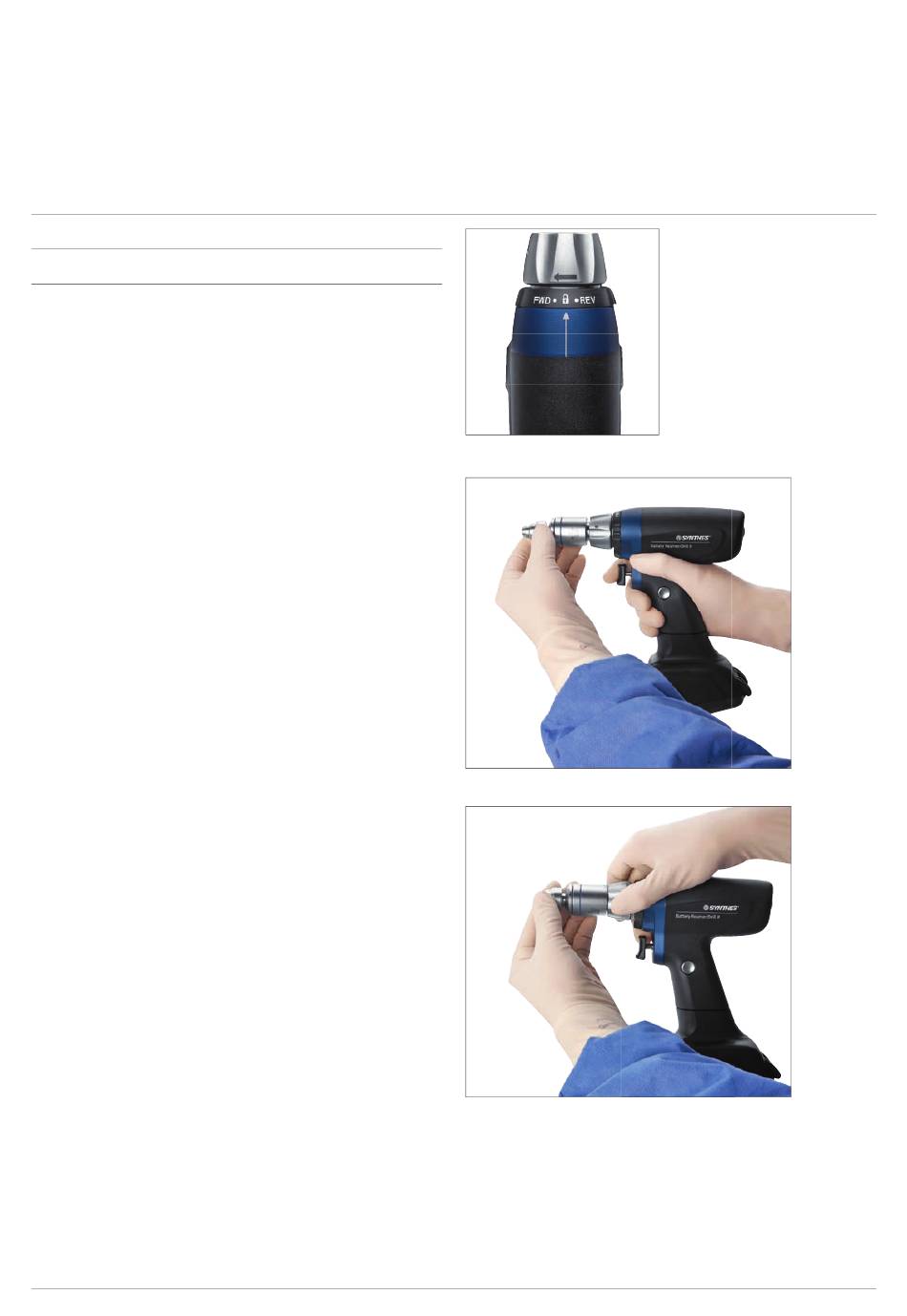

Insert attachment

Insert the attachment into the coupling of the Battery
Reamer/Drill II, aligning the positioning pins of the at-
tachment with the grooves on the attachment release
ring (Fig. 1).
Turn the attachment release ring in the direction of the
arrow and push the attachment until it engages in place
(Fig. 2). If the attachment does not engage properly then
rotate the attachment gently until the drive shaft en-
gages.
Check that the attachment coupling is closed properly by
lightly pulling the attachment.

Remove attachment

Turn the attachment release ring in the direction of the
arrow and remove the attachment.
Note: Properly functioning tools are essential to the
success of an operation. For this reason, used tools
must be checked for wear and/or damage after each
use and replaced if necessary.
Figure 1
Figure 2
