Introduction
Universal Battery Charger II
The Universal Battery Charger II (05.001.204) includes
four independent charging bays. Each charging bay has
three slots; the Battery Power Line II battery (530.630)
fits into the top slot.
Note: In order that the BPL II battery can be recog-
nized and charged by the UBC II, a minimum of
firmware version 14.0* is required. If necessary,
send the charger to a Synthes representative for a
firmware update.
For further information on the Universal Battery
Charger II please consult the relevant Instructions for Use
(DSEM/PWT/1114/0050) or contact your local Synthes
office.
The BPL II battery cannot be charged with the Universal
Battery Charger (item number 530.600 or 530.601).

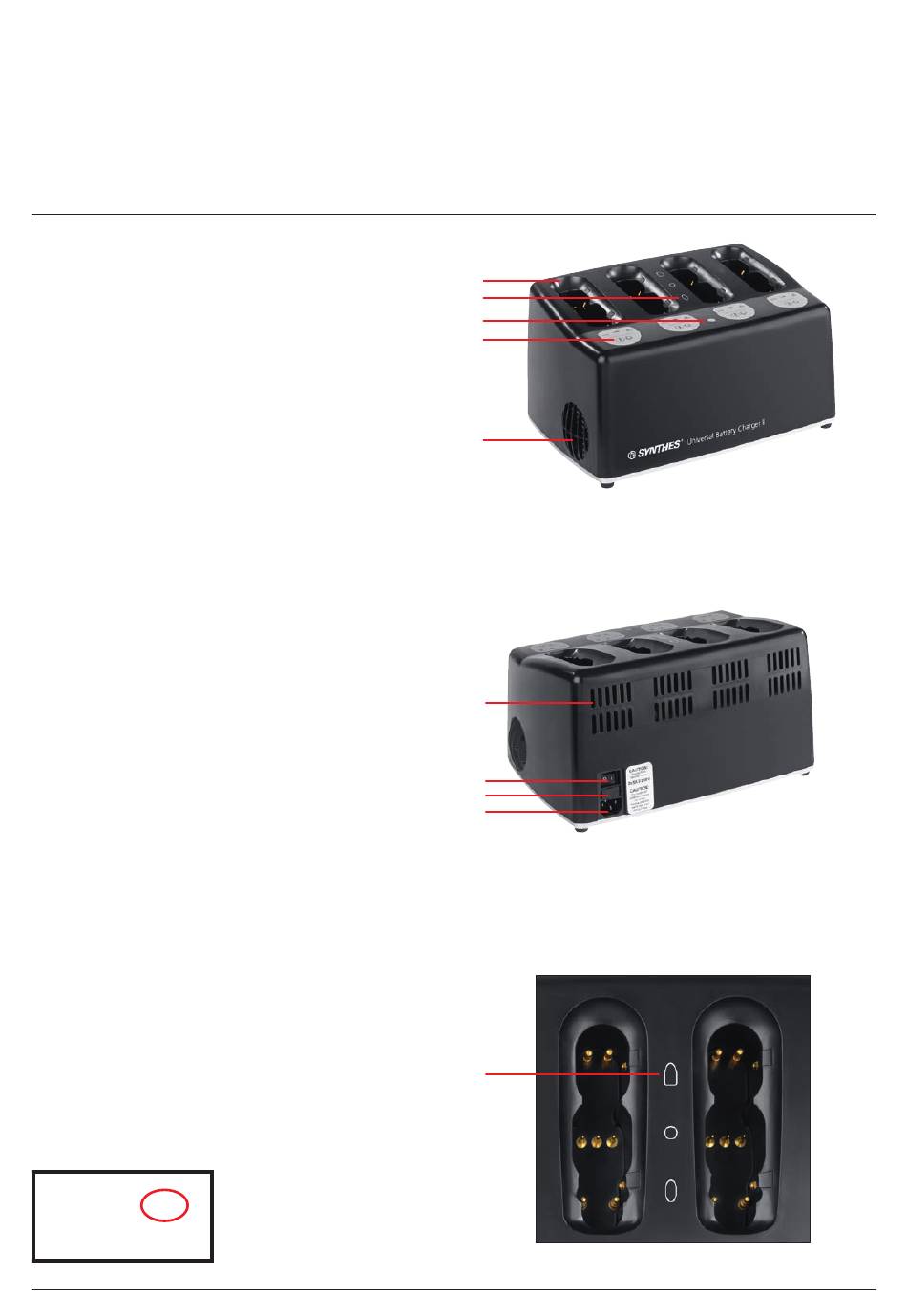

1 Charging bays (4)
2 Symbols for battery type
3 ON/OFF display
4 Control display for each charging bay
5 Ventilation holes
6 Ventilation holes
7 Power switch
8 Fuses: 2 × 5 AT/250 V
9 Power cord connection
10 Symbol for BPL and BPL II batteries
(530.620 or 530.630)
* Sticker as shown on the underside of the charger with firmware
version 14.0:
SW-Rev.14.0
2011/01/09
Front view
1
2
3
4
5
Rear view
6
7
8
9
10
