Operating Instructions
Attachments for Battery Reamer/Drill II

Insert Kirschner wire/guide pin into attachment

Set the appropriate diameter range on the attachment
adjusting sleeve. To adjust, push in the head of the at-
tachment and then turn to the required diameter (Fig. 1).
Insert the wire/pin into the front of the attachment
(Fig. 2). Adjust the working length by pulling in the wire/
guide pin.
Note: The attachment is spring-loaded to prevent the
wire/pin from falling out.

Insert Kirschner wire/guide pin into bone

Pull the attachment lever toward the drive unit to grip
the wire/pin (Fig. 3).
Set the mode switch on the drive unit to FWD (forward)
and press the trigger to insert the wire/pin.
Release the lever to reposition the attachment on the
wire/pin, if required.

Remove Kirschner wire/guide pin from bone

Set the appropriate diameter range on the attachment
adjusting sleeve. To adjust, push in the head of the at-
tachment and then turn to the required diameter (Fig. 1).
Slide the attachment over the wire/pin.
Set the mode switch on the drive unit to REV (reverse).
Pull the attachment lever toward the drive unit to grip
the wire/pin (Fig. 3).
Press the trigger while pulling backward to remove the
wire/pin from the bone.
14 DePuy Synthes Battery Power Line II Surgical Technique

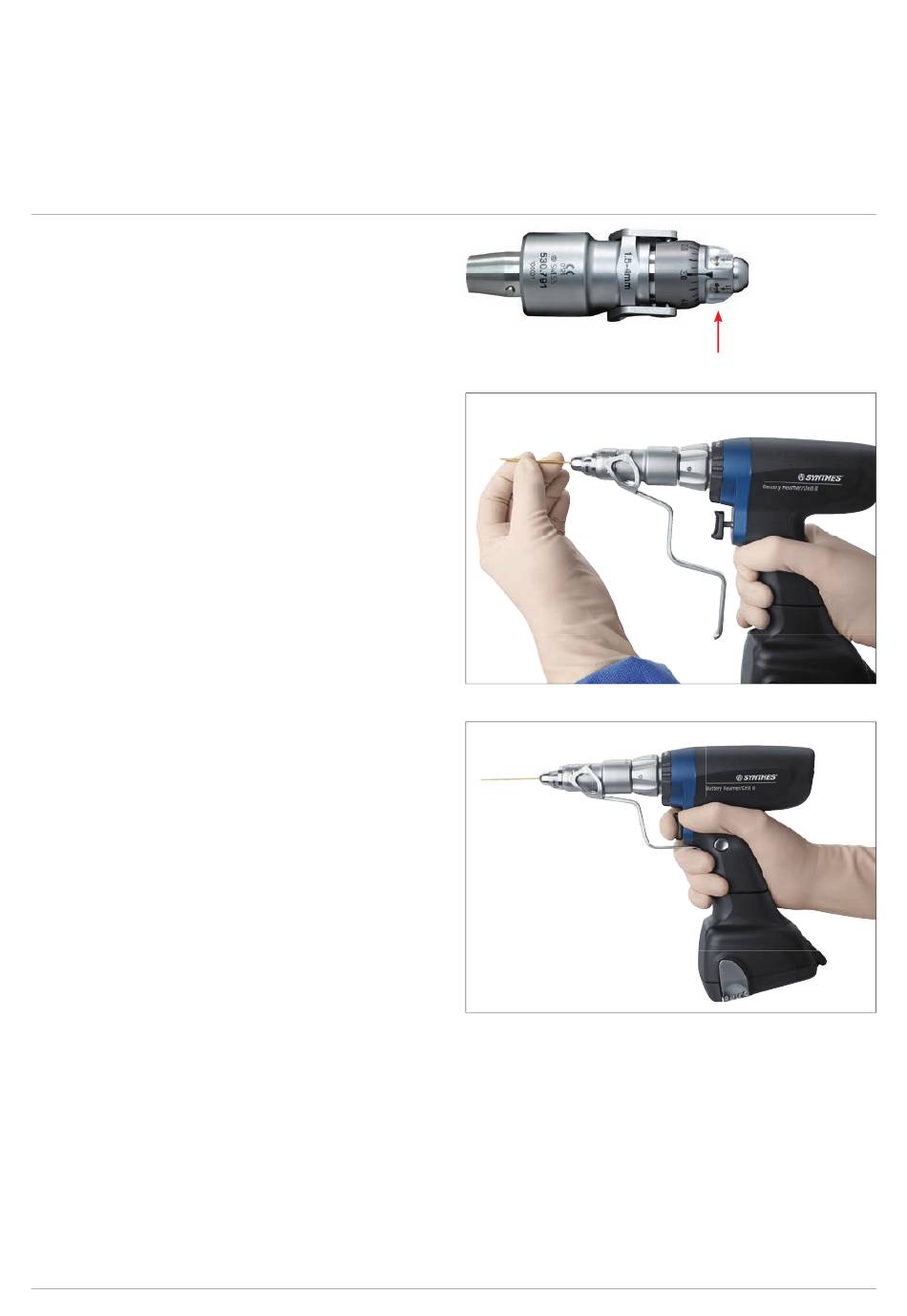

Figure 1
Figure 2
Figure 3
Push and turn the collar.
