Quick Coupling for Pins, Drill Speed (530.796)

Maximum speed:
approx. 930 rpm
Maximum torque:
approx. 6.0 Nm
Cannulation:
B 3.2 mm
Dedicated attachment to fix knee replacement
cutting blocks with a pin (as shown on page 3).
Allows insertion and removal of B 3.2 mm guide pins
with round, triangular and fl at shafts.
Technical data is subject to tolerances.

Insert guide pin into attachment

Insert a B 3.2 mm guide pin into the front of the attach-
ment (Fig. 1).
Note: The attachment is spring-loaded to prevent the
guide pin from falling out.

Insert guide pin into bone

Pull the attachment lever toward the drive unit to grip
the pin (Fig. 2).
Set the mode switch on the drive unit to FWD (forward)
and press the trigger to insert.
Release the lever to reposition the attachment on the
pin, if required.
Remove guide pin from bone
Slide the attachment over the pin.
Set the mode switch on the drive unit to REV (reverse).
Pull the attachment lever toward the drive unit to grip
the pin (Fig. 2).
Press the trigger while pulling backward to remove the
pin from the bone.

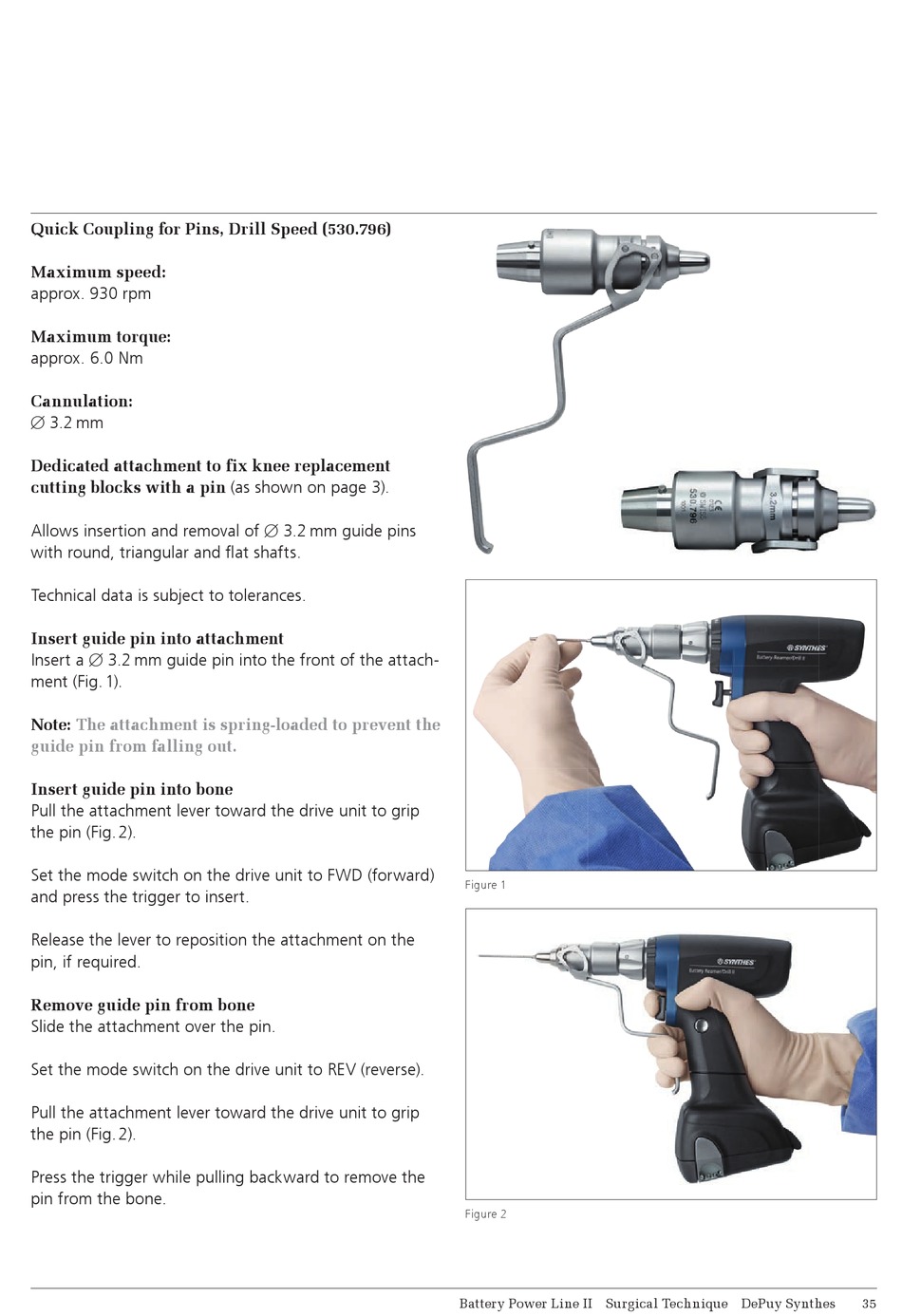

Figure 1
Figure 2
Battery Power Line II Surgical Technique DePuy Synthes 15
