Introduction
Drive Units
Battery Reciprocator II (530.715)
Speed 0–14 000 oscillations per minute
Stroke 4 mm
Weight of handpiece (including battery pack)
Protection against electric shock
Protection against water ingress
Synthes Special Oil (519.970) included
Technical data is subject to tolerances.

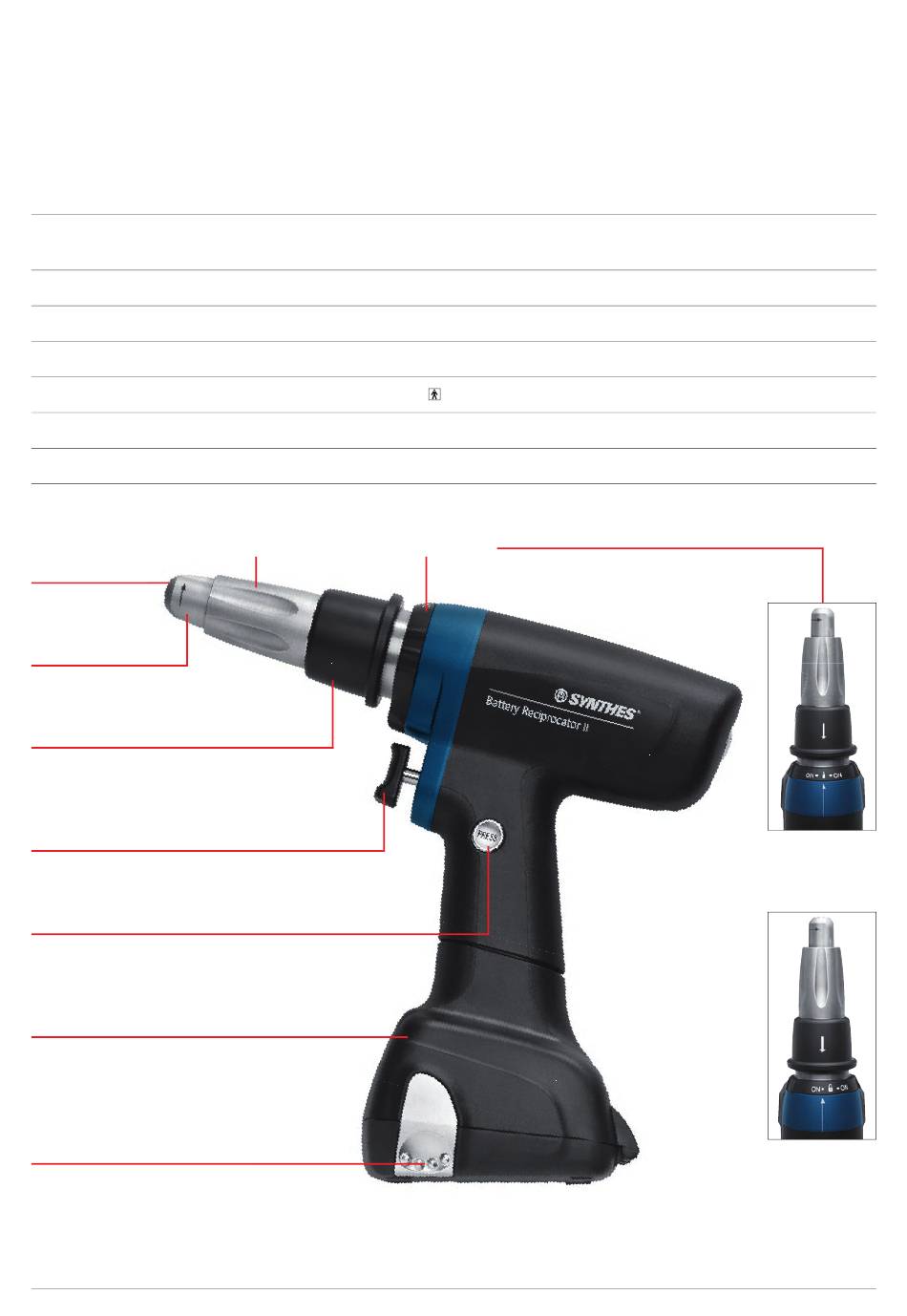

Saw blade coupling
To insert or remove
saw blade
Release knob
Ejects saw blade
Sliding sleeve
Allows sawing plane to be adjusted
through 360°, in 45° increments
Variable-speed trigger
Controls reciprocating frequency
Release buttons
Both release buttons must be pressed
simultaneously to remove battery casing
Battery casing
Protects sterile environment from
contamination by non-sterile battery
Battery casing locks
To open and close the lid of the battery casing and
prevent the casing from opening during surgery. Both
battery casing locks must be pressed simultaneously to
open and close the lid.
10 DePuy Synthes Battery Power Line II Surgical Technique
1675 g/3.6 lbs
BF
IP X4
Saw head Mode switch
Locked symbol
Drive unit is off
for safety
ON
Drive unit is on
for sawing
