Battery Oscillator II (530.710)
Speed 0–12 000 oscillations per minute
Deflection 4.5° (0°/2.25°)
Weight of handpiece (including battery pack)
Protection against electric shock
Protection against water ingress
Synthes Special Oil (519.970) included
Technical data is subject to tolerances.

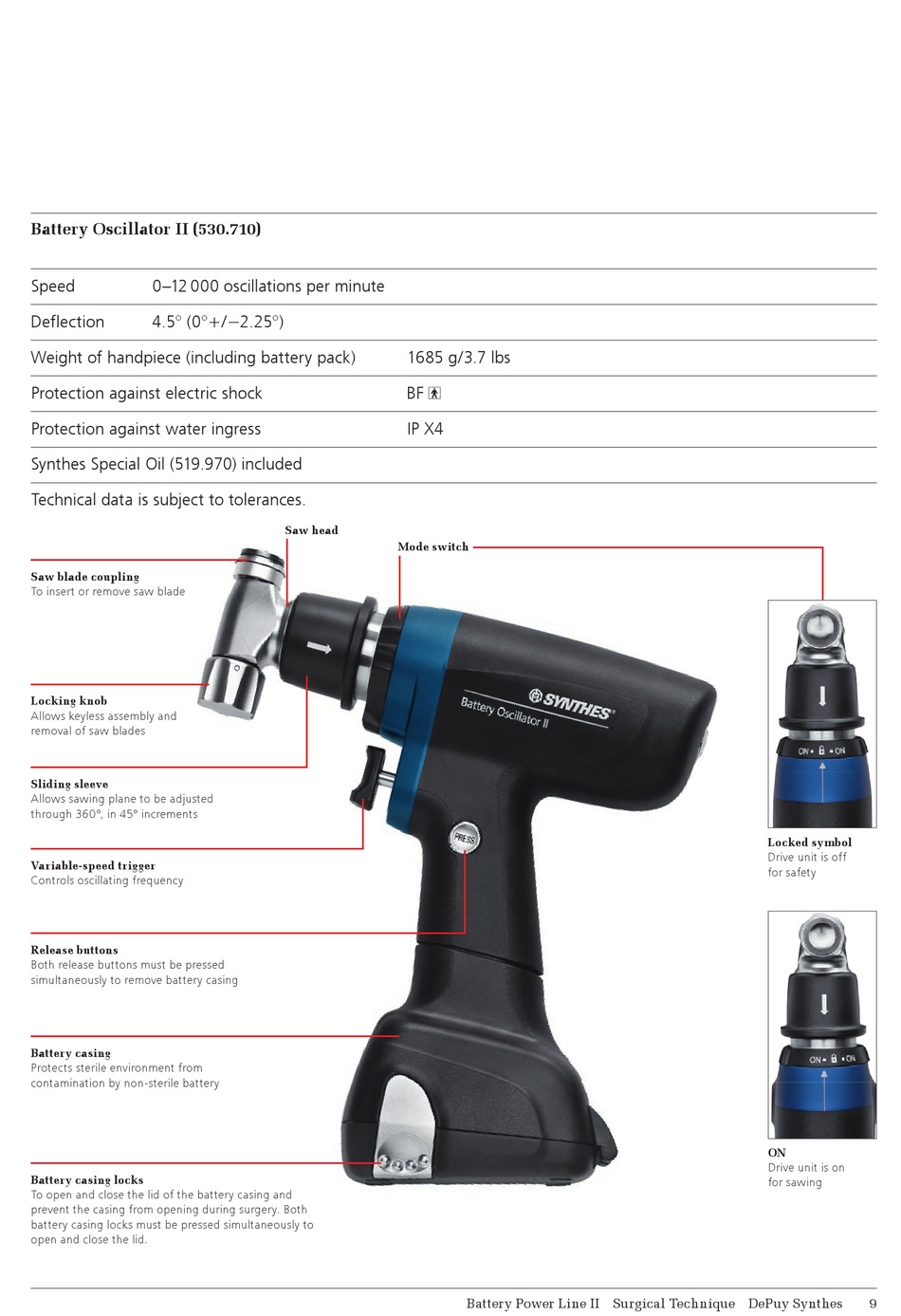

Saw blade coupling
To insert or remove saw blade
Locking knob
Allows keyless assembly and
removal of saw blades
Sliding sleeve
Allows sawing plane to be adjusted
through 360°, in 45° increments
Variable-speed trigger
Controls oscillating frequency
Release buttons
Both release buttons must be pressed
simultaneously to remove battery casing
Battery casing
Protects sterile environment from
contamination by non-sterile battery
Battery casing locks
To open and close the lid of the battery casing and
prevent the casing from opening during surgery. Both
battery casing locks must be pressed simultaneously to
open and close the lid.
1685 g/3.7 lbs
BF
IP X4
Saw head
Mode switch
Battery Power Line II Surgical Technique DePuy Synthes
Locked symbol
Drive unit is off
for safety
ON
Drive unit is on
for sawing
