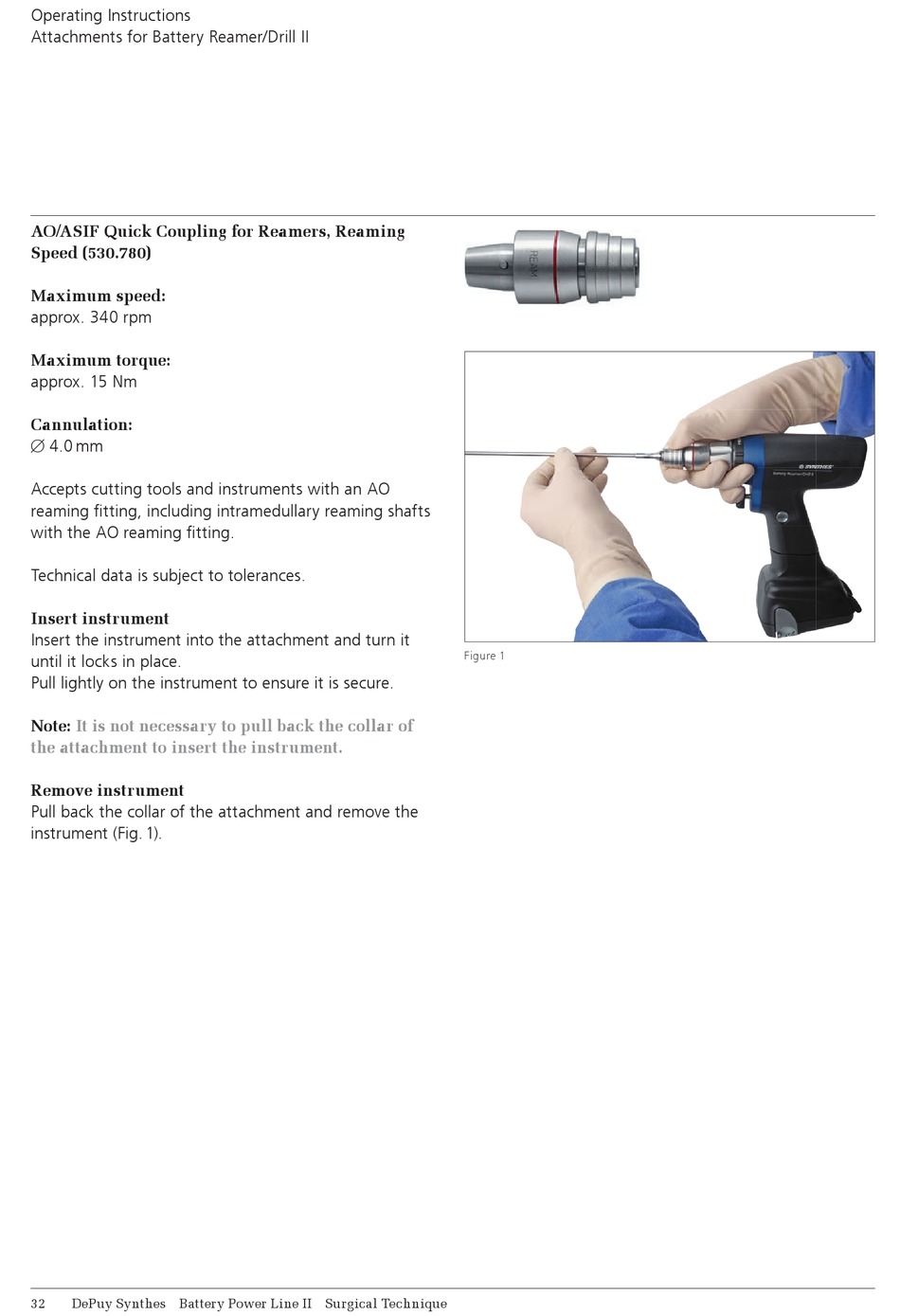

Operating Instructions
Attachments for Battery Reamer/Drill II
AO/ASIF Quick Coupling for Reamers, Reaming
Speed (530.780)
Maximum speed:
approx. 340 rpm
Maximum torque:
approx. 15 Nm
Cannulation:
B 4.0 mm
Accepts cutting tools and instruments with an AO
rea ming fi tting, including intramedullary reaming shafts
with the AO reaming fi tting.
Technical data is subject to tolerances.
Insert instrument
Insert the instrument into the attachment and turn it
Figure 1
until it locks in place.
Pull lightly on the instrument to ensure it is secure.
Note: It is not necessary to pull back the collar of
the attachment to insert the instrument.
Remove instrument
Pull back the collar of the attachment and remove the
instrument (Fig. 1).
12 DePuy Synthes Battery Power Line II Surgical Technique
