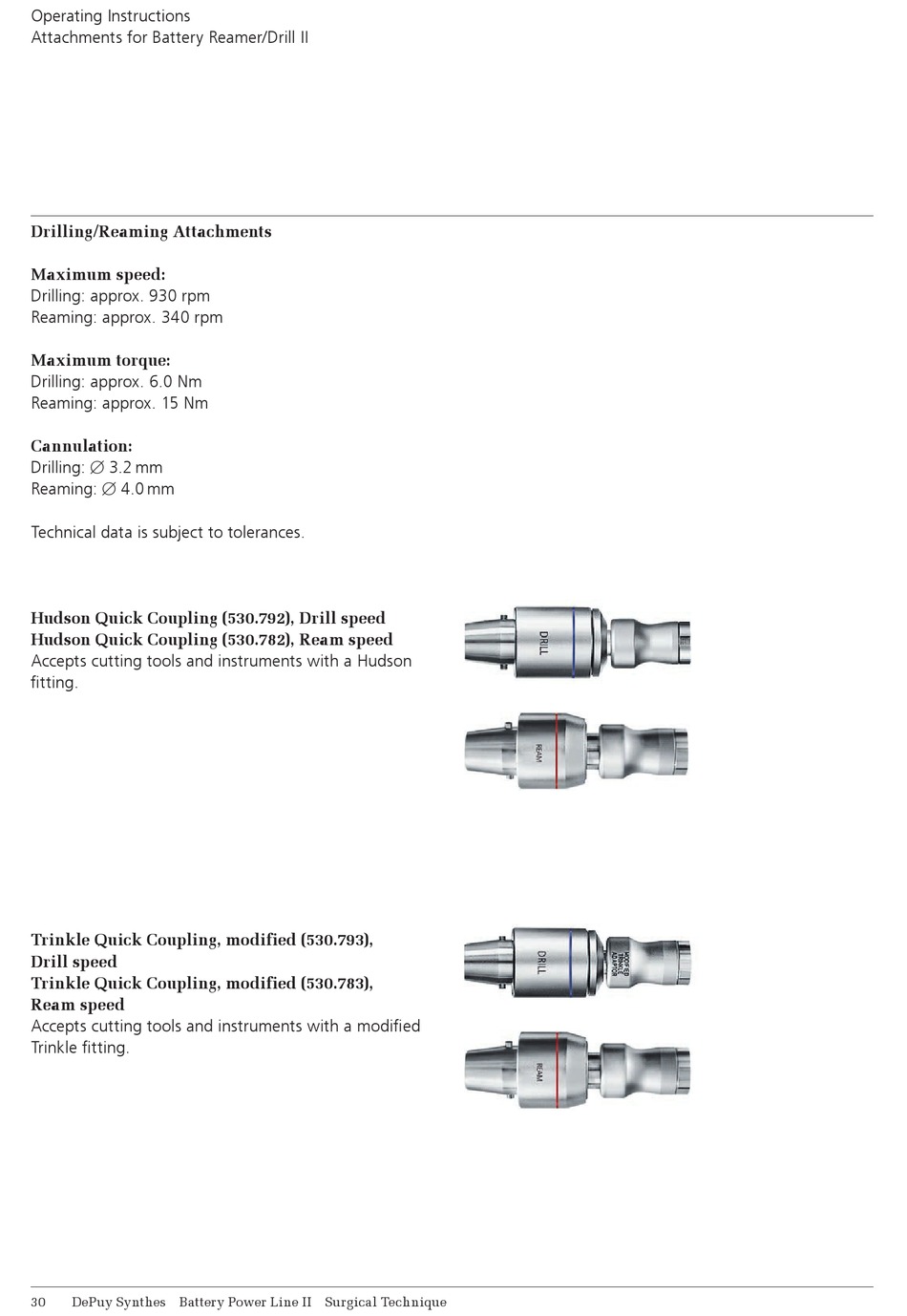

Operating Instructions
Attachments for Battery Reamer/Drill II

Drilling/Reaming Attachments

Maximum speed:
Drilling: approx. 930 rpm
Reaming: approx. 340 rpm
Maximum torque:
Drilling: approx. 6.0 Nm
Reaming: approx. 15 Nm
Cannulation:
Drilling: B 3.2 mm
Reaming: B 4.0 mm
Technical data is subject to tolerances.
Hudson Quick Coupling (530.792), Drill speed
Hudson Quick Coupling (530.782), Ream speed
Accepts cutting tools and instruments with a Hudson
fitting.
Trinkle Quick Coupling, modified (530.793),
Drill speed
Trinkle Quick Coupling, modified (530.783),
Ream speed
Accepts cutting tools and instruments with a modified
Trinkle fitting.
