Press Apply on the Ethernet Configuration and then Apply on the Preferences Page
to complete.
❖
Turn the instrument off and then back on.
❖
Go to Preferences and select Auto Network Data Export.
❖
For a direct connection between Aeros and data collection computer, set up the
Aeros as a Client.
❖
Enter the computer IP address here, in this case 169.254.113.144 and the Port as
10001. Press Apply on the screen to continue.
❖
Aeros is now ready to send data.
•
Configure the Computer:
❖
Connection configurations differ depending on data collection software. The data
collection computer will be set up as a Server.
❖
Connect as follows:
•
Set computer as server
•
Enter the computer IP address 169.254.113.144
•
Put the port number as 10001
User's Manual for Aeros and EasyMatch Essentials v 1.1

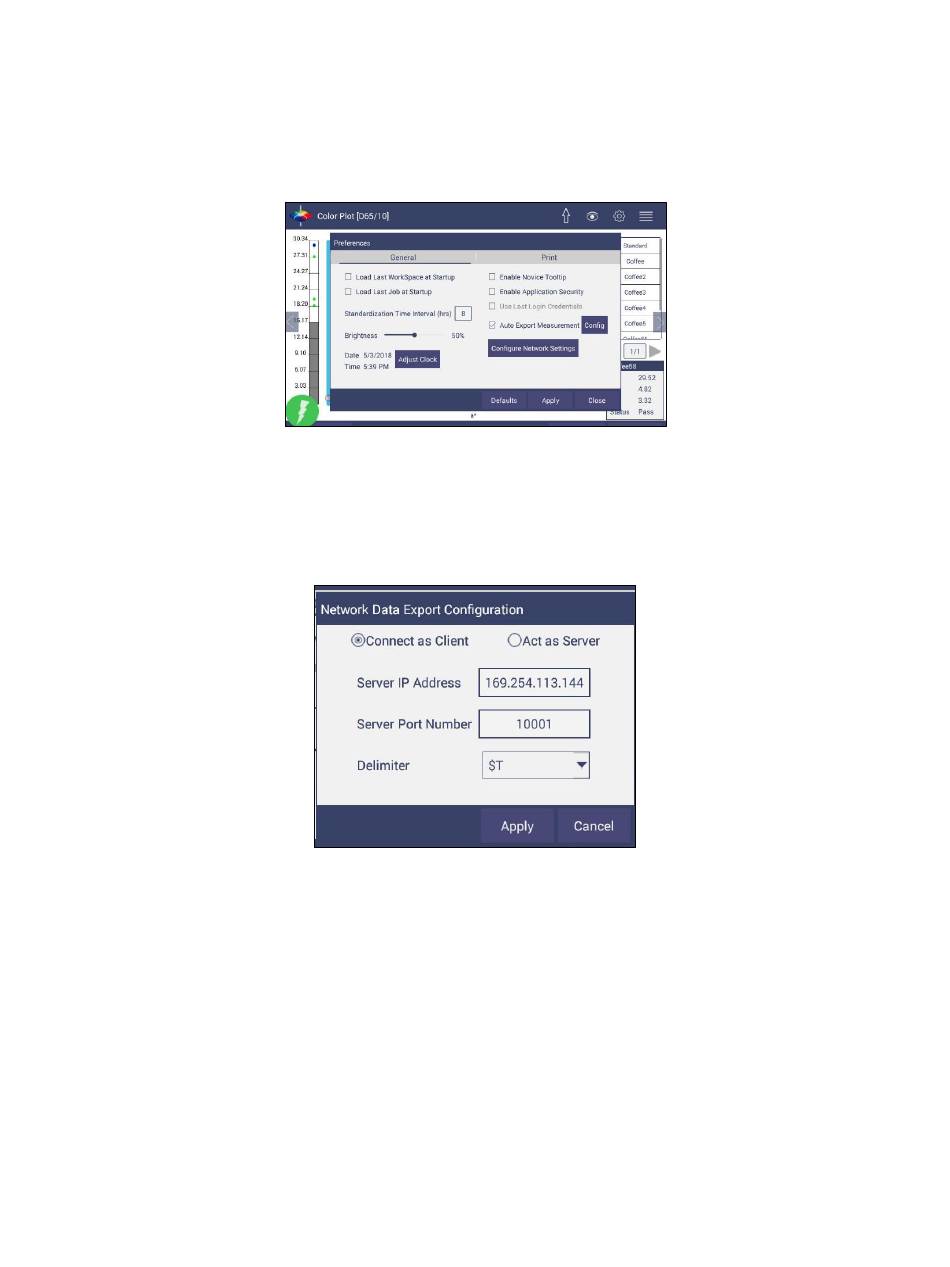

Figure 130. Read Options> Auto Export Measurements

Figure 131. Read Options Export

73
