Configure the computer with the following settings:
•
After all the setting, you should be ready to get the data exported from Aeros to the
computer.

Auto-Exporting Data via Direct Connection between Aeros and a Computer

Ethernet cable is plugged into the back of the Aeros and the other end is connected to the computer.
Ethernet adapter USB can be applied here if the computer does not have available Ethernet port.
• Materials Needed: Ethernet cable and Ethernet adapter to USB can be applied here if the
computer does not have available Ethernet port. Hardware needed: Ethernet cable and Ethernet
adapter to USB can be applied here if the computer does not have available Ethernet port.
•
Connect Aeros to Computer:
User's Manual for Aeros and EasyMatch Essentials v 1.1

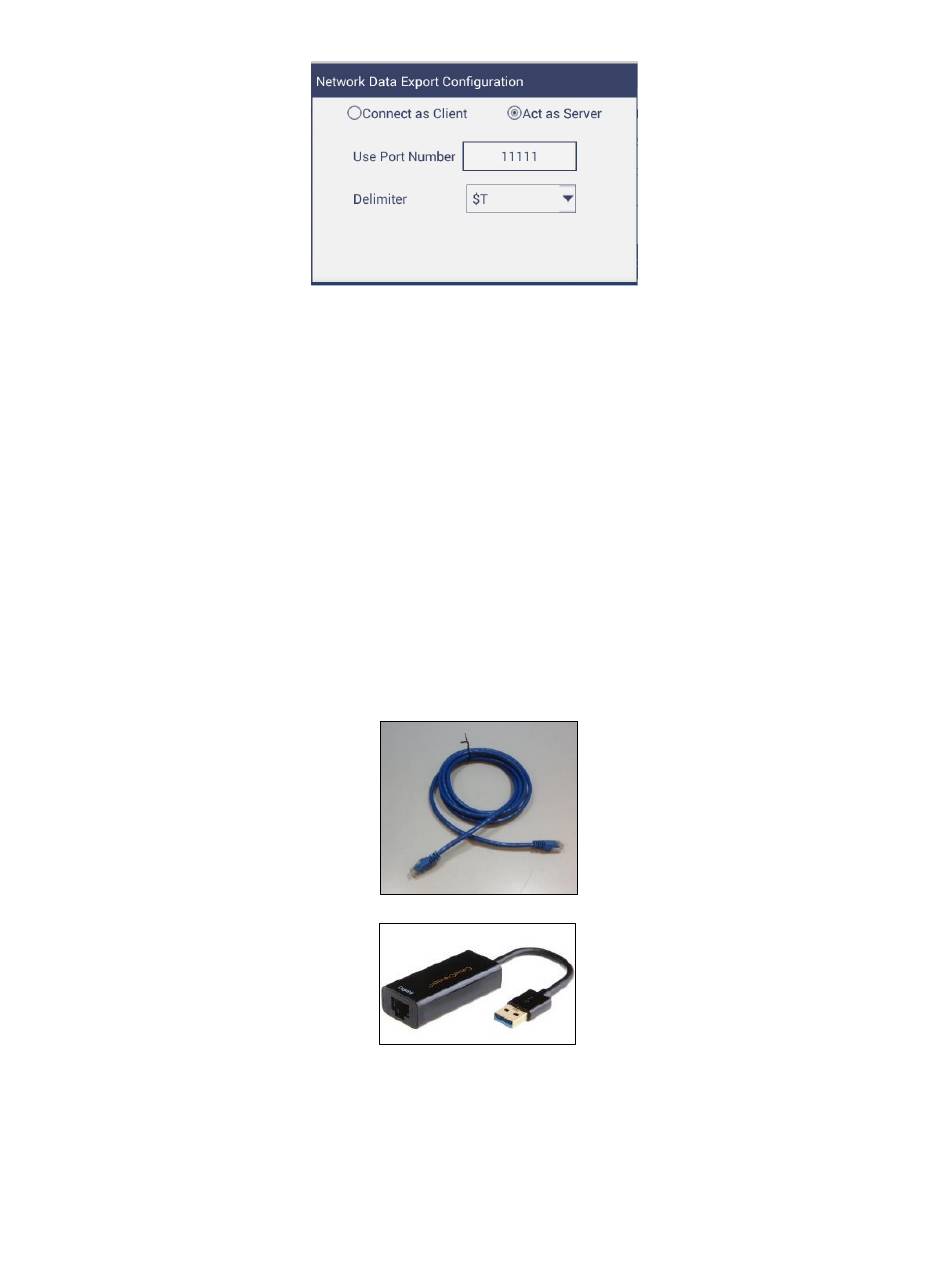

Figure 124. Network Data Export Config

❖
Set computer as client
❖
Enter the IP address of Aeros which is recorded in step 1 above
❖
Put the port number as 11111

Figure 125. Ethernet Cable

Figure 126. Ethernet to USB Adapter

71
