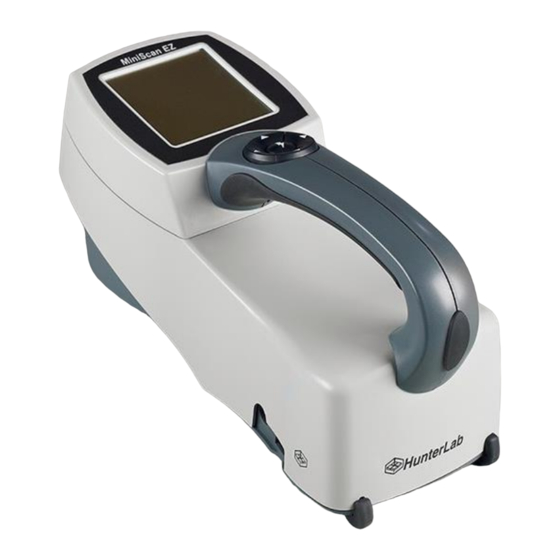

HunterLab MiniScan EZ Supplemental Manual
For easymatch qc
Hide thumbs
Also See for MiniScan EZ:
- Quick start manual (2 pages) ,
- User manual (70 pages) ,
- Supplemental manual (29 pages)
Related Manuals for HunterLab MiniScan EZ
Summary of Contents for HunterLab MiniScan EZ

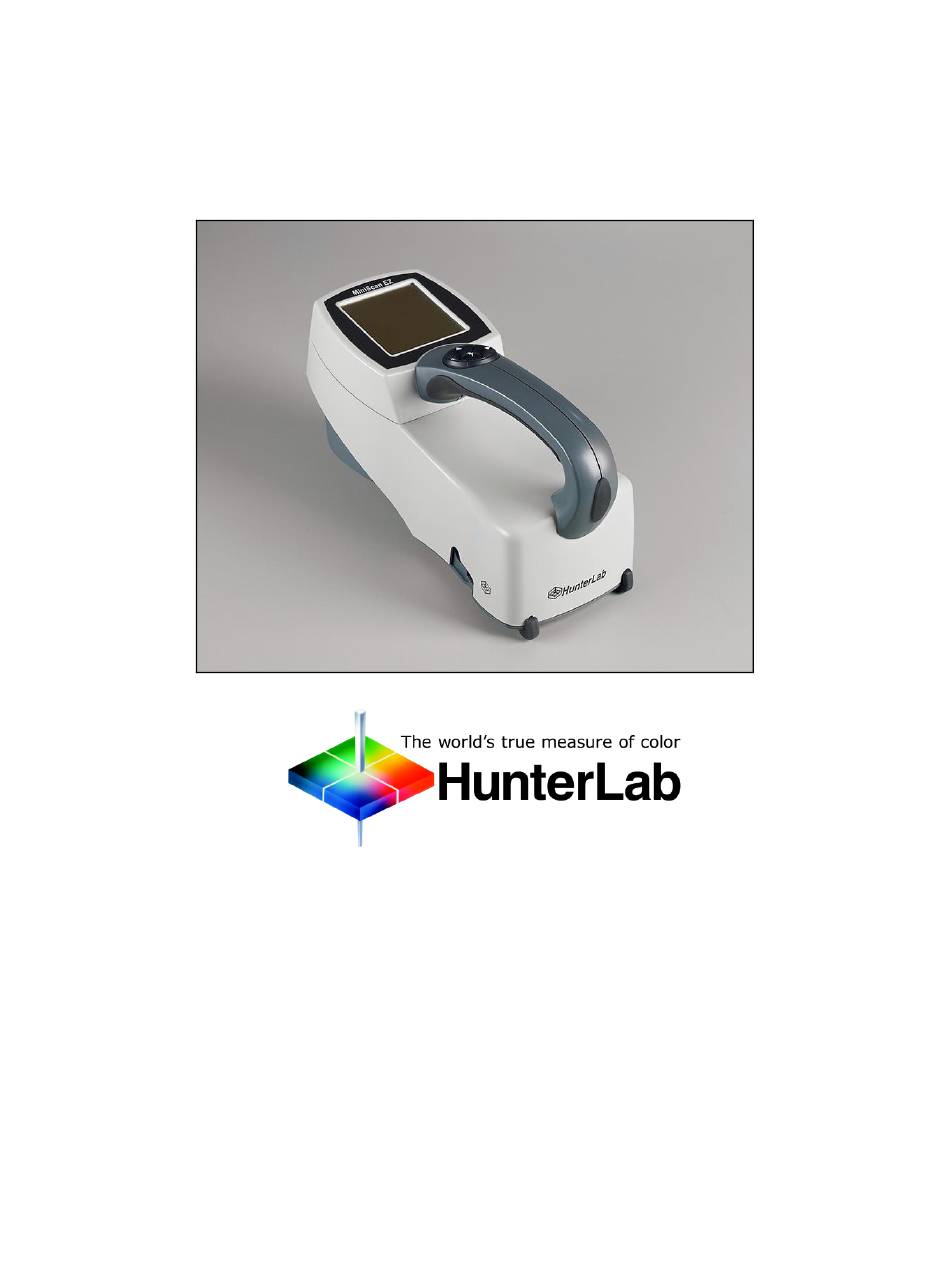

- Page 1 MiniScan ® Supplemental Manual for EasyMatch ® Hunter Associates Laboratory 11491 Sunset Hills Road Reston, Virginia 20190 USA www.hunterlab.com A60-1017-663 Manual Version 1.0...
- Page 2 Teflon is a registered trademark of Dupont. Caution: If the equipment is used in a manner not specified by the HunterLab, the overall safety may be impaired. - The MiniScan EZis for indoor use only and not suitable for a wet location.
-
Page 3: Table Of Contents
MiniScan EZ Supplemental Manual for EasyMatch QC Contents MINISCAN EZ FEATURES ....................5 MiniScan EZ Accessories ......................... 6 MiniScan EZ Options and Sample Devices ..................7 MINISCAN EZ INSTALLATION ..................9 Install EasyMatch® QC Software ..................... 10 Activate the SoftKey License ......................11 Add the Sensor .......................... - Page 4 MiniScan EZ Supplemental Manual for EasyMatch QC...
-
Page 5: Miniscan Ez Features
Take care not to drop the MiniScan EZ. If it is dropped, have it evaluated for damage before operation. MiniScan EZ is available in four different models based on viewing area and geometry. A label on the bottom of the instrument provides this information. -
Page 6: Miniscan Ez Accessories
Diffuse/8° (Sphere) Small The MiniScan EZ may be operated using the keypad and display on the instrument itself, and it may also be operated while connected to a computer running EasyMatch QC. Therefore, having purchased both a MiniScan EZ and EasyMatch QC, you have two sources of information on the instrument in addition to this User’s Manual: the MiniScan EZ User’s Guide, which describes stand-alone operation,... -
Page 7: Miniscan Ez Options And Sample Devices
MiniScan EZ Options and Sample Devices There are many options and devices available for positioning samples at the measurement ports of the MiniScan EZ and for making the instrument easier to use. For the latest information, please refer to https://support.hunterlab.com/hc/en-us/articles/218375923-Accessories-for-HunterLab-... - Page 8 MiniScan EZ Supplemental Manual for EasyMatch QC...
-
Page 9: Miniscan Ez Installation
MiniScan EZ Supplemental Manual for EasyMatch QC MiniScan EZ Installation The MiniScan EZ is simple to set up and attach to your computer. Before operating the MiniScan EZ with EasyMatch QC, you need only install the batteries and connect the instrument to your computer. -
Page 10: Install Easymatch Qc Software
MiniScan EZ Supplemental Manual for EasyMatch QC Figure 5. USB Cable for Computer Connection 6. Plug the flat end of the USB cable into the appropriate USB port on the computer. Windows’ plug and play feature automatically finds and installs the device. Let it do so until the “Found new hardware”... -
Page 11: Activate The Softkey License
MiniScan EZ Supplemental Manual for EasyMatch QC Figure 7. Software Key License 6. When the EasyMatch QC installation is finished, select the Option Button next to ‘Yes, I want to restart my computer now’ and then Finish to restart the computer and log back in. - Page 12 Option #3: Sentinel Key a. If the user has a HunterLab USB hardware key, then it can be used with a new sensor on the same computer. Return to Install the Software, Step 5 (Figure 11) and select Sentinel Key to continue.
-
Page 13: Add The Sensor
Option #4: 30-day trial a. Fill out the registration form provided for the 30-day trial. Connect to the internet. HunterLab will approve the trial and email the SoftKey license back. Follow the directions for Option #1 or #2 to complete. - Page 14 If using USB communications, the COM port will automatically be selected. 4. Turn on the MiniScan EZ by switching the on/off switch on the back of the sensor to the on position. Allow the instrument to warm up for two hours prior to standardizing and...
-
Page 15: Miniscan Ez Standardization
MiniScan EZ Supplemental Manual for EasyMatch QC MiniScan EZ Standardization The MiniScan EZ must be standardized on a regular basis to keep it operating properly. The standardization interval is user selectable up to 8 hours. A prompt to standardize is provided if the interval is exceeded. - Page 16 MiniScan EZ Supplemental Manual for EasyMatch QC Figure 15. Top-of-Scale Reading for Standardization It is recommended that the instrument be standardized at least once every four hours. Then you may proceed with sample measurement.
-
Page 17: Miniscan Ez Maintenance And Testing
You may test the repeatability of your instrument as follows: 1. Turn the MiniScan EZ on and allow it to warm it up for 2 hours. Meanwhile, clean the white tile as described on the next page and allow the tile to return to room temperature. -
Page 18: Recharging/Replacing The Batteries
Lamp replacement requires a trained technician. Contact HunterLab Technical Support to arrange for lamp replacement. Please read “When You Need Assistance” prior to contacting HunterLab. Cleaning the MiniScan EZ Clean the outside surfaces of the MiniScan EZ using a soft cloth. Do not spray liquids directly on the instrument. -
Page 19: Miniscan Ez Specifications
Operating Conditions MiniScan EZ can be stored in an area with a temperature range of -5°F to 150°F (-20°C to 65°C) for up to 3 weeks and can be operated under temperature conditions of 50°F to 104°F (10°C to 40°C). For specification-level performance, the recommended temperature range is 70-82°F (21-28°C). -
Page 20: System Power
MiniScan EZ Supplemental Manual for EasyMatch QC System Power Power Input Disposable or rechargeable AA batteries Battery Life >4,000 readings per charge Instrument Performance Range: 400-700 nm Spectral Data Reporting Interval: 10 nm Bandwidth at Half-height 10 nm Wavelength Accuracy ≤0.75 nm... - Page 21 MiniScan EZ Supplemental Manual for EasyMatch QC...
- Page 22 MiniScan EZ Supplemental Manual for EasyMatch QC...
-
Page 23: Instrument Replacement, Repair, Problems, And Questions
The HunterLab warranty does not cover consumable items such as lamps, fuses, batteries, etc. An instrument registration card is shipped with each HunterLab instrument. It is important that the instrument owner returns this card promptly upon receipt of equipment. -
Page 24: Shortage
4. Advise HunterLab regarding replacement. Parcel Post Shipment 1. Notify HunterLab at once in writing, giving details of the loss or damage. This information is required for filing a claim. 2. Hold the damaged goods with their container and packaging for possible inspection by postal authorities. -
Page 25: Returns
MiniScan EZ Supplemental Manual for EasyMatch QC 3. Hold incorrect items until return shipping instructions are received. Returns A service request order (SRO) number is required before any items can be returned to HunterLab. Contact HunterLab's Order Processing Department to obtain an SRO for damaged or incorrect parts, or the HunterLab Service Department to obtain an SRO to return an instrument for service. -
Page 26: When You Need Assistance
When You Need Assistance When you have a problem with an instrument or software or need technical advice concerning a specific application, you may consult the support website (support.hunterlab.com). There are numerous articles on applications, operations, instrument accessories, troubleshooting and more. This is available 24/7. - Page 27 Technical Support . To return instruments to HunterLab for service, or to ask questions about the servicing or recalibration of instruments, ask for the HunterLab Service Department. To speak with HunterLab, please call 703-471-6870.
- Page 28 MiniScan EZ Supplemental Manual for EasyMatch QC...
-
Page 29: Index
MiniScan EZ Supplemental Manual for EasyMatch QC Index Accessories, 6 Questions, 23 Broken instruments, 23 Rechargeable batteries, 6 Calibration cylinder, 6 Recharging batteries, 18 Certificate of traceability, 6 Regulatory notice, 20 charger, 6 Repair, 23 Claims, 23 Repeatability test, 17...
