Read Black Glass: When the sensor stays at the top, attach the standardization box
to the sensor. Then attach the black glass to standardization box and press Read.
▪
Read White Tile: Remove the black glass and attach the calibrated white tile to
standardization box. Press Read to continue.
▪
Remove the calibration box when standardization is completed. Click OK.
12
User's Manual for Aeros and EasyMatch Essentials v 1.1

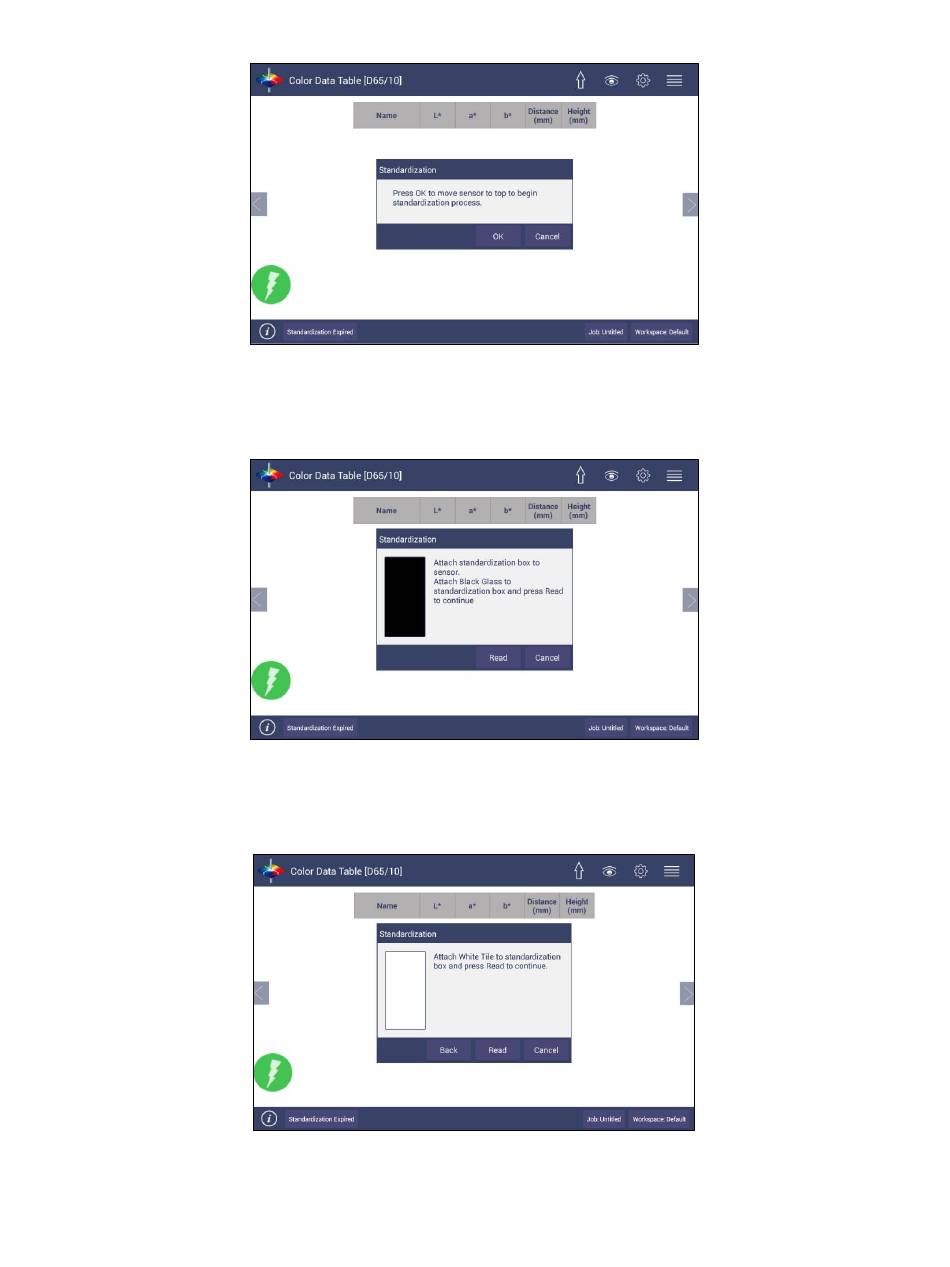

Figure 5. Sensor Moves to Top

Figure 6. Read the Black Glass for Bottom-of-Scale

Figure 7. Read the White Tile for Top-of-Scale
