Figure 26. Import Job; Figure 27. Import Workspace - HunterLab EasyMatch User Manual

▪
Import Job
This option allows the user to browse and select a Job file(s) (.ezm) from the USB
flash drive and import into the instrument. If a file name already exists, then the
name will be incremented numerically.
▪
Import Standard
This option allows the user to browse and select a Standard(s)(extension .std) from
the USB flash drive and import into the database. If required, the Standard Name
can be changed.
▪
Import Workspace
This option allows the user to browse and select a Workspace(s) (extension .wsp)
from the USB flash drive and import into the database. If the workspace already
exists, then the user is prompted to specify a different name.
To use the above functions, a USB flash drive must be present in the port.
▪
Import Diagnostics: This option allows the user to browse and select a Diagnostics
file from the USB flash drive for import into the instrument database.
▪
Import Others: This function is available to import other items such as a logo for the
printed report. Once the logo is imported, go to Workspace & System Settings >
Preferences > Print to add the logo to a report.
26
User's Manual for Aeros and EasyMatch Essentials v 1.1

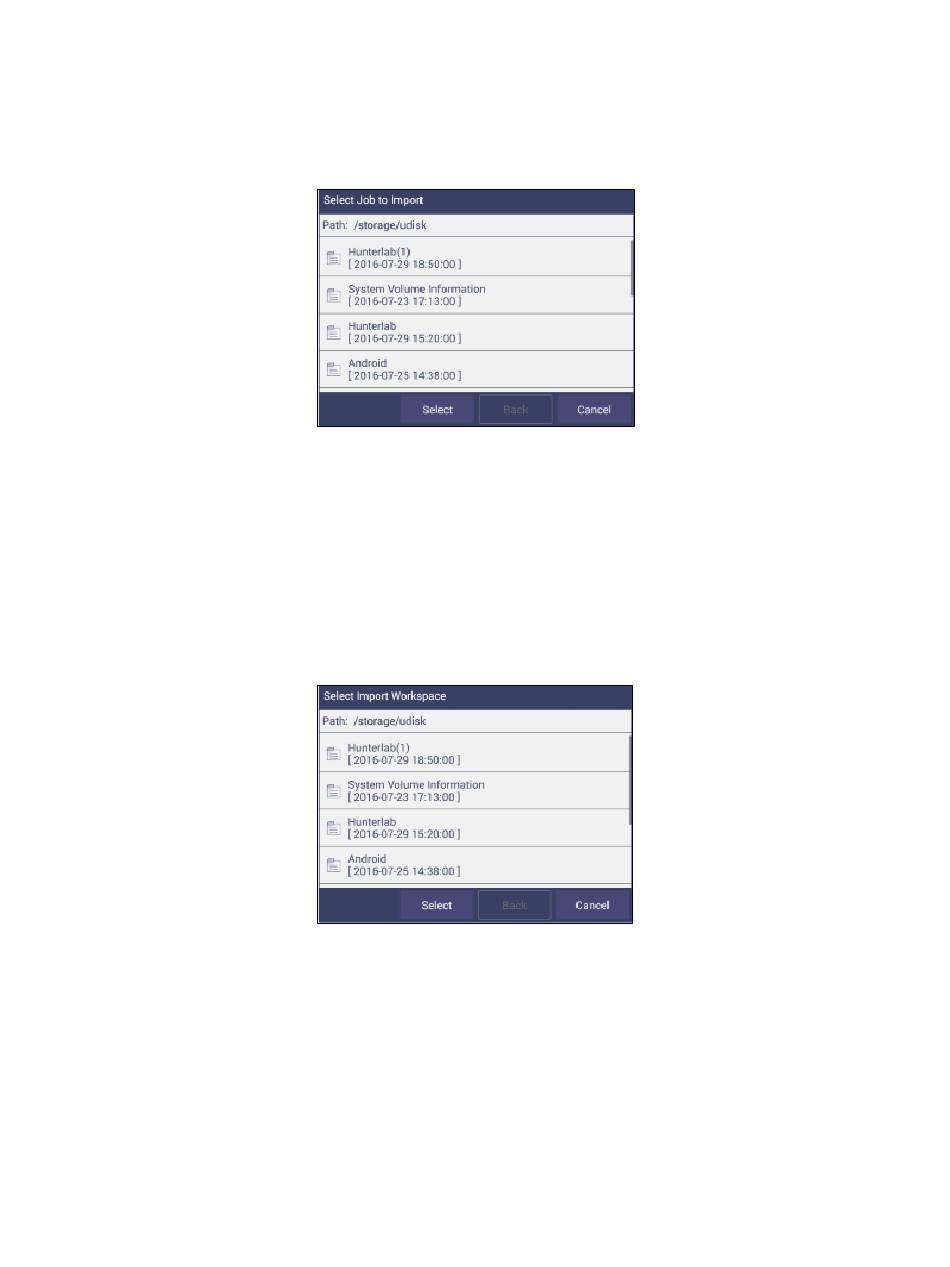

Figure 26. Import Job

Figure 27. Import Workspace
