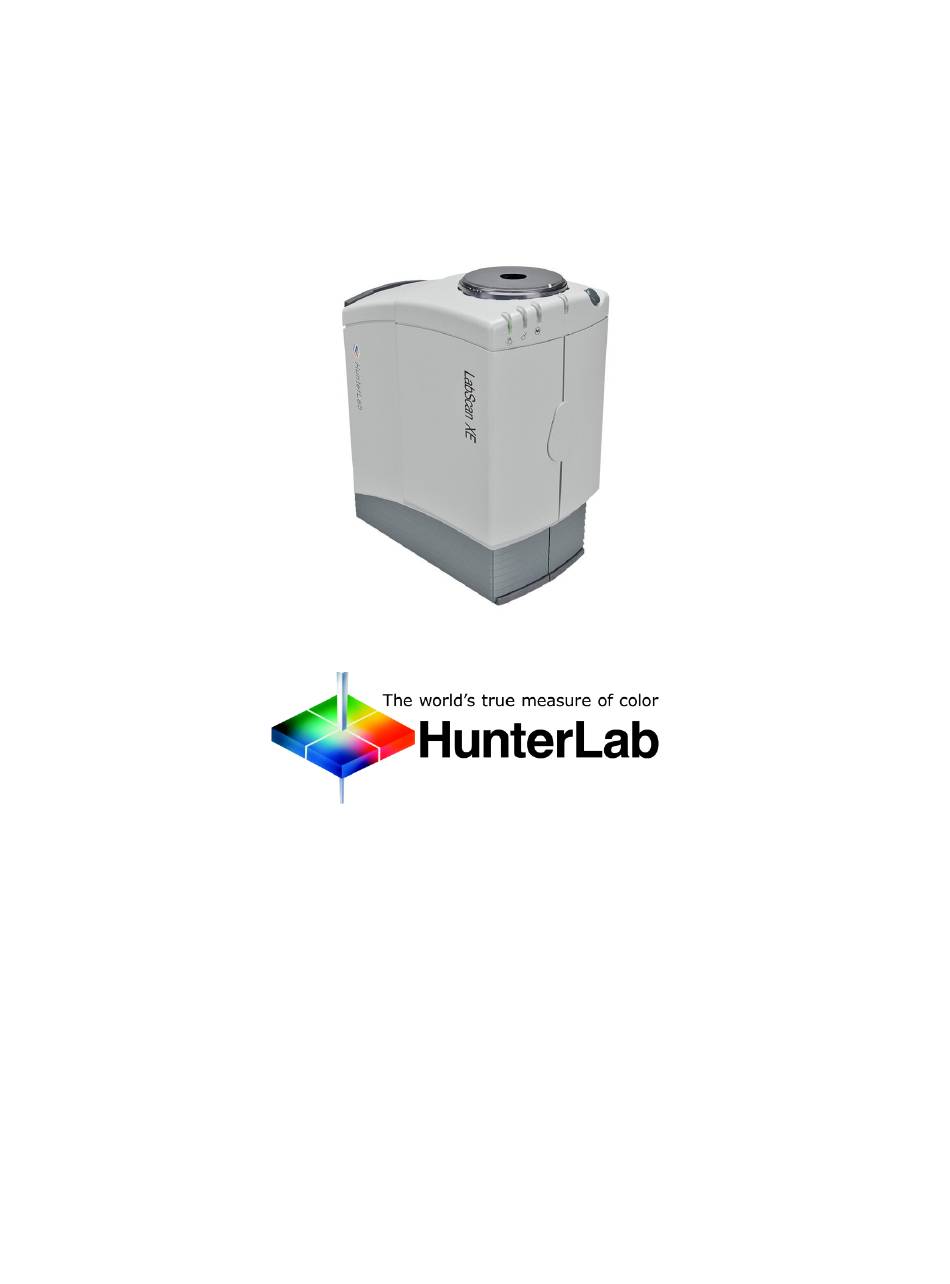

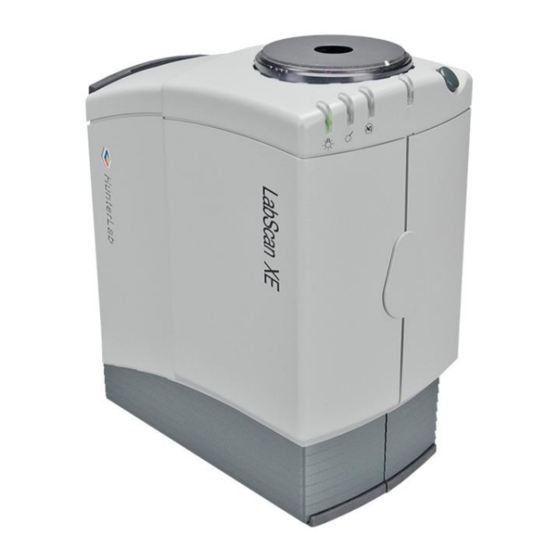

- Page 1 LabScan ® Supplemental Manual for EasyMatch ® Hunter Associates Laboratory 11491 Sunset Hills Road Reston, Virginia 20190 USA www.hunterlab.com A60-1017-661 Manual Version 1.0...
- Page 2 Teflon is a registered trademark of Dupont. Caution: If the equipment is used in a manner not specified by the HunterLab, the overall safety may be impaired. - The LabScan is for indoor use only and not suitable for a wet location.
-
Page 3: Table Of Contents
LABSCAN XE FEATURES ....................5 Indicator Lights ..........................5 Macro Button ..........................6 LabScan XE Accessories ........................6 LabScan XE Options and Sample Devices ..................6 INSTALL EASYMATCH® QC SOFTWARE ................7 Activate the SoftKey License ......................8 Add the Sensor ..........................10 LABSCAN XE STANDARDIZATION ................ - Page 4 LabScan XE Supplemental Manual for EasyMatch QC...
-
Page 5: Labscan Xe Features
Indicator Lights The LabScan XE’s indicator light feature lets you know what mode of standardization is currently in use. There is also an “In progress” light next to the indicator lights that flashes when a reading is in progress or a motor is in motion. -
Page 6: Macro Button
Macro Button The macro button, also known as the Sensor button, activates a sample measurement. LabScan XE Accessories The following accessories are provided with the LabScan XE system and can be found in the standards case: • Instrument Standard White tile with calibrated values - placed at the sample port during standardization. -
Page 7: Install Easymatch® Qc Software
LabScan XE Supplemental Manual for EasyMatch QC Install EasyMatch® QC Software Complete the following steps: 1. Log into the system using an account that has ‘Administrator’ privileges for the PC — network or local. 2. Insert the installation CD into the CD-ROM drive. If the system is setup to automatically run CD programs, the menu will appear and you may skip to Step 4. -
Page 8: Activate The Softkey License
Figure 6. No License Warning 3. The SoftKey License is uniquely associated with the sensor serial number and is provided on a thumb drive supplied with EasyMatch QC or via email from HunterLab. 4. Go to Help > License Registration > Activation. - Page 9 Option #3: Sentinel Key a. If the user has a HunterLab USB hardware key, then it can be used with a new sensor on the same computer. Return to Install the Software, Step 5 (Figure 7) and select the Sentinel Key to continue.
-
Page 10: Add The Sensor
LabScan XE Supplemental Manual for EasyMatch QC Figure 8. Request 30-day Trial Add the Sensor 1. Upon initial startup, the following message will be displayed: ‘Sensor not yet installed. Please install a sensor to take measurements’. This message will remain until you proceed to the Install/ Configure command in the Sensor menu and install a new sensor. - Page 11 LabScan XE Supplemental Manual for EasyMatch QC 5. Turn on the LabScan XE by switching the on/off switch on the back of the sensor to the on position. Allow the instrument to warm up for two hours prior to standardizing and...
- Page 12 LabScan XE Supplemental Manual for EasyMatch QC...
-
Page 13: Labscan Xe Standardization
With varying hardware configurations such as UV filter in/out and the different areas of view, there are many mode options for standardizing the LabScan XE. The instrument can be standardized at any time by selecting Sensor > Standardize or by clicking the Standardize button on the default toolbar. -
Page 14: Standardization Options
Standardization Options UV Filter Each LabScan XE is factory fitted with a UV filter to exclude UV content in a measurement. The procedure is to standardize in 2 modes – one with the UV Filter Out-Of-View and one with the UV Filter In-View for comparison. In this way, a numerical value for the ultraviolet contribution can be documented. -
Page 15: Variable Sample Illumination (Vsi)
LabScan XE Supplemental Manual for EasyMatch QC Variable Sample Illumination (VSI) Each LabScan XE can measure in large area of view or 44 mm (1.75 in illuminated) and 50 mm (2 in) measured. If your instrument has VSI, then it can also measure as follows: 25 mm (1.0 in) illumination;... - Page 16 LabScan XE Supplemental Manual for EasyMatch QC...
-
Page 17: Labscan Xe Maintenance And Testing
You may test the repeatability of your LabScan XE as follows: 1. Turn the LabScan XE on and allow it to warm it up for two hours. Meanwhile, clean the black glass and white tile and allow the tiles to return to room temperature. -
Page 18: Cleaning The Labscan Xe
Cleaning the LabScan XE The LabScan XE is NOT waterproof, but you may wipe the exterior of the case with a damp cloth. Also remove the port plate and clean the glass underneath with the included lens brush or with a small... -
Page 19: Labscan Xe Specifications
If this happens, restandardize the instrument before making measurements. HunterLab recommends using a line conditioner with a minimum 600 VA rating and a battery back-up system. -
Page 20: Power Cord Wire Color Code
LabScan XE Supplemental Manual for EasyMatch QC Power Cord Wire Color Code: Color Definition 220V Cord Brown LINE Blue NEUTRAL Green/Yellow SAFETY 110V Cord Black LINE White NEUTRAL Green SAFETY Instrument-Computer Ground Potential Check: Perform this check if the power cord wiring is being changed, such as for replacement of the cord or if changing the plug. -
Page 21: Instrument Performance
LabScan XE Supplemental Manual for EasyMatch QC Instrument Performance Wavelength Range 400-700 nm Wavelength Interval 10 nm Bandpass 10 nm equivalent triangular Photometric Range 0 to 150% Note: Every attempt at accuracy is made, but specifications are subject to change without notice. - Page 22 LabScan XE Supplemental Manual for EasyMatch QC...
-
Page 23: Instrument Replacement, Repair, Problems, And Questions
The HunterLab warranty does not cover consumable items such as lamps, fuses, batteries, etc. An instrument registration card is shipped with each HunterLab instrument. It is important that the instrument owner returns this card promptly upon receipt of equipment. -
Page 24: Shortage
4. Advise HunterLab regarding replacement. Parcel Post Shipment 1. Notify HunterLab at once in writing, giving details of the loss or damage. This information is required for filing a claim. 2. Hold the damaged goods with their container and packaging for possible inspection by postal authorities. -
Page 25: Returns
LabScan XE Supplemental Manual for EasyMatch QC Returns A service request order (SRO) number is required before any items can be returned to HunterLab. Contact HunterLab's Order Processing Department to obtain an SRO for damaged or incorrect parts, or HunterLab Service Department to obtain an SRO to return an instrument for service. -
Page 26: When You Need Assistance
9. Whether the instrument has recently been moved or the computer reconfigured. 10. The name(s) of any HunterLab personnel with whom you have previously discussed the problem. To place an order, for prices on instruments, software, or replacement parts, or to return damaged or incorrect parts, ask for the Order Processing Department. - Page 27 LabScan XE Supplemental Manual for EasyMatch QC HunterLab for service, or to ask questions about the servicing or recalibration of instruments, ask for the HunterLab Service Department. To speak with HunterLab, please call 703-471-6870. The mailing address for HunterLab headquarters is given below. Customers outside the United States should contact their HunterLab distributor for initial assistance.
- Page 28 LabScan XE Supplemental Manual for EasyMatch QC...
-
Page 29: Index
LabScan XE Supplemental Manual for EasyMatch QC Index Accessories, 6 Power required, 19 Black glass, 6 Problems, 23 Broken instruments, 23 Questions, 23 Certificate of traceability, 6 Regulatory notice, 21 Claims, 23 Repair, 23 Communications cable, 6 Repeatability test, 17...
