Views: Spectral Plot; Figure 106. Spectral Plot View; Figure 107. Spectral Plot Options - HunterLab EasyMatch User Manual

Views: Spectral Plot

•
This view provides a plot of wavelength vs. spectral measurement parameter.
•
Press Clear All to remove all the samples to display. Press Select All to enable display of all
samples. To select an individual sample, click on the respective Sample in the list located on
the right edge of the screen.
•
The Samples List is paginated. Click the left and right arrow buttons below the samples list
to navigate between pages.
•
Press and hold on the left/right page number arrows under the sample list to show a small
dialog box. This dialog allows you to select the number of records per page to display and
the page number to display.
•
Spectral Plot Options: There are three choices for spectral plot options:
❖
K/S – mathematical calculation based on reflectance and determined at each
wavelength for the standard and sample.
❖
Reflectance - Displays the reflectance value at each wavelength.
❖
% Strength – Percentage of the ratio of the K/S of the sample to the K/S of the
standard.
•
Uncheck the Options: Show Background, to display the plot with white background color.
User's Manual for Aeros and EasyMatch Essentials v 1.1

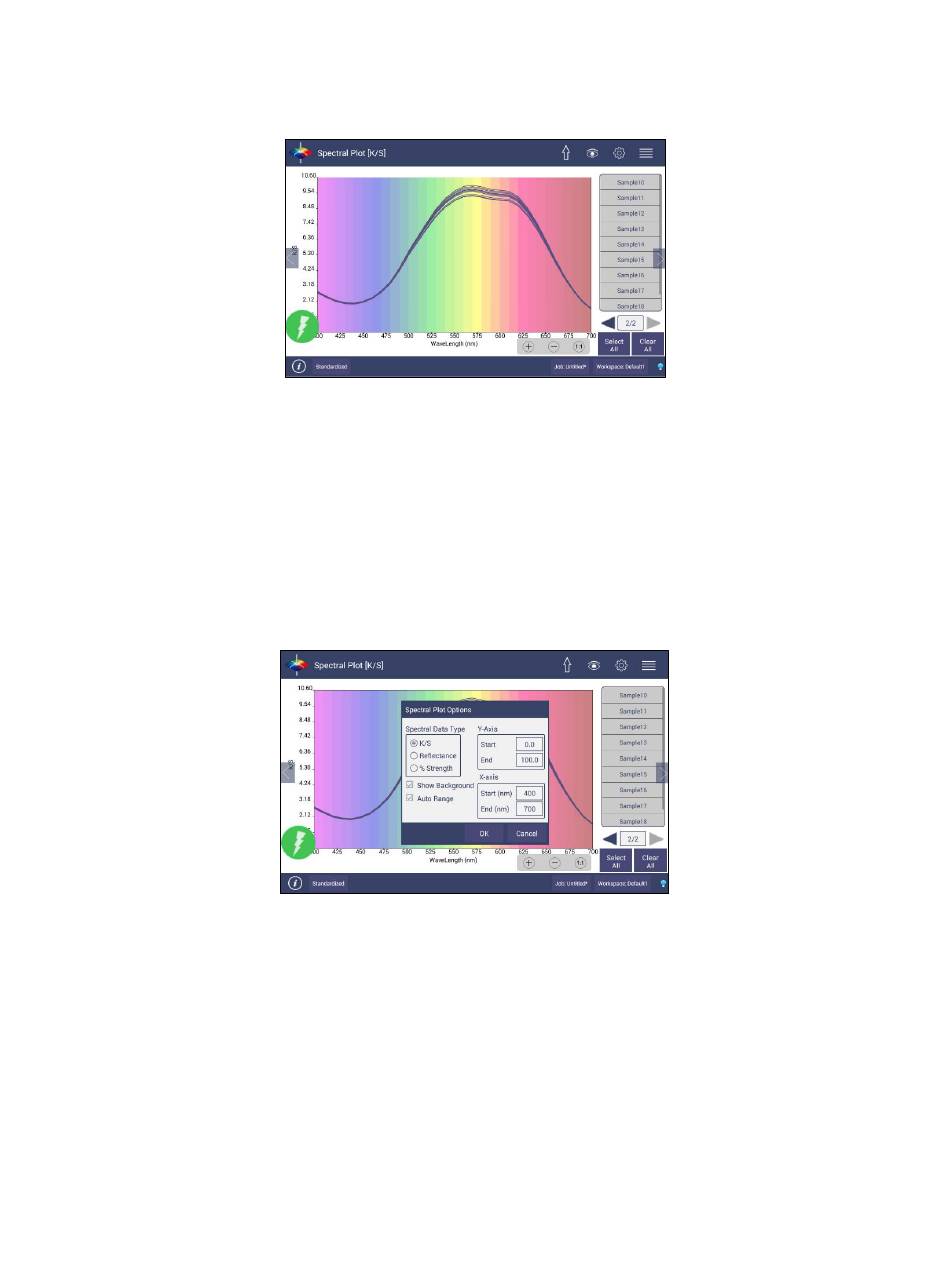

Figure 106. Spectral Plot View

Figure 107. Spectral Plot Options
