Setting Up The Aeros; Standard Accessories; Power Jack; Figure 1. Calibration Box - HunterLab EasyMatch User Manual

The Aeros system contains two major components – the sensor head and the turntable base. The
sensor head contains the spectrophotometer with an LED light source, distance measuring components
and a touch screen for Essentials. The turntable base provides the electronics and the mount for the
sensor with automated vertical positioning and horizontal manual adjustment. The turntable rotates
the product under the optical sensor.

Standard Accessories

•
Calibration Box with calibrated white tile, black glass and green diagnostics tile
•
Certificate of Traceability
•
Power Supply
•
Aeros Quick Start Guide
•
12-in and 6-in Sample Dishes
•
USB Flash Drive

Power Jack

•
The instrument is supplied with a 24 VDC (3.75A) power supply. The power supply is
plugged into the back of the instrument as shown along with the Ethernet port and the USB
port.
Power
User's Manual for Aeros and EasyMatch Essentials v 1.1

Setting Up the Aeros

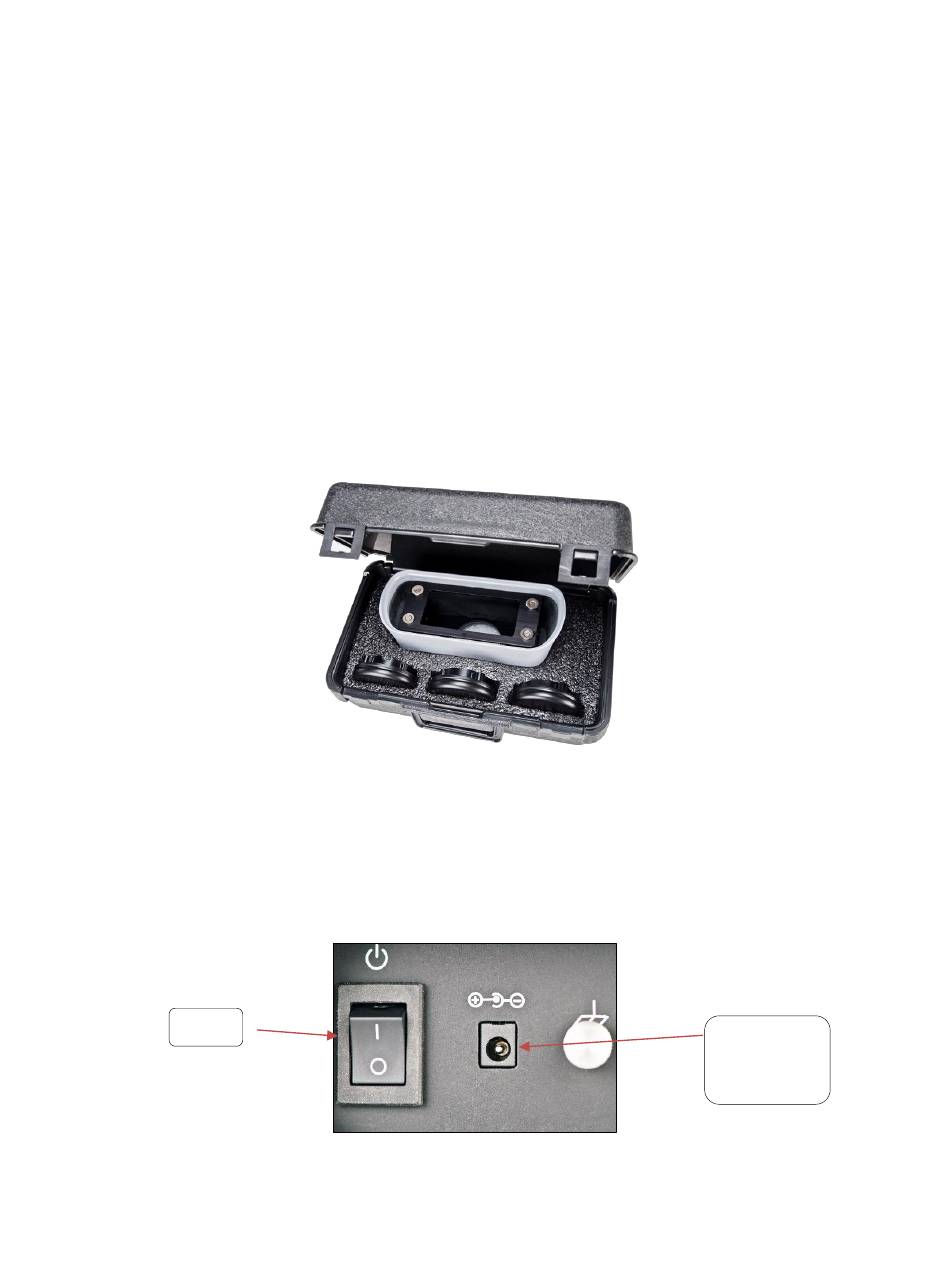

Figure 1. Calibration Box

Figure 2. Rear View with Connectors

Power
Supply
Connection
7
