Check Options: Auto Range to automatically scale the contents to fit. If Auto Range is not
selected, then enter the Y- and X-axis range to display.

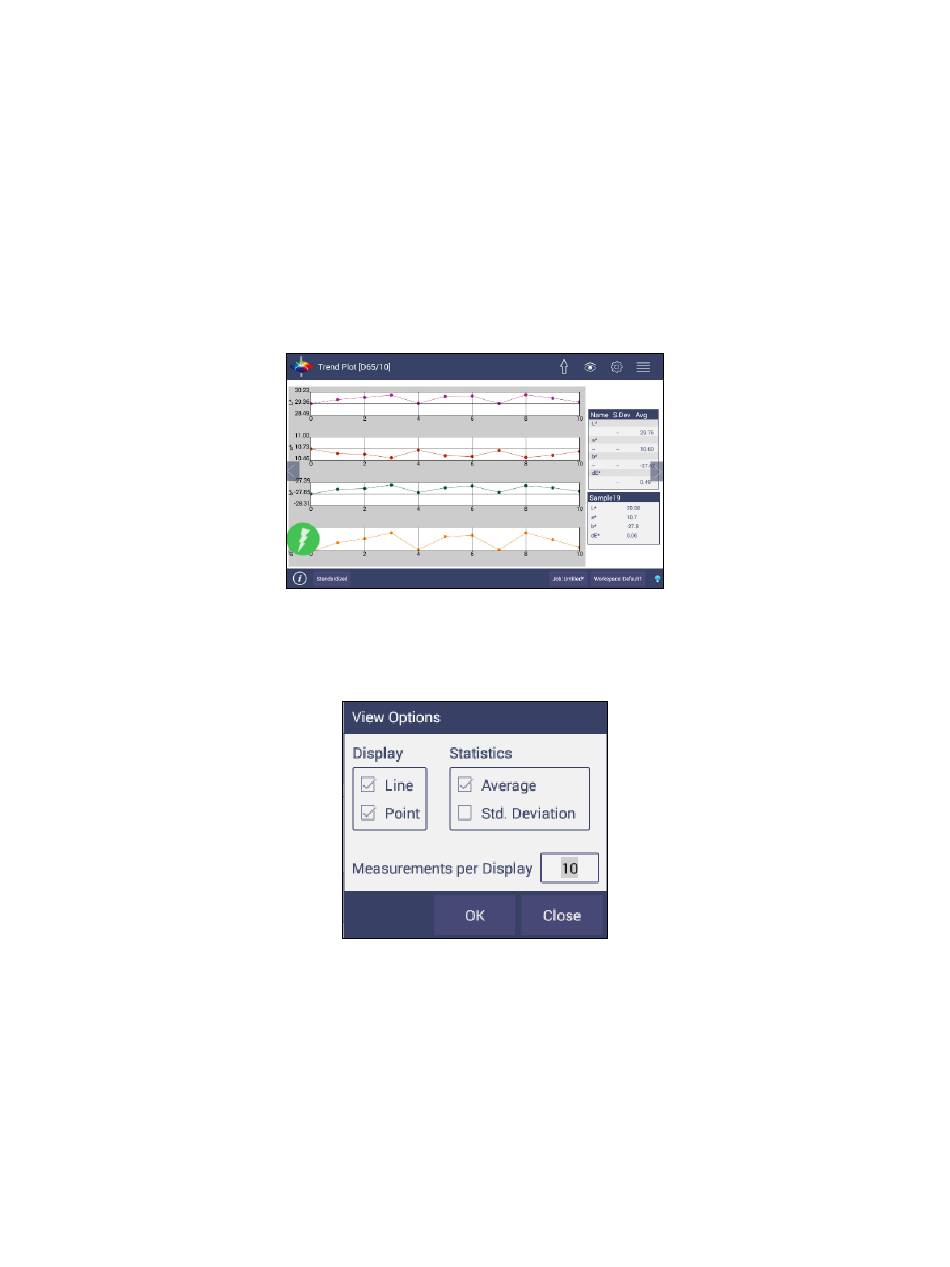

Views: Trend Plot

•
This tool can be used to study the trends in production and identify color variations. There
are four parameters of color measurement (three scale values and optional indice) which
can be represented in four traces. If a sample point is selected in one of the four traces, it is
highlighted in the other 3 traces in blue. The name is shown at the bottom right hand
corner of the View. The Average and Standard Deviation can be shown as per the view
configuration settings.
▪
View Options for the Trend Plot include the type of display, the statistics and the
number of readings per display.
64
User's Manual for Aeros and EasyMatch Essentials v 1.1

Figure 108. Trend Plot

Figure 109. Trend Plot Options
