System Settings: Standardization

▪
From the Tools menu select Standardization. You can also press the Standardization key in
the Status bar as a shortcut. The sensor will move to the top to begin.
▪
Read Black Glass: Attach the standardization box to the sensor. Then attach the black glass
and press READ to continue.
▪
Read White Tile: Remove the black glass and attach the calibrated white tile to the
standardization box. Press READ to continue.
44
User's Manual for Aeros and EasyMatch Essentials v 1.1

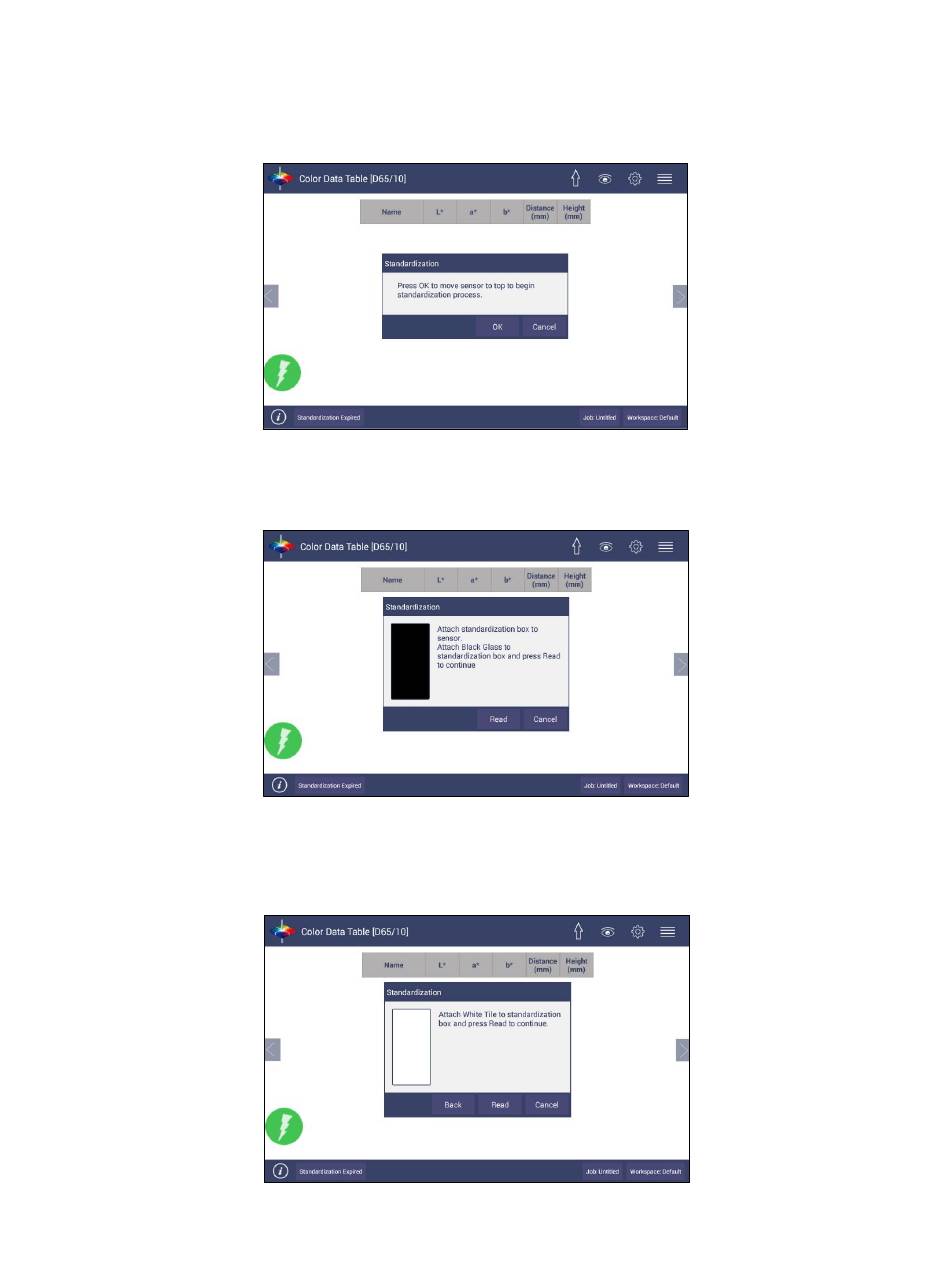

Figure 63. Begin Standardization

Figure 64. Attach Standardization Box with Black Glass

Figure 65. Change to White Tile
