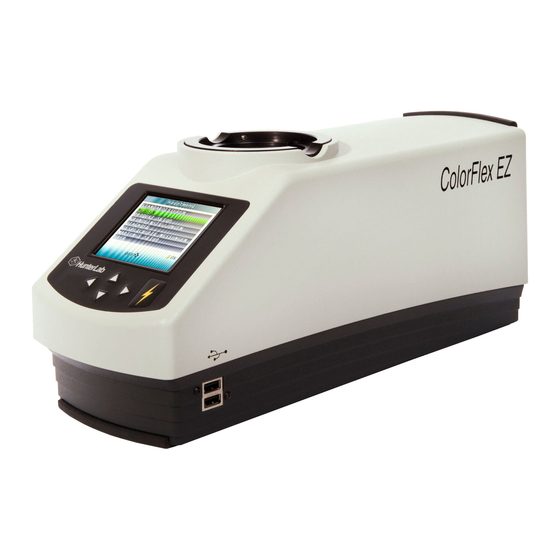

HunterLab ColorFlex EZ Supplemental Manual

Hide thumbs Also See for ColorFlex EZ:
Table of Contents

Advertisement

Quick Links

Download this manual
ColorFlex
EZ
®
Supplemental Manual for EasyMatch
QC
®
Hunter Associates Laboratory
11491 Sunset Hills Road
Reston, Virginia 20190 USA
www.hunterlab.com
A60-1017-662
Manual Version 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ColorFlex EZ and is the answer not in the manual?

Questions and answers

Related Manuals for HunterLab ColorFlex EZ

Summary of Contents for HunterLab ColorFlex EZ

  • Page 1 ColorFlex ® Supplemental Manual for EasyMatch ® Hunter Associates Laboratory 11491 Sunset Hills Road Reston, Virginia 20190 USA www.hunterlab.com A60-1017-662 Manual Version 1.0...
  • Page 2 Teflon is a registered trademark of Dupont. Caution: If the equipment is used in a manner not specified by the HunterLab, the overall safety may be impaired. - The instrument is for indoor use only and not suitable for a wet location.

  • Page 3: Table Of Contents

    ColorFlex EZ Supplemental Manual for EasyMatch QC Contents  COLORFLEX EZ FEATURES ................... 5 ColorFlex EZ Accessories ........................ 6 ColorFlex Options and Sample Devices ................... 6 COLORFLEX EZ INSTALLATION ..................7 Install EasyMatch® QC Software ....................... 7 Activate the SoftKey License ......................8 Add the Sensor ..........................
  • Page 4 ColorFlex EZ Supplemental Manual for EasyMatch QC...

  • Page 5: Colorflex Ez Features

    (400-700 nm) are then analyzed to produce numeric results. This is an objective means of quantifying a sample’s color. ColorFlex EZ is available in one geometry – 45° illumination/0° viewing. The label on the back of the instrument provides information on the serial number.

  • Page 6: Colorflex Ez Accessories

    ColorFlex EZ Supplemental Manual for EasyMatch QC ColorFlex EZ Accessories The following accessories are included with the ColorFlex EZ system and can be found in the provided carrying case: • Black glass - placed at the sample port during standardization of 45°/0° instruments.

  • Page 7: Colorflex Ez Installation

    ColorFlex EZ Supplemental Manual for EasyMatch QC ColorFlex EZ Installation The ColorFlex EZ is simple to set up and attach to your computer. Before operating the ColorFlex EZ with EasyMatch QC, you need to install the batteries and connect the instrument to your computer.

  • Page 8: Activate The Softkey License

    ColorFlex EZ Supplemental Manual for EasyMatch QC Figure 3. Software Key License 6. When the EasyMatch QC installation is finished, select the Option Button next to ‘Yes, I want to restart my computer now’ and then Finish to restart the computer and log back in.
  • Page 9 Figure 5. No License Warning 3. The SoftKey License is uniquely associated with the sensor serial number and is provided on a thumb drive supplied with EasyMatch QC or via email from HunterLab. 4. Go to Help > License Registration > Activation.

  • Page 10: Add The Sensor

    Option #3: Sentinel Key a. If the user has a HunterLab USB hardware key, then it can be used with a new sensor on the same computer. Return to Install, Step 5 (Figure 3) and select the Sentinel Key to continue.
  • Page 11 6. Place the desired port plate at the reflectance port and snap it into place. 7. Turn on the ColorFlex EZ by pressing and holding the Read Button. Allow the instrument to warm up for two hours prior to standardizing and making measurements.
  • Page 12 ColorFlex EZ Supplemental Manual for EasyMatch QC...

  • Page 13: Colorflex Ez Standardization

    The ColorFlex EZ must be standardized on a regular basis to keep it operating properly. Standardization on a ColorFlex EZ model with 45°/0° geometry requires reading of the black glass and the calibrated white tile that are contained in the standards box. Standardization can be done through EasyMatch QC (by selecting Sensor Menu >...
  • Page 14 ColorFlex EZ Supplemental Manual for EasyMatch QC...

  • Page 15: Colorflex Ez Maintenance And Testing

    Cleaning of the ColorFlex EZ Clean the outside surfaces of the ColorFlex EZ using a soft cloth. Do not spray liquids directly on the instrument. Diagnostic Test #1: Running Short Term Repeatability Short Term Repeatability of your instrument may be tested using the calibrated white tile as follows: 1.
  • Page 16 ColorFlex EZ Supplemental Manual for EasyMatch QC...

  • Page 17: Colorflex Ez Specifications

    Operating Conditions ColorFlex EZ can be stored in an area with a temperature range of -20°C to 65°C (-5°F to 150°F) for up to 3 weeks and can be operated under temperature conditions of 10°C to 40°C (50°F to 104°F). For specification-level performance, the recommended temperature range is 21-28°C (70-82°F).

  • Page 18: Instrument Performance

    ColorFlex EZ Supplemental Manual for EasyMatch QC Instrument Performance Spectral Data Range: 400-700 nm Reporting Interval: 10 nm Bandwidth at Half-height 10 nm Photometric Range 0-150% reflectance Measurement Speed (at 23°C) ≤1.5 seconds Measurement Storage Capacity 2000 spectral readings as sample...
  • Page 19 ColorFlex EZ Supplemental Manual for EasyMatch QC...
  • Page 20 ColorFlex EZ Supplemental Manual for EasyMatch QC...

  • Page 21: Instrument Replacement, Repair, Problems, And Questions

    The HunterLab warranty does not cover consumable items such as lamps, fuses, batteries, etc. An instrument registration card is shipped with each HunterLab instrument. It is important that the instrument owner returns this card promptly upon receipt of equipment.

  • Page 22: Shortage

    4. Advise HunterLab regarding replacement. Parcel Post Shipment 1. Notify HunterLab at once in writing, giving details of the loss or damage. This information is required for filing a claim. 2. Hold the damaged goods with their container and packaging for possible inspection by postal authorities.

  • Page 23: Returns

    ColorFlex EZ Supplemental Manual for EasyMatch QC Returns A service request order (SRO) number is required before any items can be returned to HunterLab. Contact HunterLab's Order Processing Department to obtain an SRO for damaged or incorrect parts, or the HunterLab Service Department to obtain an SRO to return an instrument for service.

  • Page 24: When You Need Assistance

    9. Whether the instrument has recently been moved or the computer reconfigured. 10. The name(s) of any HunterLab personnel with whom you have previously discussed the problem. To place an order, for prices on instruments, software, or replacement parts, or to return damaged or incorrect parts, ask for the Order Processing Department.
  • Page 25 ColorFlex EZ Supplemental Manual for EasyMatch QC HunterLab for service, or to ask questions about the servicing or recalibration of instruments, ask for the HunterLab Service Department. To speak with HunterLab, please call 703-471-6870. The mailing address for HunterLab headquarters is given below. Customers outside the United States should contact their HunterLab distributor for initial assistance.

  • Page 26: Index

    ColorFlex EZ Supplemental Manual for EasyMatch QC Index adapter, 6 Problems, 20 Accessories, 6 Questions, 20 Black glass, 6 Regulatory notice, 18 Broken instruments, 20 Repair, 20 Certificate of traceability, 6 Repeatability test, 15 Claims, 20 Replacement, 20 Cleaning the ColorFlex EZ, 15...
