Summary of Contents for HunterLab LabScan XE

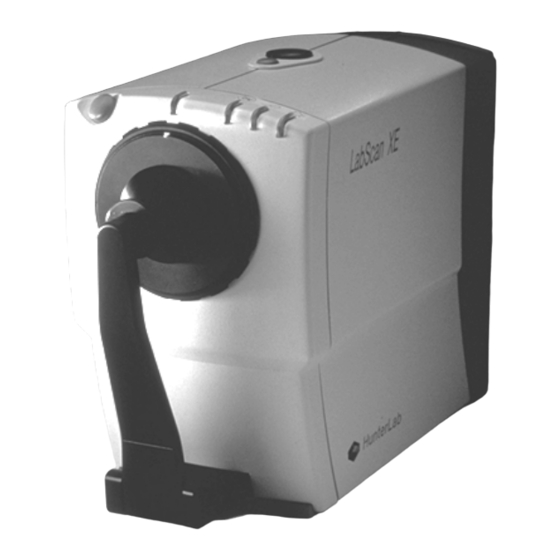

- Page 1 (217) 352-9330 | Click HERE Find the HunterLab LabScan XE at our website:...
- Page 2 ® LabScan XE User’s Manual A60-1010-862 Manual Version 1.2 An ISO 9001 Certified Company Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 3 LabScan XE User’s Manual Manual Version 1.2 January 2003 A60-1010-862 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 4 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 5 Copyrights and Trademarks This documentation contains proprietary information of Hunter Associates Laboratory, Inc. Its reproduction, in whole or in part, without express written consent of Hunter Associates Laboratory, Inc. is prohibited. IBM, IBM-PC, and PC/DOS are registered trademarks of International Business Machines Corporation. MS-DOS and Windows are registered trademarks of Microsoft Corporation.
- Page 6 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 7 Safety Notes For your safety when using your color measurement equipment, you should pay particular attention to the following types of statements in this User’s Manual. Each description is shown in its representative typeface. Notice: General safety instruction that should be observed at all times while operating the instrument.
- Page 8 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 9: Table Of Contents
Table of Contents HOW THE USER’S MANUAL IS ORGANIZED ........... 1-1 INTRODUCTION TO YOUR LABSCAN XE SYSTEM........ 2-1 LabScan XE Features......................2-1 Indicator Lights ........................2-1 The Macro Button ......................... 2-2 Accessories..........................2-3 Options and Sample Devices....................2-4 Automated Variable Sample Illumination................2-4 Automated UV Control ...................... - Page 10 Measurement Mode....................... 6-4 Instrument Performance......................6-5 Regulatory Notice ........................6-6 COLOR MEASUREMENT NOTES ..............7-1 Selecting, Preparing, and Presenting Samples..............7-1 More on Sample Presentation to the Instrument ..............7-2 INSTRUMENT REPLACEMENT, REPAIR, PROBLEMS, AND QUESTIONS ..........................8-1 Warranty ..........................8-1 Shipping Claims........................
-
Page 11: How The User's Manual Is Organized
How the User’s Manual is Organized Welcome to the LabScan XE User’s Manual! Take some time now to read through the manual before you begin using the instrument. The User’s Manual is divided into the following chapters: Introduction to your LabScan XE System... - Page 12 How the User’s Manual is Organized 01/03 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 13: Introduction To Your Labscan Xe System
The LabScan XE possesses the following default features: Indicator Lights The LabScan XE’s indicator light feature lets you know what mode of standardization is currently in use. There is also an “In progress” light next to the indicator lights that flashes when a reading is in progress or a motor is in motion. -
Page 14: The Macro Button
The macro button, also known as the “Sensor button,” can be used to perform any command or macro assigned to it through the operational software. Introduction to Your LabScan XE System 01/03 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 15: Accessories
Accessories The following accessories are provided with the LabScan XE system and can be found in the standards case: White calibrated tile - placed at the reflectance port during standardization. Black glass - placed at the reflectance port during standardization. -
Page 16: Options And Sample Devices
There are many options and devices available for positioning samples at the measurement port of the LabScan XE and for making the instrument easier to use. Any or all of the following options and sample devices may be included with your LabScan XE. HunterLab part numbers are included for your convenience in ordering. -
Page 17: Automated Uv Control
Automated UV Control A pair of ultraviolet (UV) exclusion filters is available as an option to the LabScan XE. The filter pair includes a 380-nm UV control filter and a 420-nm UV cutoff filter. The 420-nm UV filter may be controlled separately, placed in or out of the light path, or the filters may be controlled together using the UV control options of “Nominal”... -
Page 18: Sample Clamp
Clamp arm Button to move Clamp arm clamp arm in and support Button to raise and lower the clamp arm Introduction to Your LabScan XE System 01/03 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 19: Sensor Port-Down Stand
LabScan XE until it stops. Release the clamp arm trigger to raise or lower the clamp arm on the stand to a position where samples can be held firmly at the sample port using the spring action of the sample clamp. -
Page 20: Compression Cell Set
Supply clean, filtered, compressed air to the compression cell through the 1/8 NPT air fitting at the top of the arm. The maximum air pressure to be used is 50 psi. Introduction to Your LabScan XE System 01/03 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 21: Port Inserts
Make sure that the flat portion of the insert is facing outward with the magnetized portion toward the interior of the sensor. The white line should face the front of the sensor. 01/03 Introduction to Your LabScan XE System Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 22: Port Insert For Capsules
VSI option is recommended for translucent products so that an illuminated area smaller than the port size may be used. Sample cup cover Sample cup port plate Glass sample cup Plastic ring Ceramic disk 2-10 Introduction to Your LabScan XE System 01/03 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 23: Sample Cup Port Plate
(sold separately). The ring and disk set are provided for use when measuring translucent liquids, transparent liquids, and semi-solids to exclude external light and provide a consistent white background 01/03 Introduction to Your LabScan XE System 2-11 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 24: Universal Software
Universal Software is a Windows-based computer program that performs numerical calculations on data measured by the LabScan XE, stores sample measurements, and provides graphical representations of data. The LabScan XE may be directly controlled by the software. Instructions for using Universal Software are provided in its separate User’s Manual. -
Page 25: Installation
Installation The following instructions guide you through the initial installation of your LabScan XE system. 1. Unpack all cartons and remove wrappings and cable ties. Inspect for damage and notify the carrier and HunterLab immediately if any is discovered. Save the packing materials in case it becomes necessary to return the instrument to the factory. - Page 26 Connector for communications Power cord cable connector Jack for foot switch On/off switch CAUTION Keep the cables free from all air intake and exhaust vents on the computer or it might overheat. Note: Covering the sample port with a spare tile or the sample clamp when the instrument is not in use prevents dust from accumulating inside the instrument.
-
Page 27: Standardization
Standardization The LabScan XE must be standardized on a regular basis to keep it operating properly. Standardization sets the top and bottom of the scale for the neutral axis. During standardization the bottom of the scale is set first. For this, you simulate the case where all the light is absorbed by the sample. - Page 28 standardize after changing the orientation of the sensor, such as from port up to port forward. After standardization, you may proceed with sample measurement. Standardization 01/03 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 29: Maintenance And Testing
You may test the repeatability of your LabScan XE as follows: 1. Turn the LabScan XE on and allow it to warm it up for two hours. Meanwhile, clean the black glass and white tile and allow the tiles to return to room temperature. -
Page 30: Running The Green Tile Test
You can then recall and display all green tile readings periodically and see any trends that develop over time. The LabScan XE should be in its standard configuration, with the 2-inch port plate installed and the UV filter nominal, when these readings are made. The illuminant and observer used in your display must match those on the green tile. -
Page 31: Maintaining The Instrument Standards
When not using the standards, keep them in the standards case. Inspect the standards for dust and fingerprints before standardizing the LabScan XE. The white and green tiles and black glass can be cleaned using a soft nylon-bristle brush, warm water, and a laboratory-grade detergent such as SPARKLEEN. -
Page 32: Cleaning The Labscan Xe
Cleaning the LabScan XE The LabScan XE is NOT waterproof, but you may wipe the exterior of the case with a damp cloth. Also remove the port plate and clean the glass underneath with the included lens brush or with a small amount of soapy water on a lint-free cloth or towel. -
Page 33: Specifications
If this happens, restandardize the instrument before making measurements. HunterLab recommends using a line conditioner with a minimum 600 VA rating and a battery back-up system. -
Page 34: Environmental Requirements
Environmental Requirements Operating temperature 10-40°C (50-104°F) Storage temperature -21-66°C (-5-150°F) Operating humidity (relative, non-condensing) 10-90% Specifications 01/03 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 35: Power Required
Power Required Voltage: 100-240 VAC, 47/63 Hz. Single Phase. 180 VA maximum. Fuse: 1.4A, SB. Installation Category (Over Voltage): II. Power Cord Wire Color Code: Color Definition 220V Cord Brown LINE Blue NEUTRAL Green/Yellow SAFETY 110V Cord Black LINE White NEUTRAL Green SAFETY... -
Page 36: Conditions Of Illumination And Viewing
Conditions of Illumination and Viewing Illumination Pulsed xenon lamp with 1 billion flashes minimum. Diameter of opening in port plate: - 2.00 inch (50 mm) (standard). - 1.20 inch (30 mm) (optional). - 0.70 inch (17 mm) (optional). - 0.40 inch (10 mm) (optional). - 0.20 inch (5 mm) (optional). -
Page 37: Instrument Performance
Instrument Performance Wavelength Range 400-700 nm Wavelength Interval 10 nm Bandpass 10 nm equivalent triangular Photometric Range 0 to 150% 01/03 Specifications Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 38: Regulatory Notice
Regulatory Notice A copy of the Declaration of Conformity according to ISO/IEC Guide 22 and EN 45014 follows on the next page. This document applies only to voltage levels of 220V - 240V. Specifications 01/03 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 39 ISO/IEC Guide 22 and EN 45014 Manufacturer's Name: Hunter Associates Laboratory, Inc. Manufacturer's Address: 11491 Sunset Hills Road Reston, Virginia U.S.A. 20190 Declares that the Product: Product Name: LabScan XE Model: LSXE-2, LSXE/VSI-2 Conforms to the following Product Specifications: Safety: EN 61010-1:1993 EMC: EN55011:1991...
- Page 40 Specifications 08/01 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 41: Color Measurement Notes
Color Measurement Notes The LabScan XE can be used to measure the color of a variety of products. Its 0°/45° geometry “sees” color the way the human eye sees color, its circumferential viewing reduces the effect of sample directionality by detecting the light evenly from the entire measured surface, and its specular excluded mode takes into account the entire appearance of samples, including the color component and the geometric component (gloss and texture). -
Page 42: More On Sample Presentation To The Instrument
Translucent samples should be measured with a larger port opening than illumination area (if VSI was purchased) to allow light to escape. Light trapped in the sample can distort the color. The LabScan XE measuring fabric. Fluorescing Samples For some applications, the elimination of fluorescence from a measurement is important. - Page 43 LabScan XE measuring plastic pellets using the 2.5-inch glass sample cup. If you need more information, HunterLab’s Measurement Methods on the Web collection at www.hunterlab.com/applicationnotes/index.html includes step-by-step illustrated instructions for using the LabScan XE to measure various types of samples. 01/03 Color Measurement Notes Artisan Technology Group - Quality Instrumentation ...
- Page 44 Color Measurement Notes 01/03 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 45: Instrument Replacement, Repair, Problems, And Questions
Technical Assistance. Warranty HunterLab warrants that all instruments it manufactures will be free from defects in material and workmanship under normal use and service. Our obligation under this warranty is limited to repairing or replacing any defective parts which our examination discloses to have been factory defective when returned to us by prepaid transportation. -
Page 46: Shipping Claims
4. Advise HunterLab regarding replacement. Parcel Post Shipment 1. Notify HunterLab at once in writing, giving details of the loss or damage. This information is required for filing a claim. 2. Hold the damaged goods with their container and packaging for possible inspection by postal authorities. -
Page 47: Incorrect Shipment
3. Ascertain that the item was not removed by unauthorized personnel prior to complete unpacking and checking. 4. Notify HunterLab immediately of the shortage in writing. Incorrect Shipment Perform the following procedure if material received does not correspond with your order. -
Page 48: Returns
Tehcnical Support for maintenance or repair instructions. Many times, this on-the-spot diagnosis is all that is required. If repair is required, HunterLab offers two means of servicing. The instrument may be returned to a HunterLab service facility for repair or a HunterLab Service Department technician can come to your location to perform on-site repair. -
Page 49: When You Need Assistance
When you have a problem with an instrument or software or need technical advice concerning a specific application, you may contact HunterLab for assistance. In order to help us help you, please have the following information available prior to telephoning HunterLab. - Page 50 Instrument Replacement, Repair, Problems, and Questions 01/03 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 51 How the user's manual is organized..................... 1-1 Illumination..........................6-4 Incorrect shipment ........................8-3 Indicator lights ..........................2-1 Installation............................ 3-1 Instrument performance ....................... 6-5 Introduction to your LabScan XE system..................2-1 Lens brush............................ 2-3 Macro button..........................2-2 Maintenance..........................5-1 Maintaining the instrument standards..................5-3 Non-opaque samples........................7-2 Non-slip pad for the sample clamp ....................
- Page 52 Physical characteristics ........................ 6-1 Port insert for capsules....................... 2-11 Port inserts ........................... 2-9 Power required ..........................6-3 Preparing samples ........................7-1 Presenting samples........................7-1 Problems ............................8-1 Questions............................8-1 Regulatory notice ......................... 6-6 Repair............................8-1 Repeatability test.......................... 5-1 Replacement..........................8-1 Retroviewer..........................
