Under the Job function, the following tasks can be accomplished:

Jobs vs. Workspace: A job consists of samples measured according to a specific workspace. A

workspace is a template with measurement conditions such as standard & tolerances, Color Scale,

Index, illuminant, etc. There can be only one workspace associated with a job. The main tool bar

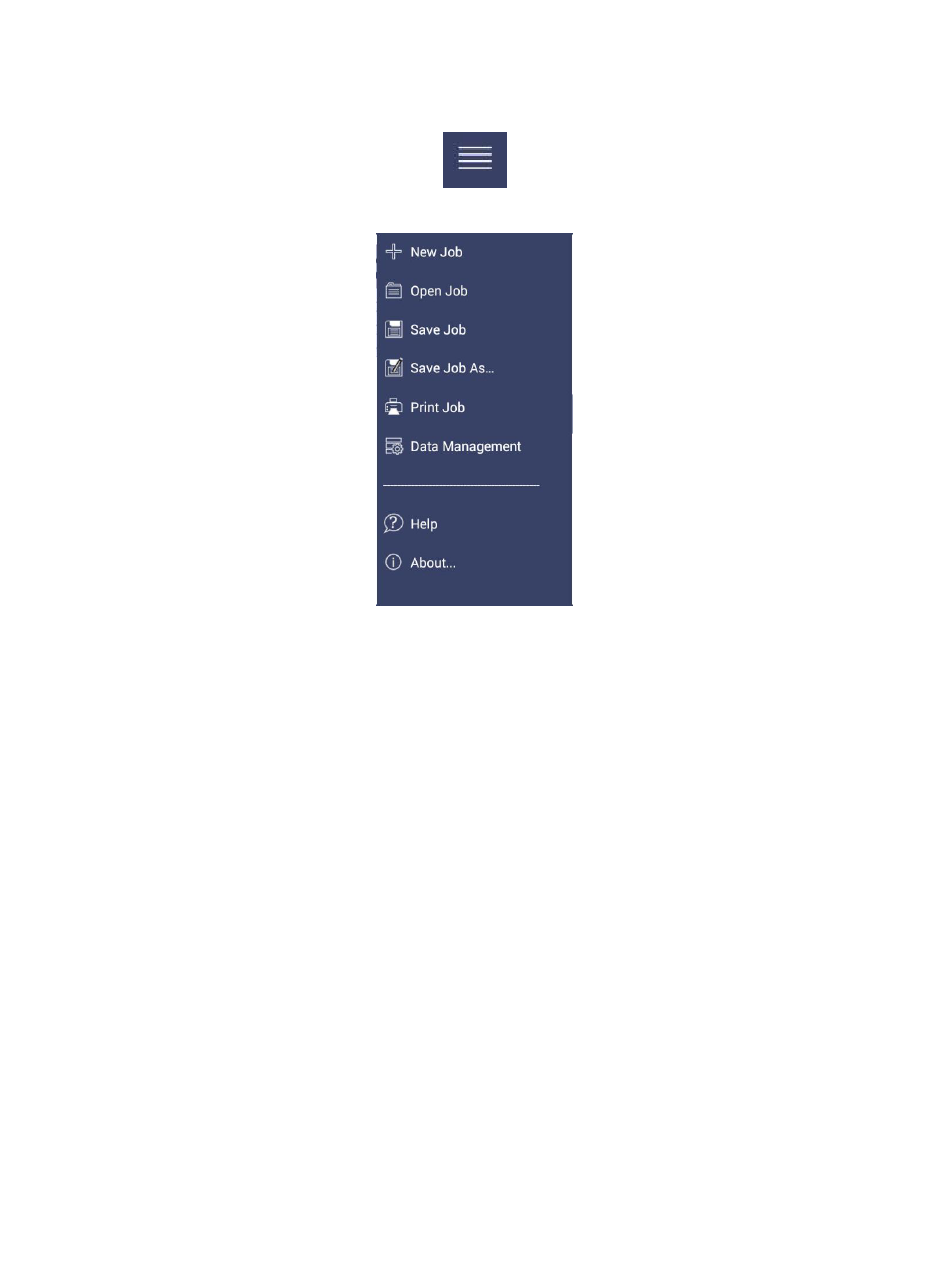

provides the options to create a new job, open an existing job and save a job.

•

When click New Job (Shortcut: press Workspace name in the lower right status bar), the

Load Workspace dialog will pop out. The default selected workspace is the current

workspace. User can change the workspace and click Load then the selected workspace is

opened in the new job. Once the Workspace has been loaded to the New Job, the

Workspace name associated with this job cannot be edited.

•

Open a saved Job: A list of available jobs under the current path are displayed for selection.

If the job that is needed exists in another folder, then it is an option to change the folder.

When the job to be opened is displayed select the file and press Open. We also provide a

short cut for Jobs: Open in main tool bar.

•

Shortcut: press job name in the status bar on the lower right.
