Remove the calibration box when standardization is complete. The instrument is ready to
Read Samples.

System Settings: Diagnostics

The performance diagnostics are Repeatability and a Green Tile Test.

Testing the Aeros for Colorimetric Repeatability

•
The Repeatability Test assesses how consistently the instrument can measure
color. To begin the sample pan should be free of samples and obstacles. Click
New button to start the repeatability test and the user is prompted to press OK
to standardize. All sample readings must be within the tolerances to pass the
test.
User's Manual for Aeros and EasyMatch Essentials v 1.1

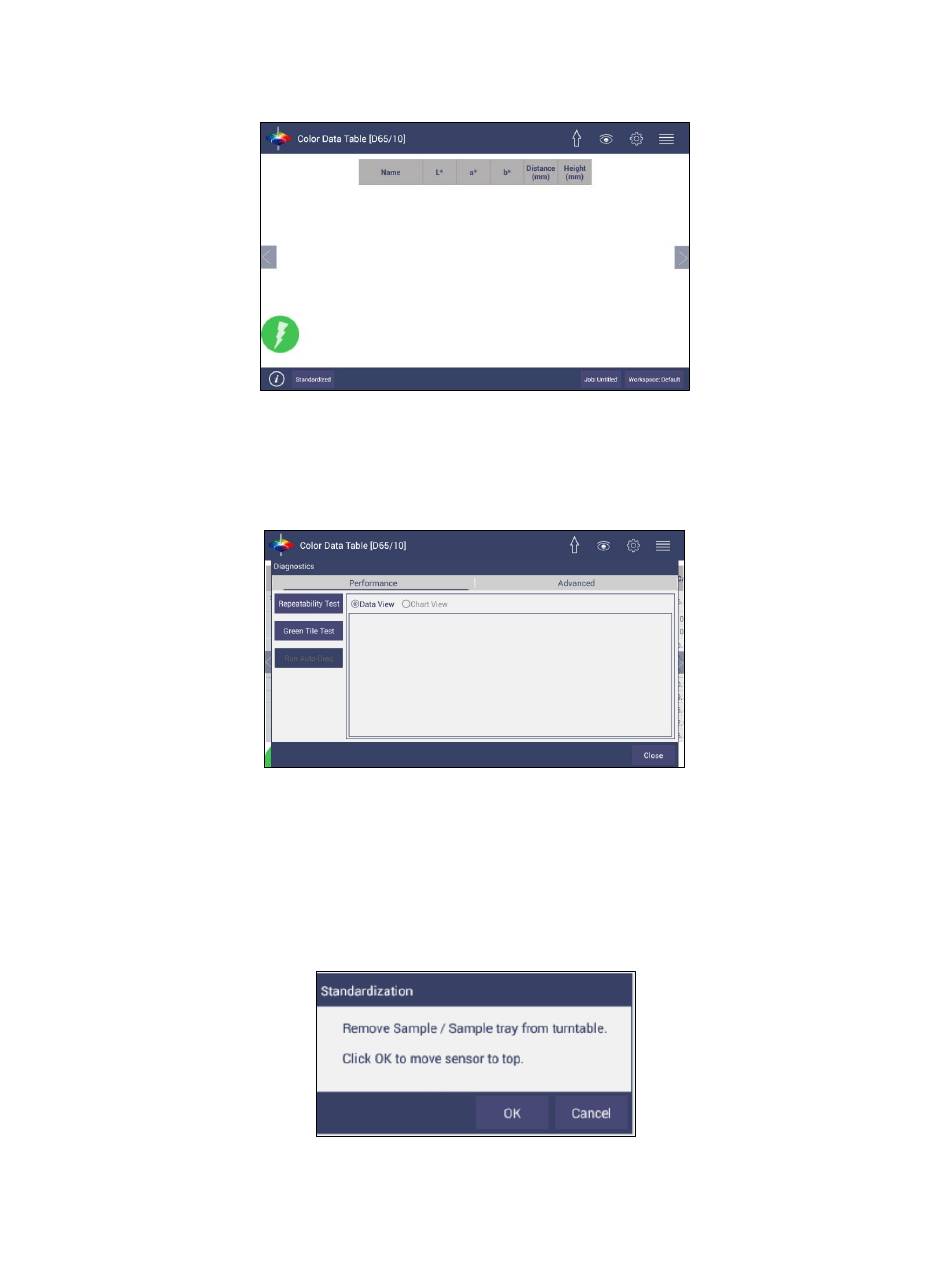

Figure 66. Standardization is Complete

Figure 67. Performance Diagnostics Menu

Figure 68. Set up for Colorimetric Repeatability
