View Options:Traces set the ranges for the traces or allow selection of Auto Range.
Trace 1 to 3 uses the current Color Measurement Scale and Trace 4 will allow for
measurement of differences or an index. The user can select which Traces to view
and set control limits as a percent.

Views: Color Plot

•
This shows the sample location in two-dimensional Color Space with respect to the standard
for difference measurements or the samples in absolute measurement. For differences, the
standard is the center point of the plot and the samples are plotted separately on the graph.
•
The displayed samples are shown in a list box on the right of the screen. The color plot can
be zoomed, and the data points can be viewed in detail.
•
Press and hold on the left/right page number arrows to show a small dialog box. This dialog
allows you to select the number of records per page to display and the default page number
to display.
User's Manual for Aeros and EasyMatch Essentials v 1.1

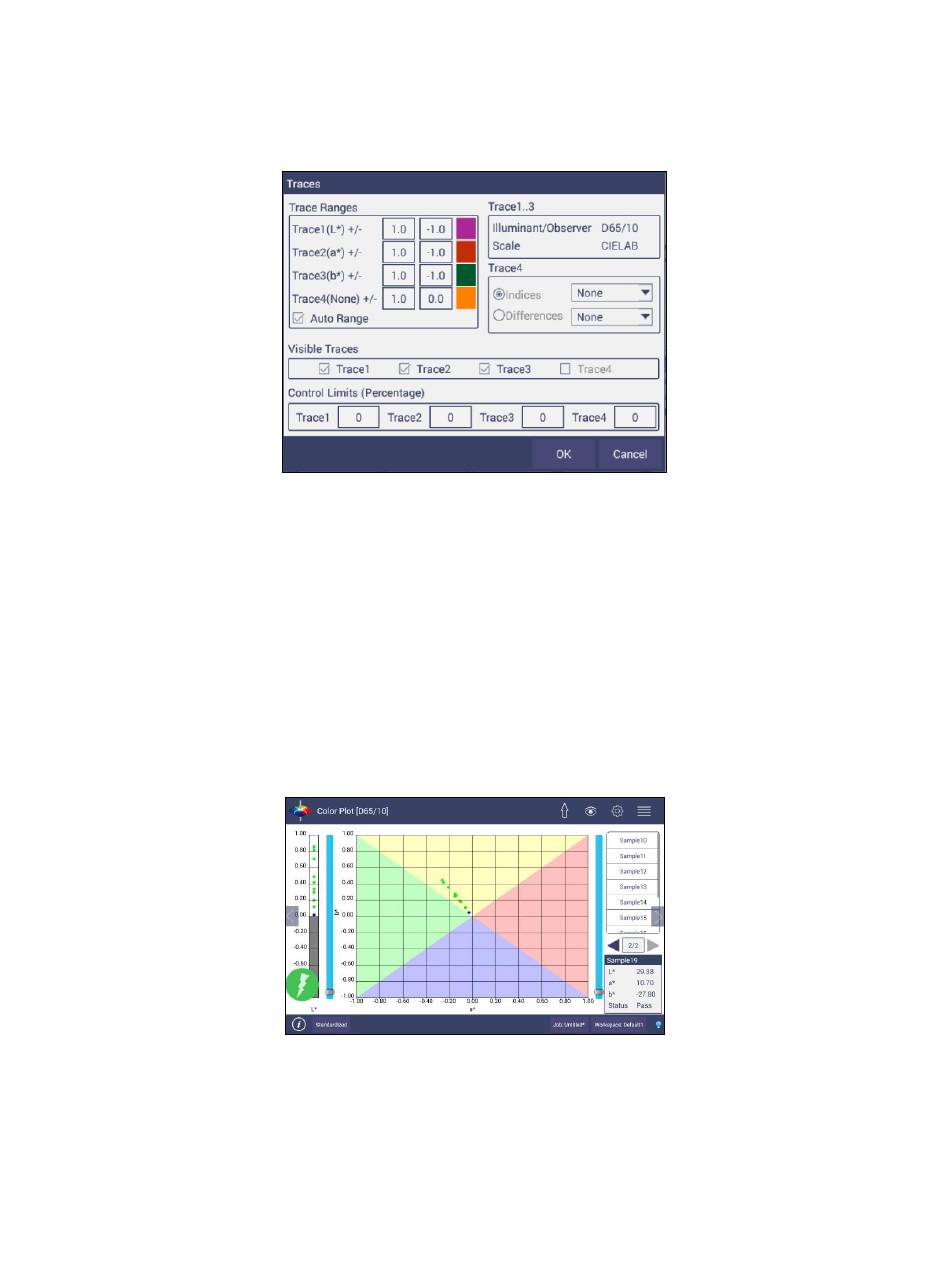

Figure 110. Trend Plot Traces

Figure 111. Color Plot View
