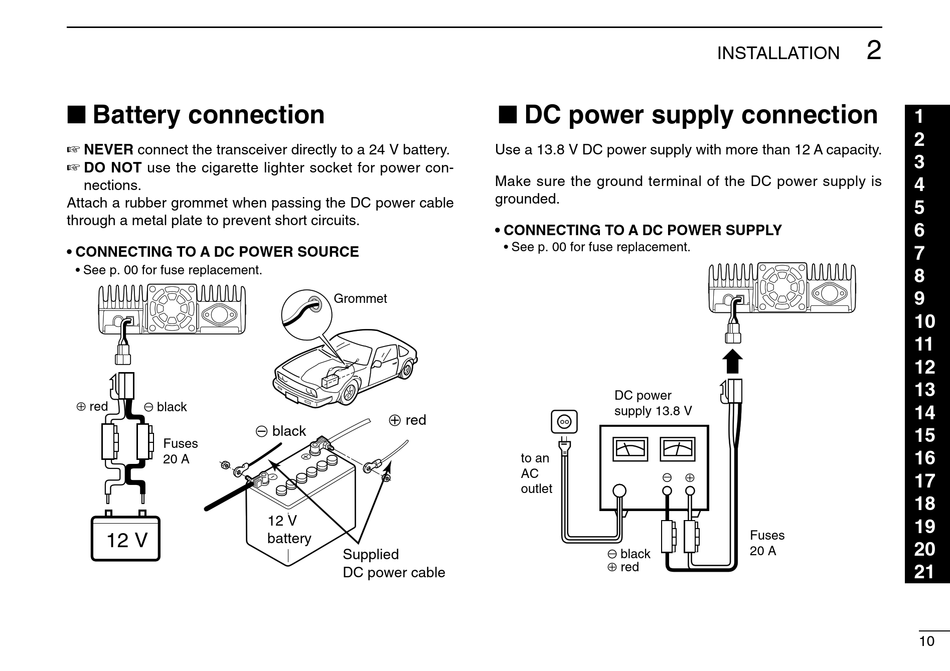

I Battery connection

NEVER connect the transceiver directly to a 24 V battery.
DO NOT use the cigarette lighter socket for power con-
nections.
Attach a rubber grommet when passing the DC power cable
through a metal plate to prevent short circuits.
• CONNECTING TO A DC POWER SOURCE
• See p. 00 for fuse replacement.
−
⊕
red black
Fuses
20 A
12 V
Grommet
+ red
_ black
12 V
battery
Supplied
DC power cable

I DC power supply connection

Use a 13.8 V DC power supply with more than 12 A capacity.
Make sure the ground terminal of the DC power supply is
grounded.
• CONNECTING TO A DC POWER SUPPLY
• See p. 00 for fuse replacement.
DC power
supply 13.8 V
to an
AC −
outlet
−
black
⊕
red
INSTALLATION
⊕
Fuses
20 A
