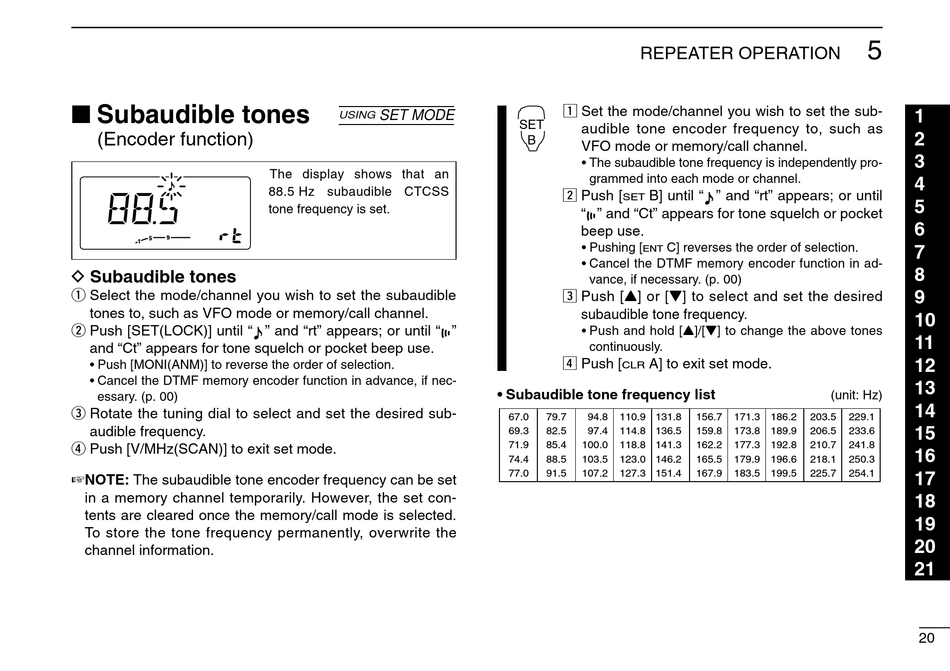

I Subaudible tones
(Encoder function)
D Subaudible tones
q Select the mode/channel you wish to set the subaudible
tones to, such as VFO mode or memory/call channel.
w Push [SET(LOCK)] until " " and "rt" appears; or until " "
and "Ct" appears for tone squelch or pocket beep use.
• Push [MONI(ANM)] to reverse the order of selection.
• Cancel the DTMF memory encoder function in advance, if nec-
essary. (p. 00)
e Rotate the tuning dial to select and set the desired sub-
audible frequency.
r Push [V/MHz(SCAN)] to exit set mode.
NOTE: The subaudible tone encoder frequency can be set
in a memory channel temporarily. However, the set con-
tents are cleared once the memory/call mode is selected.
To store the tone frequency permanently, overwrite the
channel information.
SET MODE
USING
The display shows that an
88.5 Hz subaudible CTCSS
tone frequency is set.
REPEATER OPERATION
z Set the mode/channel you wish to set the sub-
SET
audible tone encoder frequency to, such as
B
VFO mode or memory/call channel.
• The subaudible tone frequency is independently pro-
grammed into each mode or channel.
x Push [
B] until " " and "rt" appears; or until
SET
" " and "Ct" appears for tone squelch or pocket
beep use.
• Pushing [ C] reverses the order of selection.
ENT
• Cancel the DTMF memory encoder function in ad-
vance, if necessary. (p. 00)
c Push [Y] or [Z] to select and set the desired
subaudible tone frequency.
• Push and hold [Y]/[Z] to change the above tones
continuously.
v Push [
A] to exit set mode.
CLR
• Subaudible tone frequency list
67.0 79.7 94.8 110.9 131.8
69.3 82.5 97.4 114.8 136.5
71.9 85.4 100.0 118.8 141.3
74.4 88.5 103.5 123.0 146.2
77.0 91.5 107.2 127.3 151.4
5
(unit: Hz)
156.7 171.3 186.2 203.5 229.1
159.8 173.8 189.9 206.5 233.6
162.2 177.3 192.8 210.7 241.8
165.5 179.9 196.6 218.1 250.3
167.9 183.5 199.5 225.7 254.1
