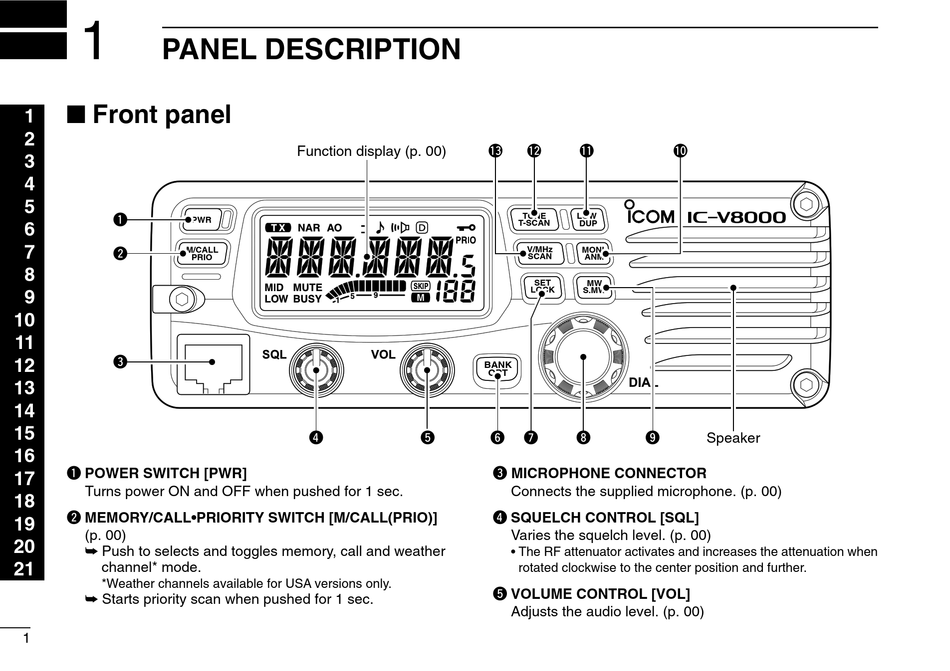

PANEL DESCRIPTION

I Front panel

1
2
3
4
5
q
PWR
6
7 w
M/CALL
PRIO
8
9
10
11
e
12
13
14
15
16
q POWER SWITCH [PWR]
17
Turns power ON and OFF when pushed for 1 sec.
18
w MEMORY/CALL•PRIORITY SWITCH [M/CALL(PRIO)]
19
(p. 00)
20
➥ Push to selects and toggles memory, call and weather
21 channel* mode.
*Weather channels available for USA versions only.
➥ Starts priority scan when pushed for 1 sec.
1
Function display (p. 00)
r t
!3 !2 !1
TONE LOW
T-SCAN
DUP
V/MHz
MONI
SCAN
ANM
SET MW
LOCK
S.MW
BANK
OPT
y u i o
e MICROPHONE CONNECTOR
Connects the supplied microphone. (p. 00)
r SQUELCH CONTROL [SQL]
Varies the squelch level. (p. 00)
• The RF attenuator activates and increases the attenuation when
rotated clockwise to the center position and further.
t VOLUME CONTROL [VOL]
Adjusts the audio level. (p. 00)
!0
Speaker
