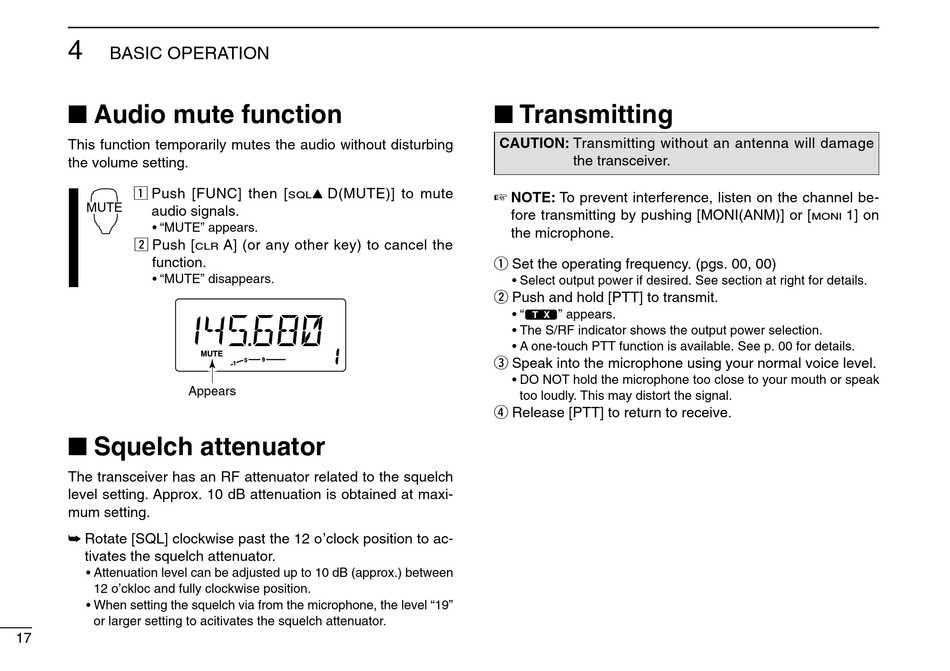

I Audio Mute Function; I Squelch Attenuator - Icom IC-V8000 Instruction Manual

4
BASIC OPERATION

I Audio mute function

This function temporarily mutes the audio without disturbing
the volume setting.
z Push [FUNC] then [
MUTE
audio signals.
• "MUTE" appears.
x Push [
CLR
function.
• "MUTE" disappears.
Appears

I Squelch attenuator

The transceiver has an RF attenuator related to the squelch
level setting. Approx. 10 dB attenuation is obtained at maxi-
mum setting.
➥ Rotate [SQL] clockwise past the 12 o'clock position to ac-
tivates the squelch attenuator.
• Attenuation level can be adjusted up to 10 dB (approx.) between
12 o'ckloc and fully clockwise position.
• When setting the squelch via from the microphone, the level "19"
or larger setting to acitivates the squelch attenuator.
17
D(MUTE)] to mute
Y
SQL
A] (or any other key) to cancel the
I Transmitting
CAUTION: Transmitting without an antenna will damage
the transceiver.
NOTE: To prevent interference, listen on the channel be-
fore transmitting by pushing [MONI(ANM)] or [
the microphone.
q Set the operating frequency. (pgs. 00, 00)
• Select output power if desired. See section at right for details.
w Push and hold [PTT] to transmit.
• "$" appears.
• The S/RF indicator shows the output power selection.
• A one-touch PTT function is available. See p. 00 for details.
e Speak into the microphone using your normal voice level.
• DO NOT hold the microphone too close to your mouth or speak
too loudly. This may distort the signal.
r Release [PTT] to return to receive.
1] on
MONI
