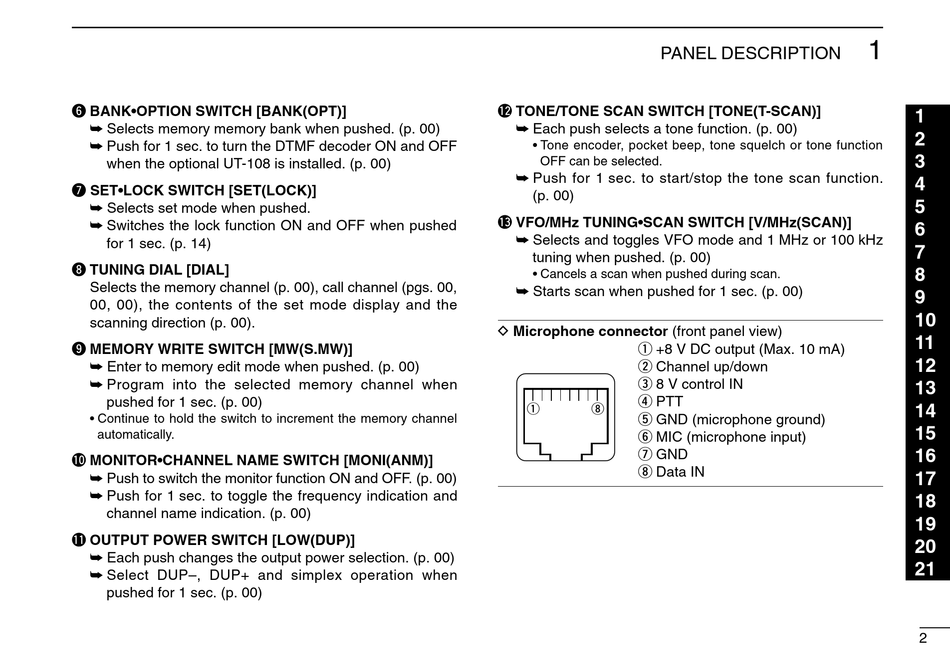

y BANK•OPTION SWITCH [BANK(OPT)]
➥ Selects memory memory bank when pushed. (p. 00)
➥ Push for 1 sec. to turn the DTMF decoder ON and OFF
when the optional UT-108 is installed. (p. 00)
u SET•LOCK SWITCH [SET(LOCK)]
➥ Selects set mode when pushed.
➥ Switches the lock function ON and OFF when pushed
for 1 sec. (p. 14)
i TUNING DIAL [DIAL]
Selects the memory channel (p. 00), call channel (pgs. 00,
00, 00), the contents of the set mode display and the
scanning direction (p. 00).
o MEMORY WRITE SWITCH [MW(S.MW)]
➥ Enter to memory edit mode when pushed. (p. 00)
➥ Program into the selected memory channel when
pushed for 1 sec. (p. 00)
• Continue to hold the switch to increment the memory channel
automatically.
!0 MONITOR•CHANNEL NAME SWITCH [MONI(ANM)]
➥ Push to switch the monitor function ON and OFF. (p. 00)
➥ Push for 1 sec. to toggle the frequency indication and
channel name indication. (p. 00)
!1 OUTPUT POWER SWITCH [LOW(DUP)]
➥ Each push changes the output power selection. (p. 00)
➥ Select DUP–, DUP+ and simplex operation when
pushed for 1 sec. (p. 00)
PANEL DESCRIPTION
!2 TONE/TONE SCAN SWITCH [TONE(T-SCAN)]
➥ Each push selects a tone function. (p. 00)
• Tone encoder, pocket beep, tone squelch or tone function
OFF can be selected.
➥ Push for 1 sec. to start/stop the tone scan function.
(p. 00)
!3 VFO/MHz TUNING•SCAN SWITCH [V/MHz(SCAN)]
➥ Selects and toggles VFO mode and 1 MHz or 100 kHz
tuning when pushed. (p. 00)
• Cancels a scan when pushed during scan.
➥ Starts scan when pushed for 1 sec. (p. 00)
D Microphone connector (front panel view)
q +8 V DC output (Max. 10 mA)
w Channel up/down
e 8 V control IN
r PTT
q i
t GND (microphone ground)
y MIC (microphone input)
u GND
i Data IN
