Icom IC-V8000 Instruction Manual page 33

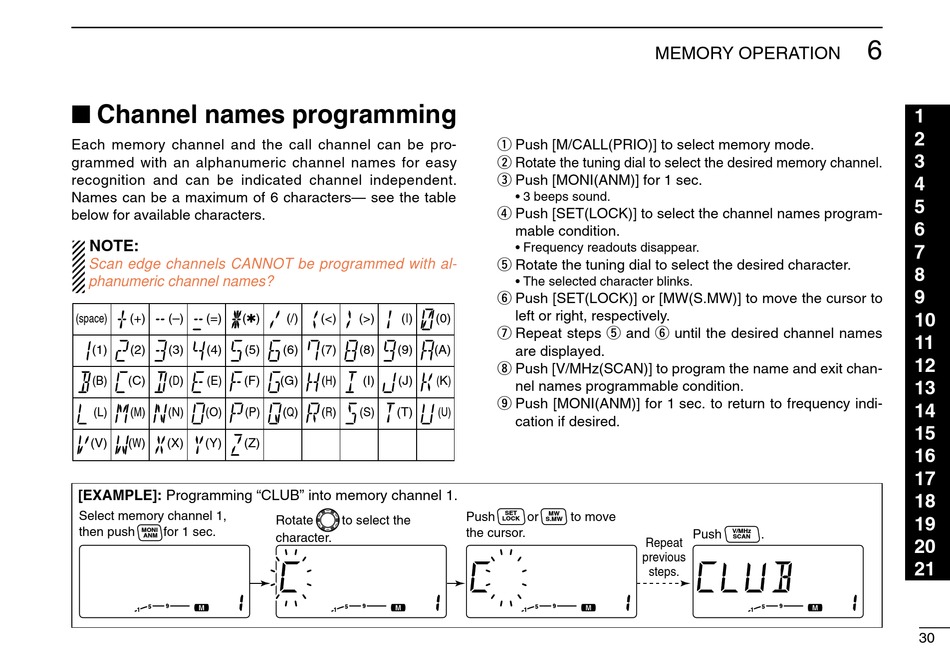

I Channel names programming
Each memory channel and the call channel can be pro-
grammed with an alphanumeric channel names for easy
recognition and can be indicated channel independent.
Names can be a maximum of 6 characters— see the table
below for available characters.
NOTE:
Scan edge channels CANNOT be programmed with al-
phanumeric channel names?
(space) (+) (–) (=) (✱)
(1) (2) (3) (4) (5)
(B) (C) (D) (E) (F)
(L) (M) (N) (O) (P)
(V) (W) (X) (Y) (Z)
[EXAMPLE]: Programming "CLUB" into memory channel 1.
Select memory channel 1,
then push for 1 sec.
MONI
ANM
(/) (<) (>) (|) (0)
(6) (7) (8) (9) (A)
(G) (H) (I) (J) (K)
(Q) (R) (S) (T) (U)
Rotate to select the
character.
q Push [M/CALL(PRIO)] to select memory mode.
w Rotate the tuning dial to select the desired memory channel.
e Push [MONI(ANM)] for 1 sec.
• 3 beeps sound.
r Push [SET(LOCK)] to select the channel names program-
mable condition.
• Frequency readouts disappear.
t Rotate the tuning dial to select the desired character.
• The selected character blinks.
y Push [SET(LOCK)] or [MW(S.MW)] to move the cursor to
left or right, respectively.
u Repeat steps t and y until the desired channel names
are displayed.
i Push [V/MHz(SCAN)] to program the name and exit chan-
nel names programmable condition.
o Push [MONI(ANM)] for 1 sec. to return to frequency indi-
cation if desired.
SET MW
Push or to move
LOCK
S.MW
the cursor.
Repeat
previous
MEMORY OPERATION
Push V/MHz .
SCAN
steps.
6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
30
