Install the Telescopic Rail Runner on the Rack

Rack rail runners require a minimum of 48 cm and a maximum of 80 cm within the rack for installation.
1 Determine the location of the RMX on the rack:
 Allow for a 1U gap above and below the system for ventilation.
 Use the rack spacer (3) to predetermine its position on the rack post, making sure that the square
studs of the spacer fit into the rack post's square/rounded mounting holes. Mark the spacer's
location on the rack post. Repeat this process for the 3 remaining vertical posts ensuring that the
system can be horizontally seated.

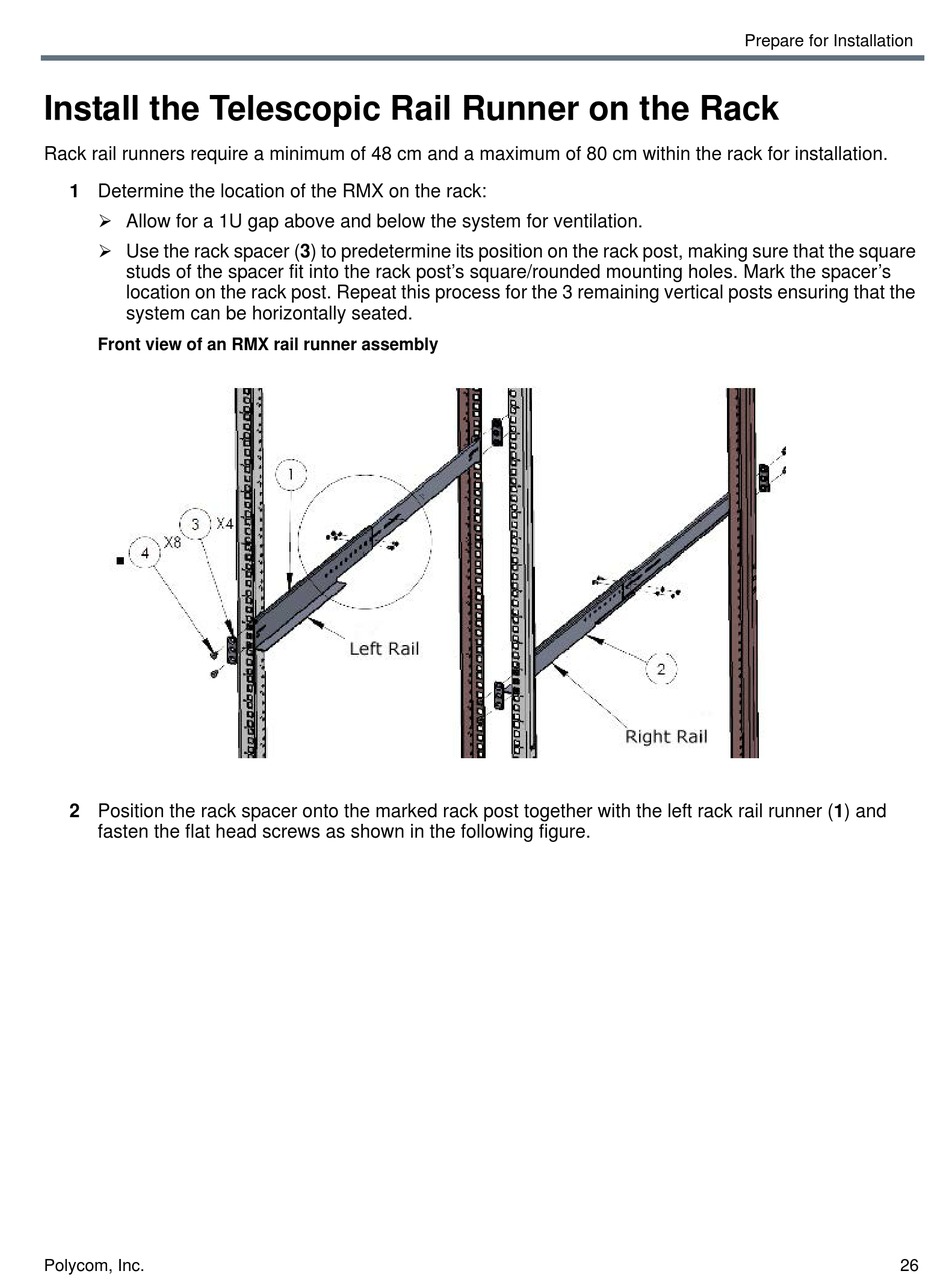

Front view of an RMX rail runner assembly
2 Position the rack spacer onto the marked rack post together with the left rack rail runner (1) and
fasten the flat head screws as shown in the following figure.
