RealPresence Collaboration Server (RMX) 2000 Components and Components Replacement

Install or Replace the RTM LAN

The RTM LAN card on the rear of the RMX 2000 provides connectivity to all the MCU modules. The RTM
LAN card must be seated opposite to an MPMRx card located in the top slots on the front of the RMX.

Remove the Blank Cover (for new installations)

For details, see Remove the Blank Cover from the Rear

Remove an Existing RTM LAN Card

Use the following procedure to remove the RTM LAN card from its slot (not required when installing a new
card).
To remove an existing RTM LAN card:
1 Ensure that the power switch/circuit switch on the RMX 2000 is turned OFF (O).
2 Remove the cables connected to the card.
3 Unscrew the captive screws on the rear panel of the RMX 2000 that secure the RTM LAN card.
4 Use the ejector levers to pull the card out of its slot.
5 Carefully slide the RTM LAN card out through the rear panel.

Insert the RTM LAN (with four LAN ports) to its Slot

Use the following procedure to insert the RTM LAN card into its slot (not required when installing a new
card).

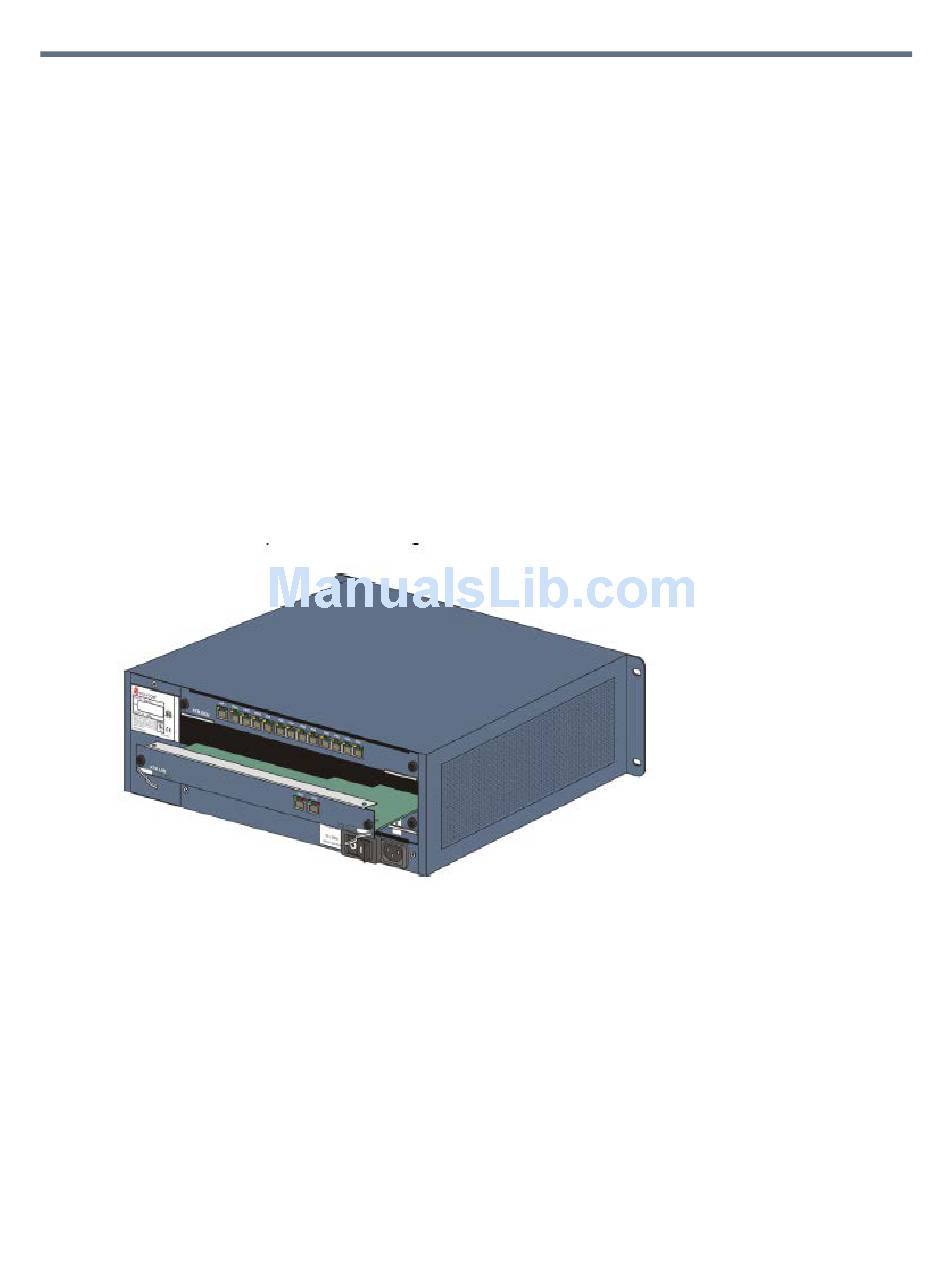

To install the RTM LAN card (with four LAN ports) into its slot:
1 On the card to be installed, move the ejector levers to their fully open position.
2 Slide in the replacement RTM LAN card.
Polycom, Inc.
Panel.
.
60
