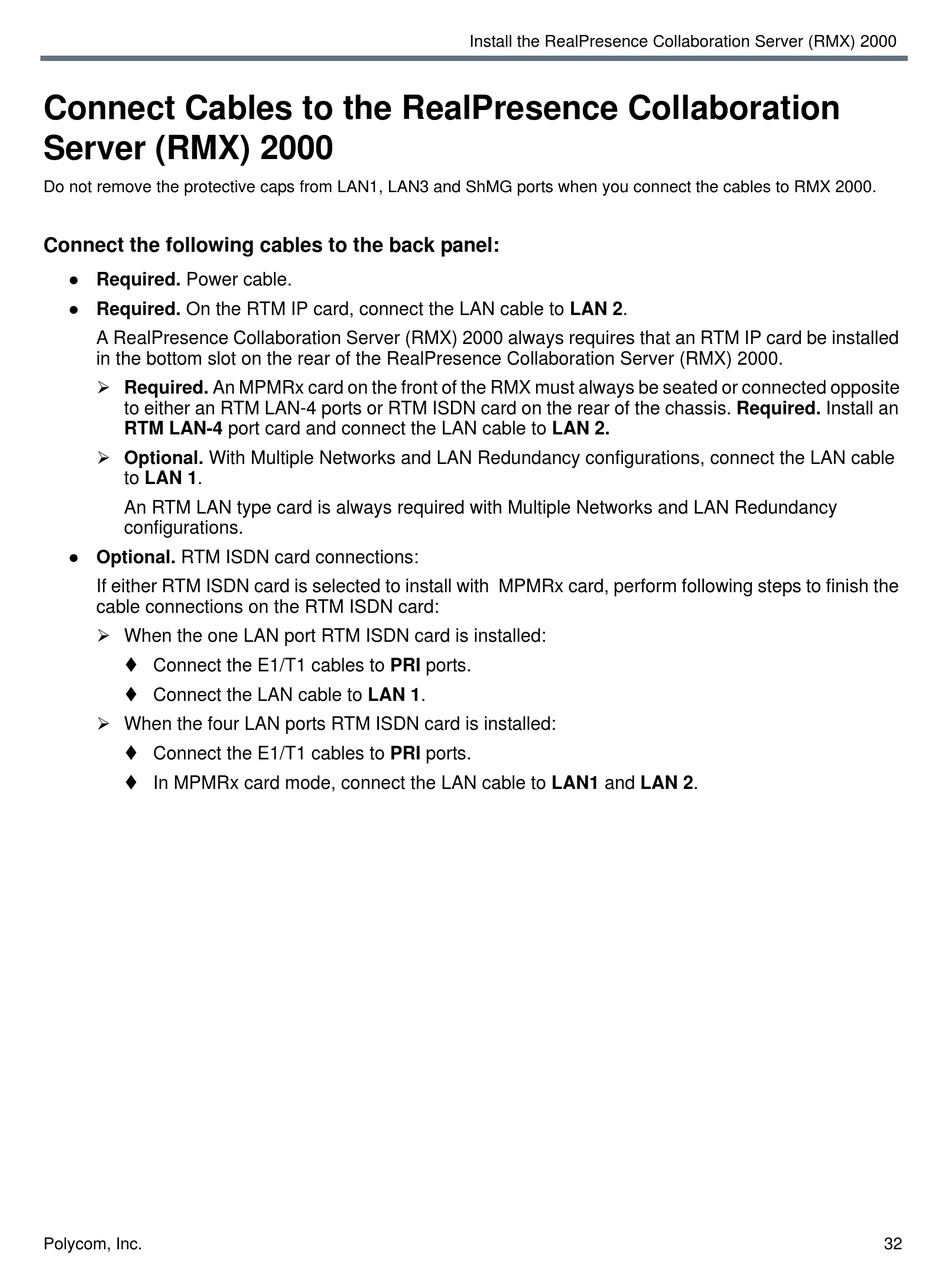

Connect Cables to the RealPresence Collaboration
Server (RMX) 2000
Do not remove the protective caps from LAN1, LAN3 and ShMG ports when you connect the cables to RMX 2000.
Connect the following cables to the back panel:
● Required. Power cable.
● Required. On the RTM IP card, connect the LAN cable to LAN 2.
A RealPresence Collaboration Server (RMX) 2000 always requires that an RTM IP card be installed
in the bottom slot on the rear of the RealPresence Collaboration Server (RMX) 2000.
 Required. An MPMRx card on the front of the RMX must always be seated or connected opposite
to either an RTM LAN-4 ports or RTM ISDN card on the rear of the chassis. Required. Install an
RTM LAN-4 port card and connect the LAN cable to LAN 2.
 Optional. With Multiple Networks and LAN Redundancy configurations, connect the LAN cable
to LAN 1.
An RTM LAN type card is always required with Multiple Networks and LAN Redundancy
configurations.
● Optional. RTM ISDN card connections:
If either RTM ISDN card is selected to install with MPMRx card, perform following steps to finish the
cable connections on the RTM ISDN card:
 When the one LAN port RTM ISDN card is installed:
 Connect the E1/T1 cables to PRI ports.
 Connect the LAN cable to LAN 1.
 When the four LAN ports RTM ISDN card is installed:
 Connect the E1/T1 cables to PRI ports.
 In MPMRx card mode, connect the LAN cable to LAN1 and LAN 2.
