2. Check the Enable checkbox to enable the function.
3. Select the Region from the drop-down list for detection settings.
4. Click Area Settings and click Draw Area button to start the area drawing.
5. Click on the live video to specify the four vertexes of the detection region, and right
click to complete drawing.
6. Click-and-drag the slider to set the detection sensitivity.
Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the object
which can trigger the alarm. When the sensitivity is high, a very small object entering
the region can trigger the alarm.
7. Repeat the above steps to configure other regions. Up to 4 regions can be set. You can
click the Clear button to clear all pre-defined regions.
8. Click Arming Schedule to set the arming schedule.
9. Click Linkage Method to select the linkage methods.
Network Camera User Manual

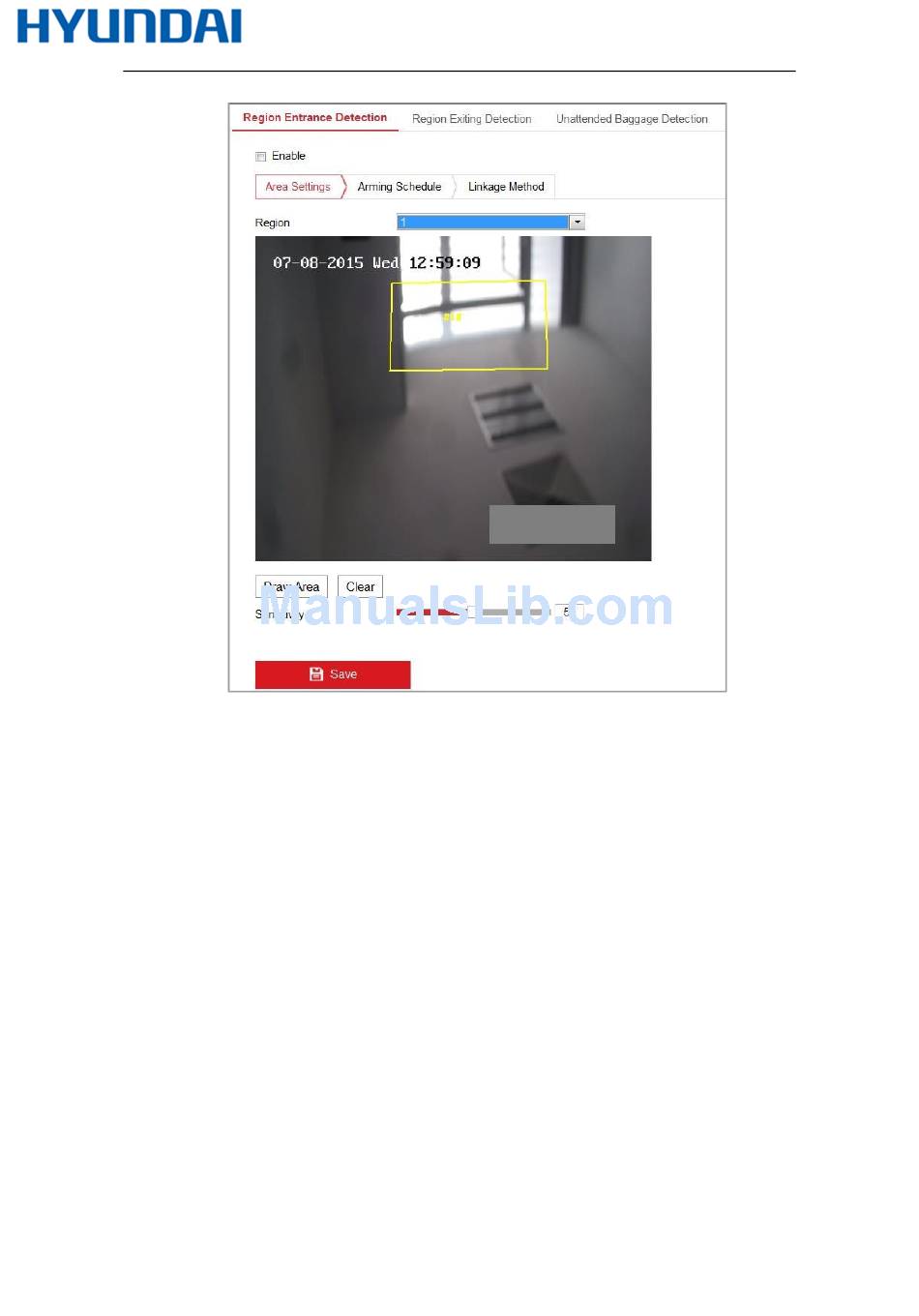

Figure 10-22 Region Entrance Detection
