8 Make sure that the grounding conductor is
connected to the motor and also to the terminals
that are identified with
a) To obey the requirements of the standard
EN61800-5-1, obey the instructions in chapter
2.4 Grounding and earth fault protection.
A

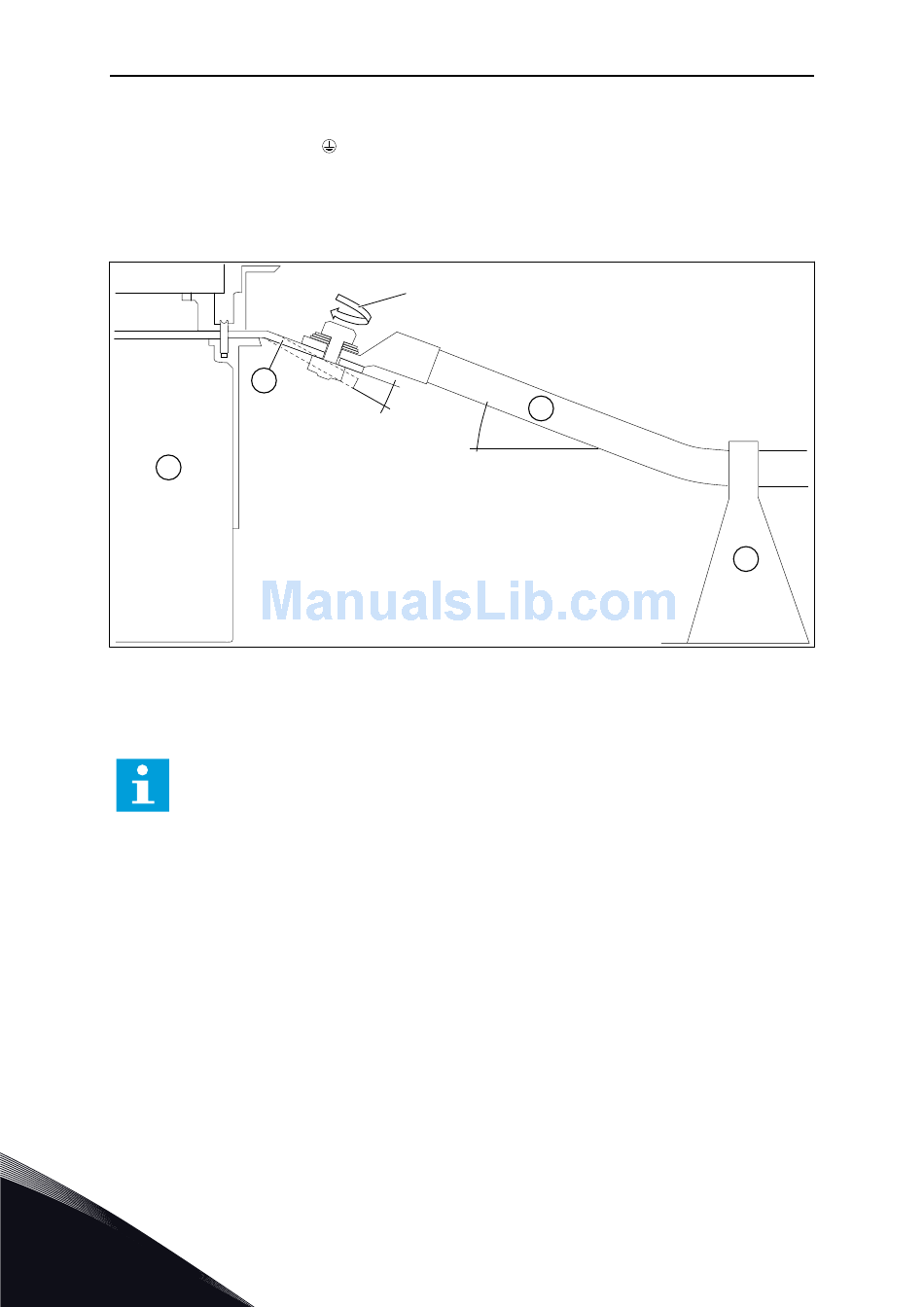

Fig. 24: Mechanical support for cables when the drive does not have the options module
A. The AC drive
B. The connection busbar. Terminals L1,
L2, L3, U/T1, V/T2, W/T3.
NOTE!
You must make sure that creepage and air distances are sufficient in your
installation and that they agree with the local regulations.
6
.
Max. 70 Nm (620 lb-in)
B
+/-5°
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
C
20°
C. The power cable
D. The cable support
POWER CABLING
D
