INSTALLATION INTO CABINET
Table 9: The dimensions of the opening for the flange mounting
Enclosure
A [mm]
size
MR8 859
MR9 975
MR10 960
D

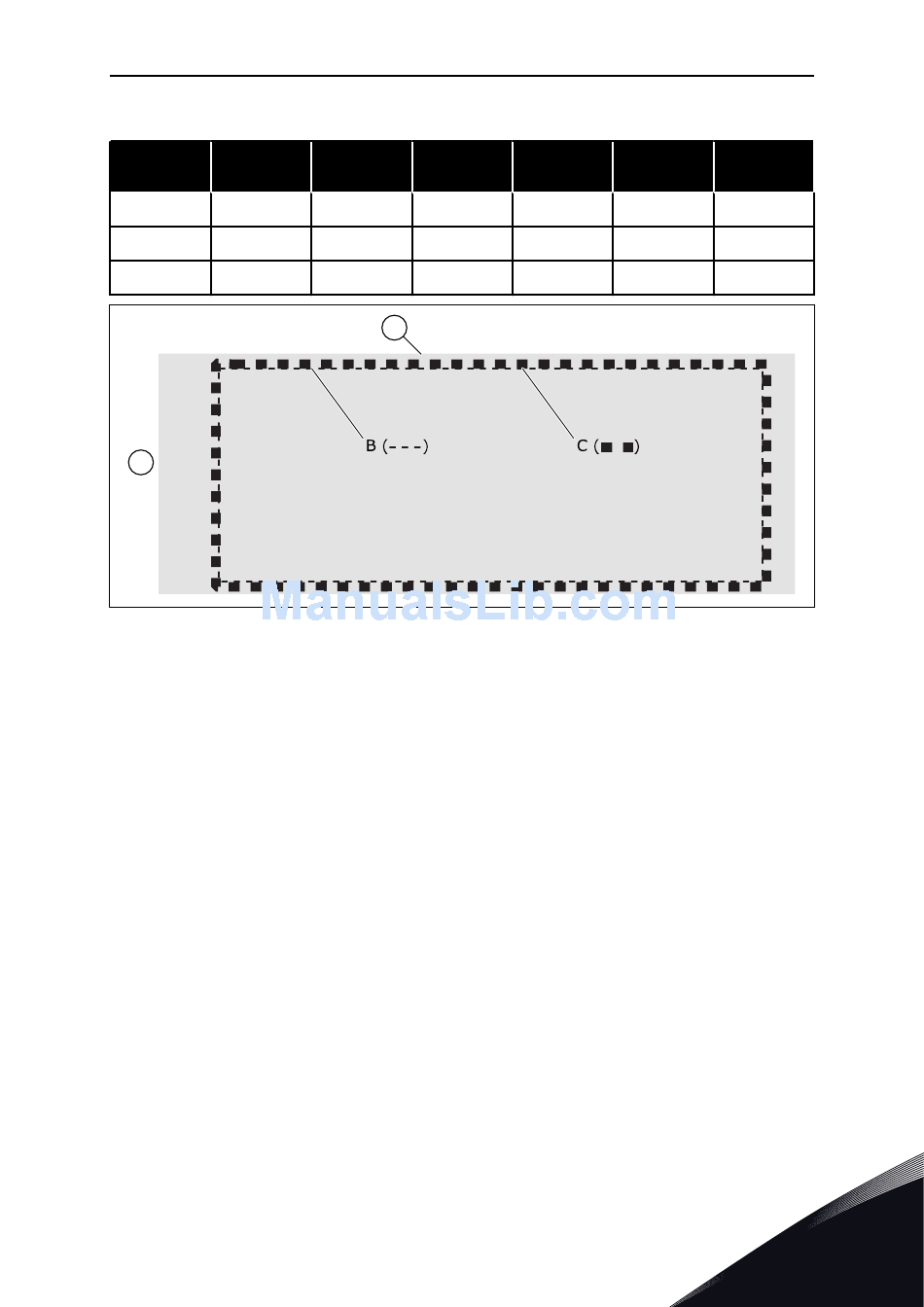

Fig. 20: Sealing of the opening for MR8, MR9, and MR10
A. The AC drive
B. The outline of the opening
5.2.3

INSTALLING A DETACHED CONTROL UNIT

Use the installation kit for a detached control unit (ENC-QCDU) with MR10 and MR12 to
install the control unit separate from the power unit. The control unit must be installed in an
enclosure that is similar to the one where the power unit is installed.
The installation kit includes these components:
assembly plate
•
side plate
•
2-meter cable
•
screws
•
See dimensions in Fig. 11.
THE INSTALLATION PROCEDURE
1 Attach the cable to the assembly plate. Make sure
that you connect the cable so that the cable points
to the edge.
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
B [mm] E [mm]
298 18
485 54
510 122
A
C. Gasket tape
D. The top of the drive
A [in] B [in]
33.8 11.7
38.4 19.1
37.8 20.1
VACON · 41
E [in]
0.7
2.1
4.8
