VACON · 26 MOUNTING DIMENSIONS
4.5

DIMENSIONS FOR FLANGE MOUNTING OF MR9

163
56 (2.20)
(6.42)
1039 (40.90)
85
(3.35)
75 (2.95)
300 (11.81)
300 (11.81)
10.5
10.5 (0.41)
(0.41)
M8
GND
102 (4.02)
397.5 (15.65)
1060 (41.73)
210 (8.27) 108.5 (4.27)

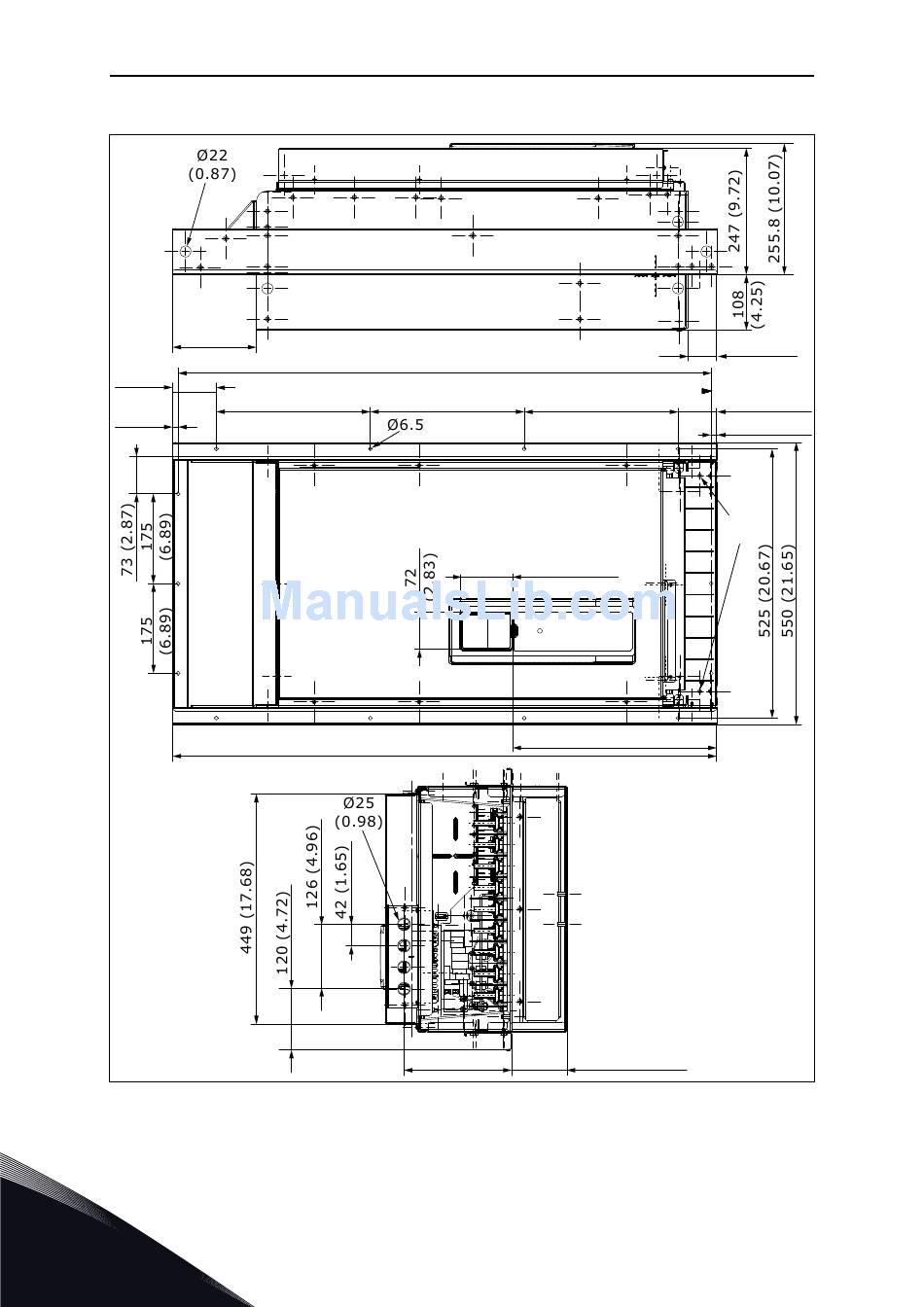

Fig. 8: The dimensions of the AC drive, flange mounting, MR9 [mm (in)]
