INSTALLATION INTO CABINET

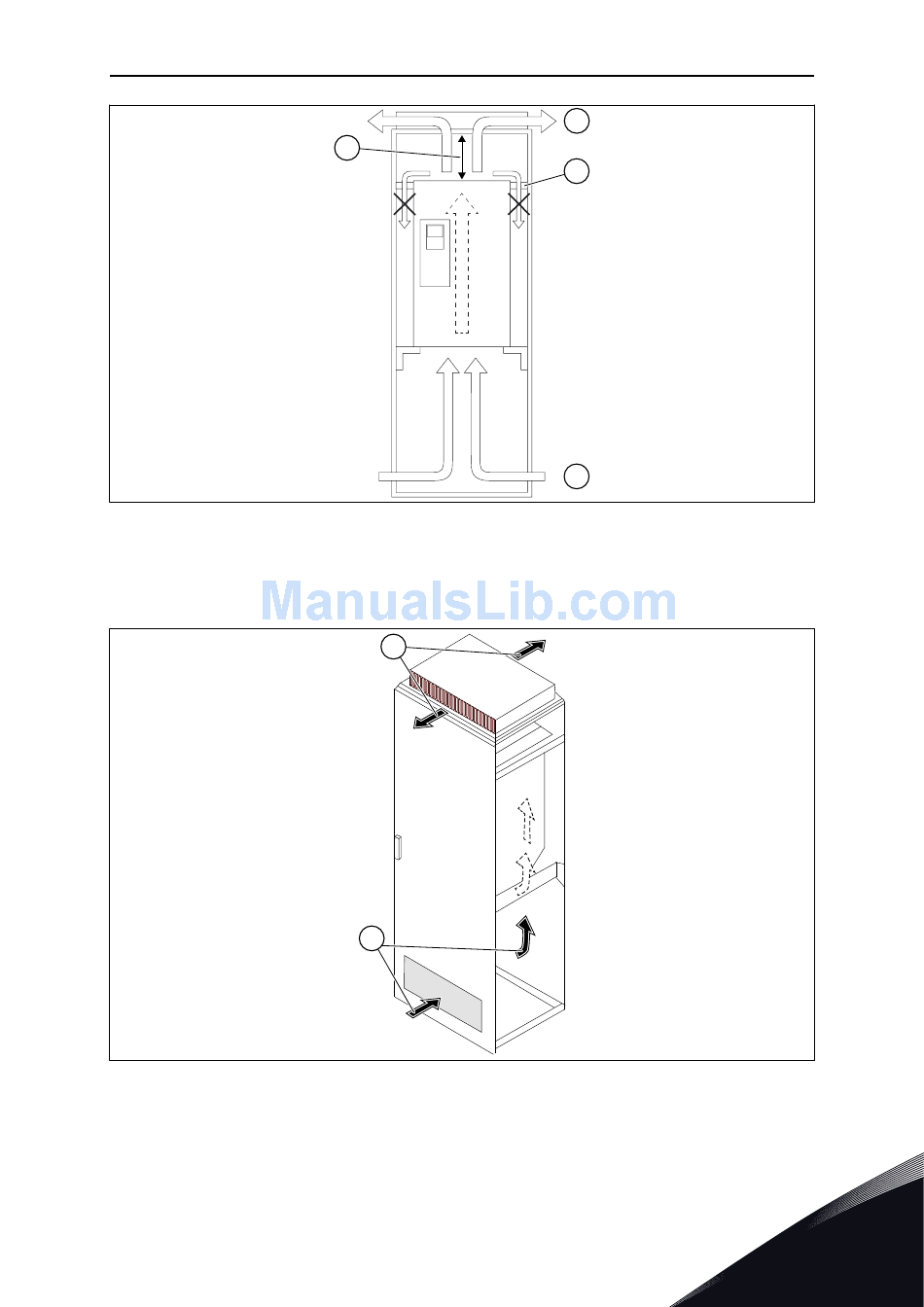

Fig. 21: The correct circulation of cooling air inside the cabinet
A. Cool air going in
B. Hot air coming out
C. Install shields to prevent recirculation of
hot air inside the cabinet.
Fig. 22: The cooling air must move freely inside the cabinet
A. Cool air going in
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
D
D. Minimum 200 mm (7.87 in)
B
A
B. Hot air coming out
B
C
A
VACON · 43
