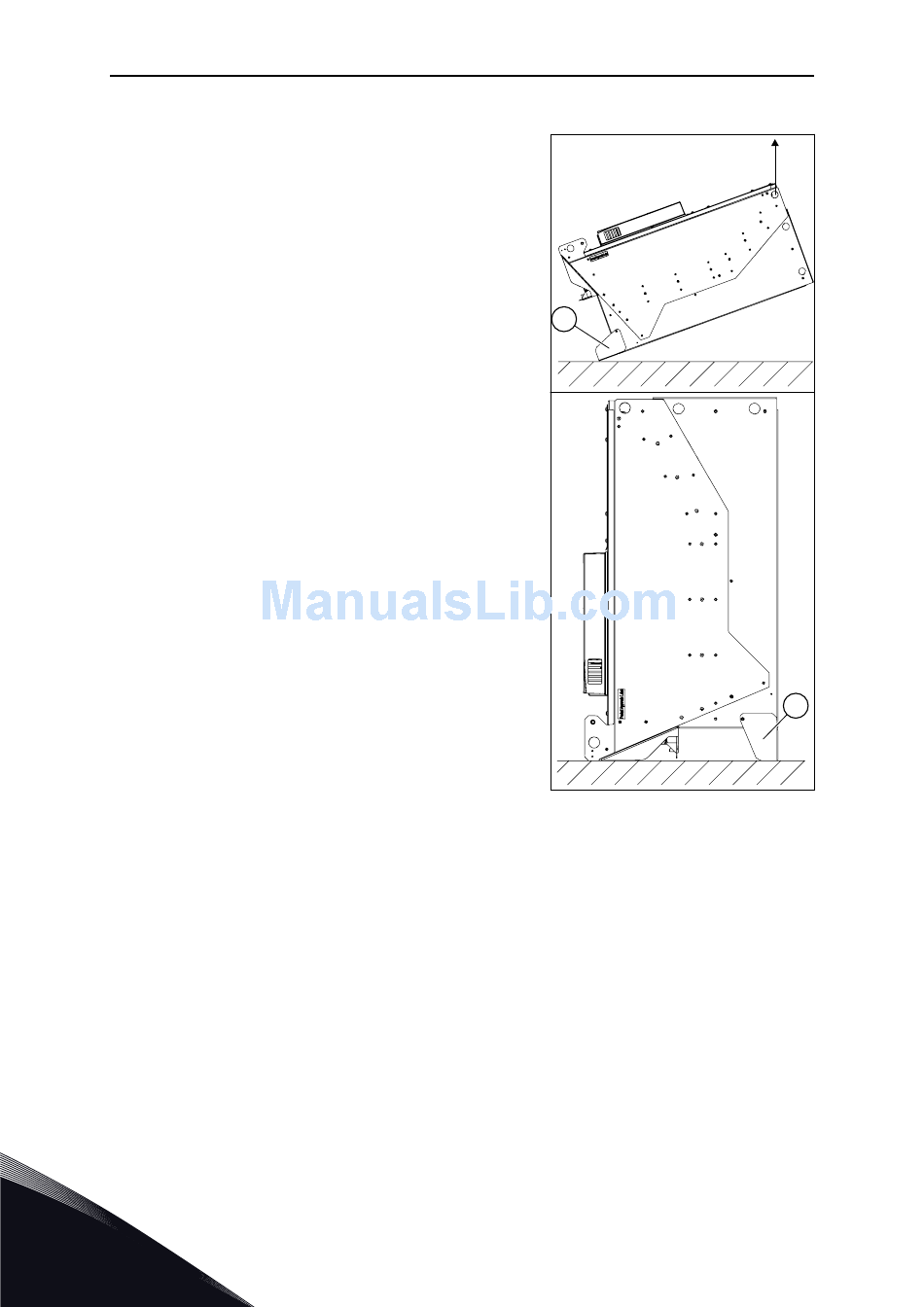

LIFTING THE IP00 DRIVE MODULE, MR10 OR MR12 WITHOUT THE OPTIONS MODULE
1 Make sure that the support is attached to the
bottom of the drive. It gives the terminals
protection when you lift the drive or put it vertically
on the floor.
2 Lift the drive with a lifting device. Put the lifting
hooks in the holes on the top of the cabinet. The
maximum lifting angle is 60 degrees.
3 After the lifting, you can remove the support if
necessary. You can also use it as a fixing bracket.
LIFTING THE IP00 DRIVE MODULE, MR10 OR MR12 WITH AN OPTIONS MODULE
1 Remove the drive from the package.
2 Use a lifting device that is sufficiently strong for the
weight of the drive.
3 Put the lifting hooks in the holes on the top of the
cabinet.
3
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
RECEIVING THE DELIVERY
A
A. The support / fixing bracket
A
