Vacon 100 Flow Installation Manual page 29

MOUNTING DIMENSIONS

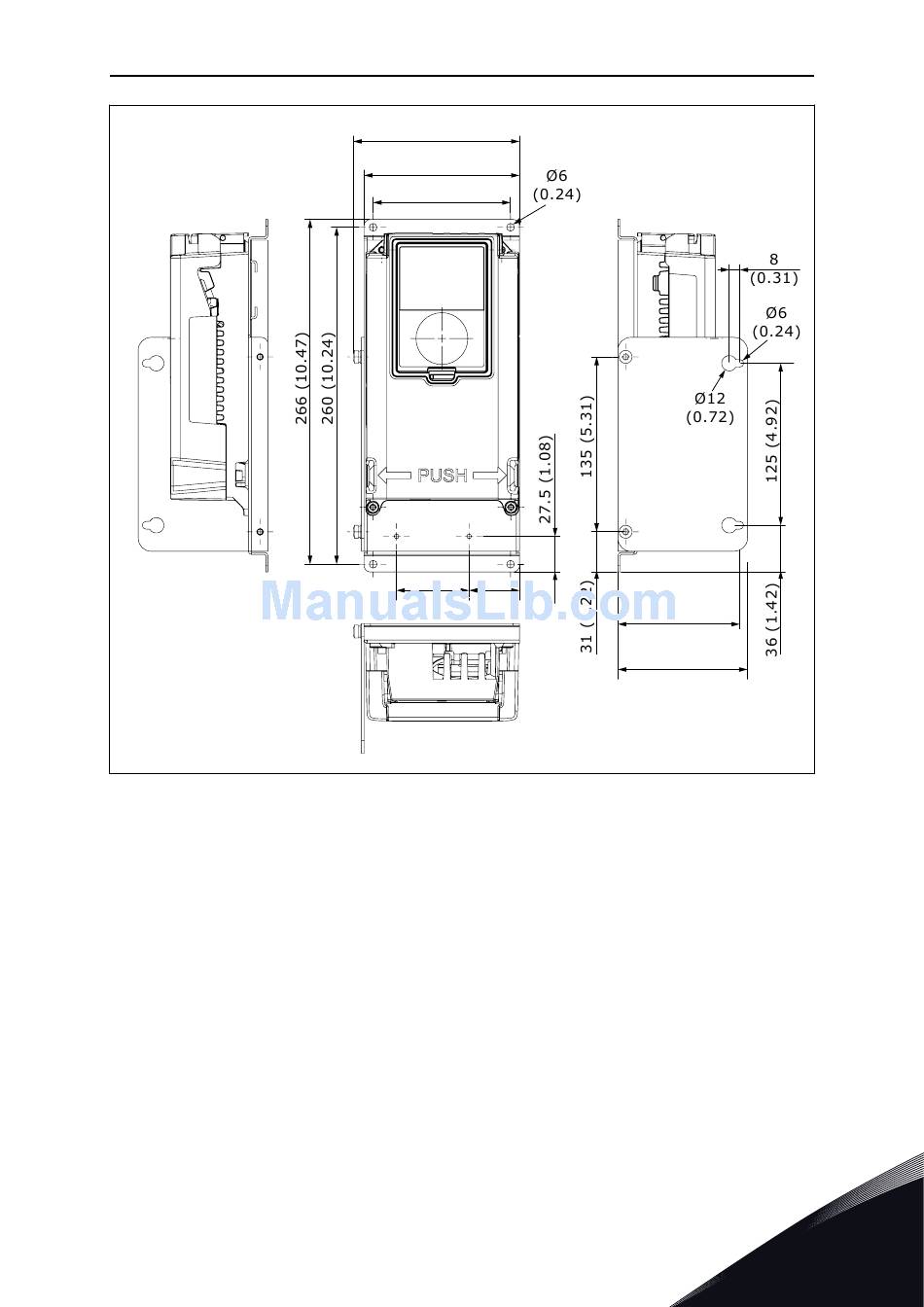

Fig. 11: Dimensions of the installation kit for a detached control unit (ENC-QCDU) [mm (in)]
LOCAL CONTACTS: HTTP://DRIVES.DANFOSS.COM/DANFOSS-DRIVES/LOCAL-CONTACTS/
128 (5.04)
120 (4.72)
106 (4.17)
56 39
(2.20) (1.54)
VACON · 29
94
(3.70)
100
(3.94)
4
