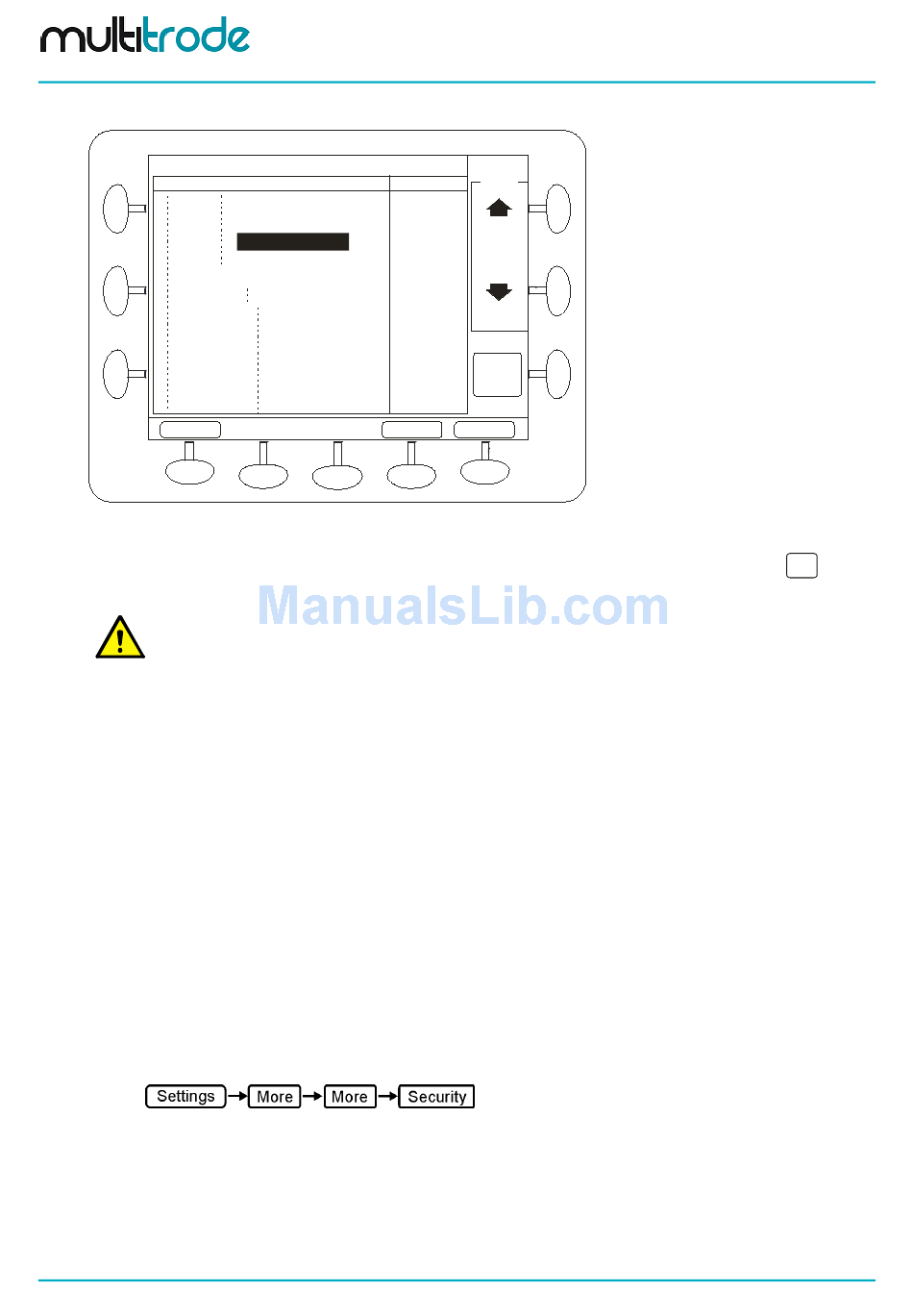

Figure 90 – Tag browser screen –continued.
Once you have found the Digital Input (DIN) you are looking for, expand the selection using the
and scroll down to ValueDigital and press OK.
NOTE: The tag browser gives you access to any tag in the MultiSmart unit, including tags generated by
the logic engine.

11.2 Security Key Setup

The Security (or Dallas) key allows a quick and easy method of accessing the MultiSmart whilst maintaining
a high level of security, as only those users with a Security key (in which the Administrator has registered the
PIN) can gain access the MultiSmart menus.
The Security key module is a separate software module which can be enabled after purchase.
11.2.1 Initial Hardware Setup
To enable the Security key reader:
•
If not purchased with the MultiSmart, enter the new Site Key provided by MultiTrode (See Section
9.2.1 for procedure).
•
Connect the Security key reader to the iButton port.
11.2.2 Adding Security Key Users
The Administrator must now create a user that matches the PIN of the Security key. This procedure differs
slightly compared to a PIN only user as PIN details are automatically entered.
•
Navigate to the Security screen
•
Enter the MultiSmart Administrator password
•
Press the Add / Remove Users button
•
With the Edit User Details screen displayed, place a security key on the reader until the PIN is
displayed on the screen. Then add other user details including User ID, User Name and Group.
•
Press Back and Save.
