5.4.3.1 Power & Efficiency
This screen shows the power factor and efficiency of the pumps. Efficiency, energy and apparent energy of
the present day, yesterday, this week, last week, this month, last month and totals are displayed on this
screen. There is also a Benchmark Efficiency (further down the screen) which can be entered as a
comparison value (see section 17.1).
Navigate to:

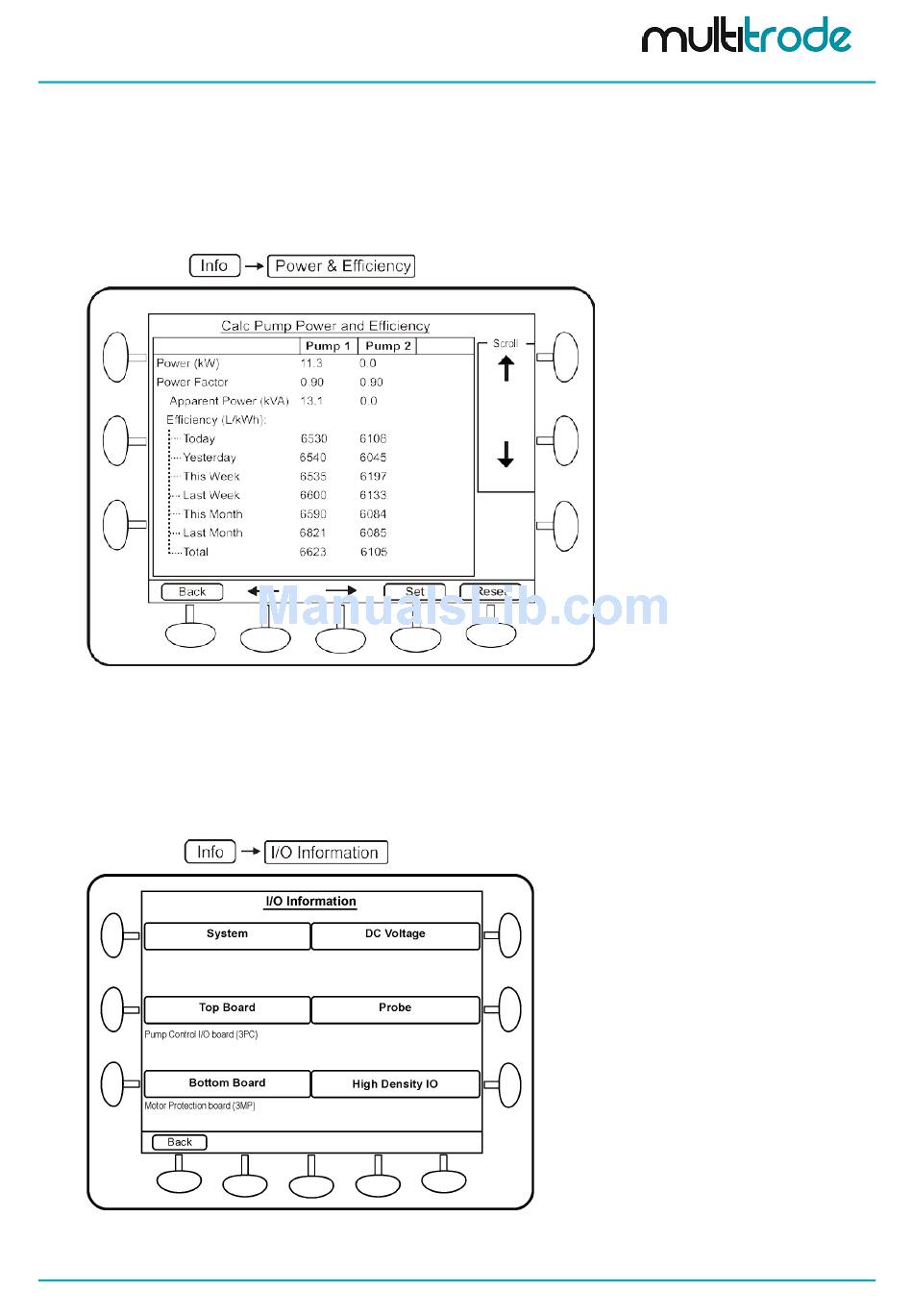

Figure 9 – Power Efficiency Screen
5.4.3.2 I/O Information
Information about the System, DC Voltage, Top Board, Bottom Board and Probe can be seen in this screen.
The I/O information screens are especially useful in troubleshooting input/output related issues. Insulation
Resistance test (IRT) can be accessed from within the I/O information screen, (the test is only performed
when the pumps are not running).
Navigate to:
Figure 10 – I/O Information Screen
