To determine the configuration and current state of the digital inputs, navigate to the I/O Information: Digital
Inputs screen.
The current state of a digital input is displayed on the top line: Value.
Press the Advanced button to display configuration information on the digital inputs, for example Mode and
Sensitivity.
The resistance as measured by the input is also displayed in Advanced mode.
resistance is below the Sensitivity, then the input turns on (unless it is inverted, in which case the reverse is
true).
NOTE:
The Sensitivity used by the probe (default of 22k ohms, Section 14.8.3) is not the same Sensitivity found
in the digital inputs advanced options.

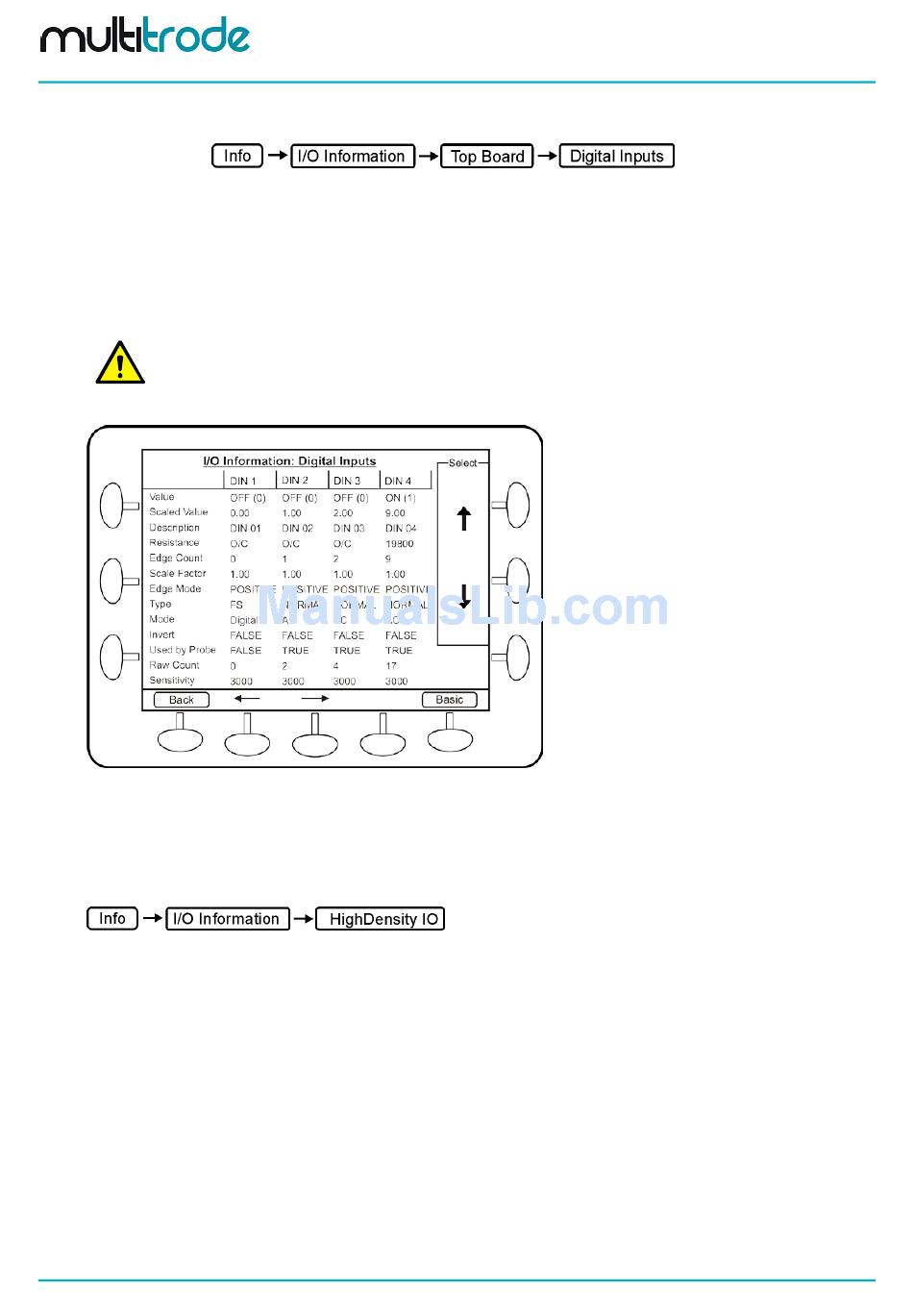

Figure 11 – Digital Inputs Information Screen
High Density IO info page screens display the state of all digital inputs/outputs on one page for one
unit/board at a time. The unit name and board name are displayed at the top. By pressing the Next/Prev
button, the I/O for the next/previous unit/board can be viewed.
To determine the current state of all digital inputs/outputs, navigate to the I/O Information: High Density IO
