17.1 Setting Motor Protection Values

Motor Protection configuration is accessed by navigating to:

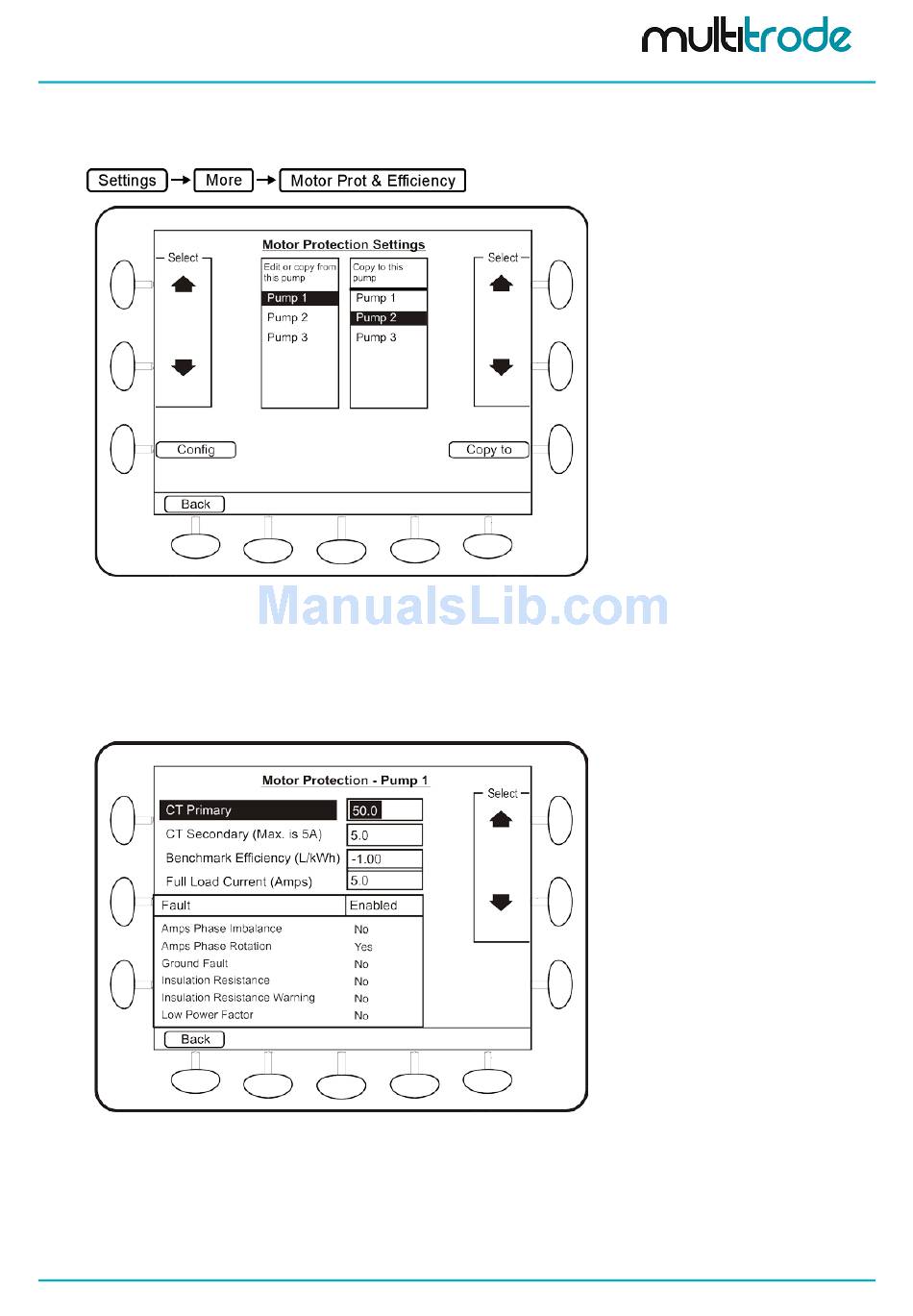

Figure 138 – Motor Protection Settings Screen
This screen can be used to copy motor protection settings from one pump to another. This speeds up the
configuration process if all the pumps in a well are the same. Simply configure the first pump and then copy
the configuration to the others using the Copy to button.
To edit motor protection settings, select a pump in the left hand column and press the Config button.
Figure 139 – Motor Protection Settings for an Individual Pump.
