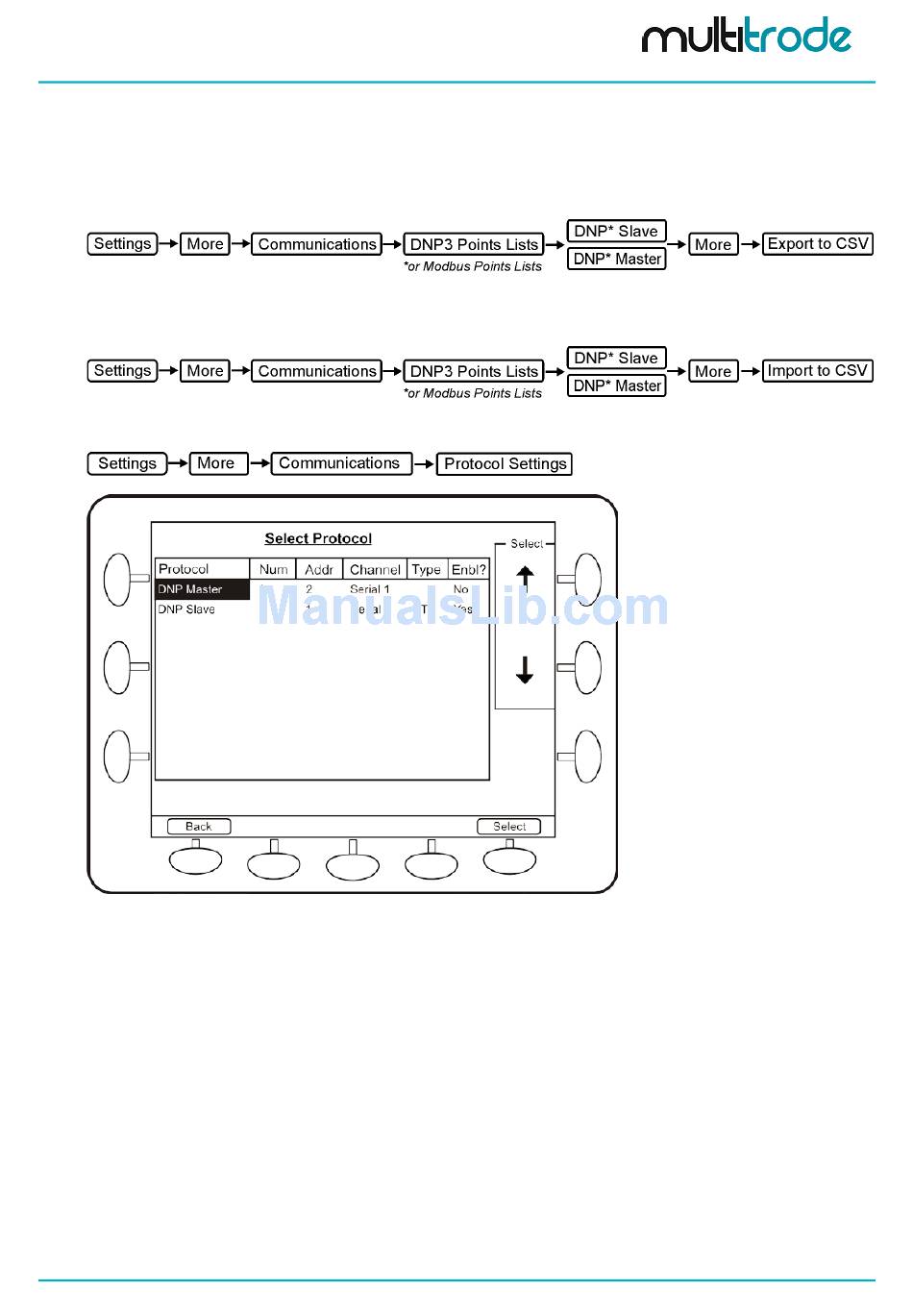

22.2.4 Exporting and Importing DNP3 / MODBUS Points List
MultiSmart can export DNP and MODBUS 'Slave' or 'Master Slave' points list to an SD card / USB or saved
to the /tmp directory where it can be copied from the unit using FTP.
The DNP slave and MODBUS slave points list can be edited and imported back into the unit using the Import
CSV option in MultiSmart. The corresponding options can be accessed by browsing through the following
menu.
22.2.5 Protocol Settings
Figure 159 – Protocol Settings
In this menu, we can see the list of all DNP & MODBUS, Master/s and Slave/s configured in the MultiSmart
unit. The menu also shows the master/slave number, master/slave address, communication channel and the
type of the communication link. Most of the common settings can be accessed from this menu. However, if
further advanced settings are to be configured, you will need to navigate to the Advanced menu.
To edit the settings of a particular master or slave, select the item in the list and press Select.
Once you are in this menu, input the new values using the keypad or use the Toggle button to cycle through
the options. When the changes have been applied, press the Save button for them to be written to the
configuration files. Most of the communication settings changes need a restart of the unit in order to come
into effect. Press the Channel button to view and edit the channel settings and press the IP Address
wherever applicable while configuring the communication over TCP/IP to change the IP Address and the port
used.
