14.10

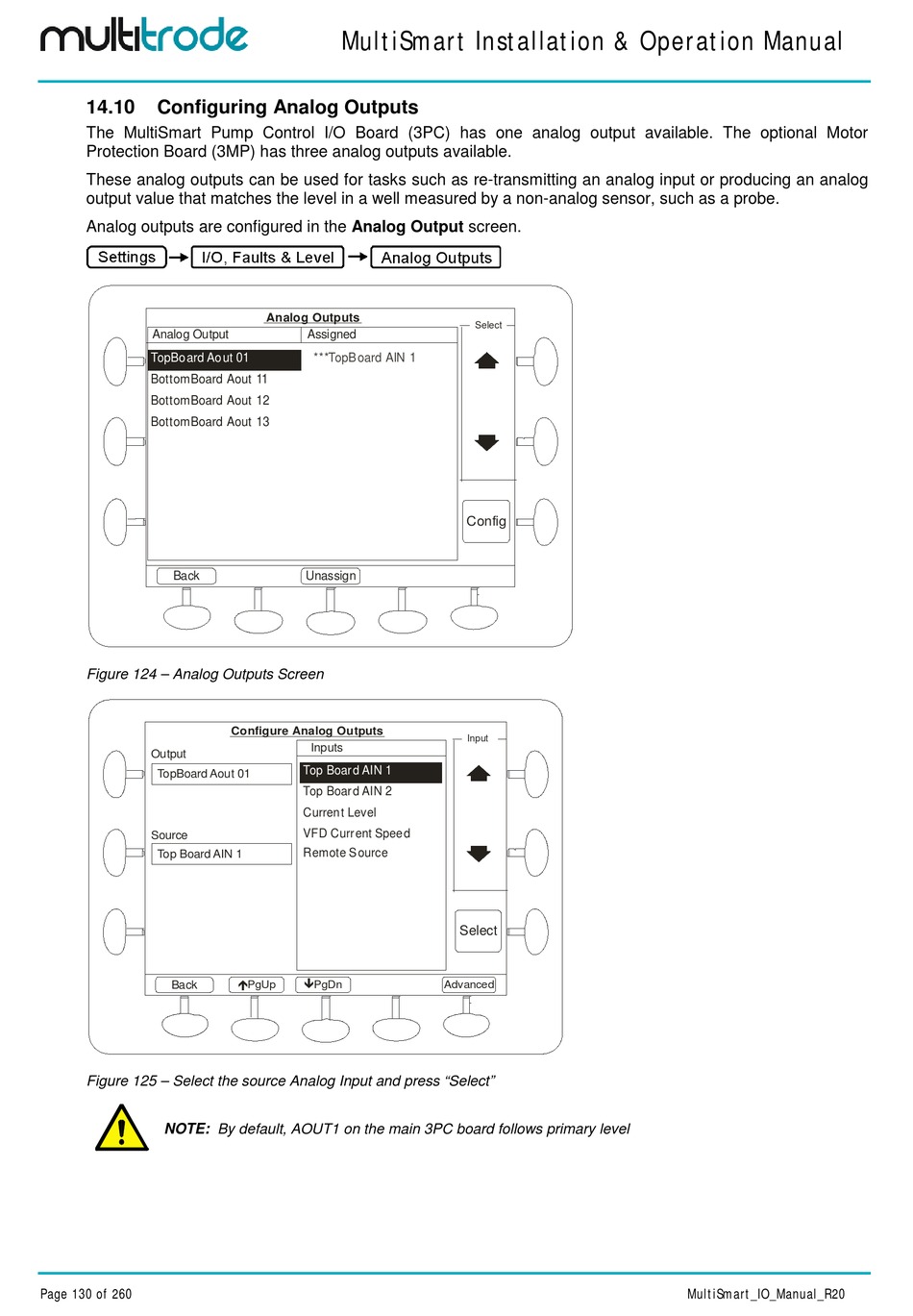

Configuring Analog Outputs

The MultiSmart Pump Control I/O Board (3PC) has one analog output available. The optional Motor
Protection Board (3MP) has three analog outputs available.
These analog outputs can be used for tasks such as re-transmitting an analog input or producing an analog
output value that matches the level in a well measured by a non-analog sensor, such as a probe.
Analog outputs are configured in the Analog Output screen.
Analog Output
TopBo ard Ao ut 01
BottomBoard Aout 11
BottomBoard Aout 12
BottomBoard Aout 13
Back
Figure 124 – Analog Outputs Screen
Output
TopBoard Aout 01
Source
Top Board AIN 1
Back
Figure 125 – Select the source Analog Input and press "Select"
NOTE: By default, AOUT1 on the main 3PC board follows primary level
Page 130 of 260
MultiSmart Installation & Operation Manual
Analog Outputs
Assigned
***TopB oard AIN 1
Unassign
Configure Analog Outputs
Inputs
Top Boar d AIN 1
Top Boar d AIN 2
Curren t Level
VFD Curr ent Spee d
Remote S ource
PgUp
PgDn
Select
Config
Input
Select
Advanced
MultiSmart_IO_Manual_R20
